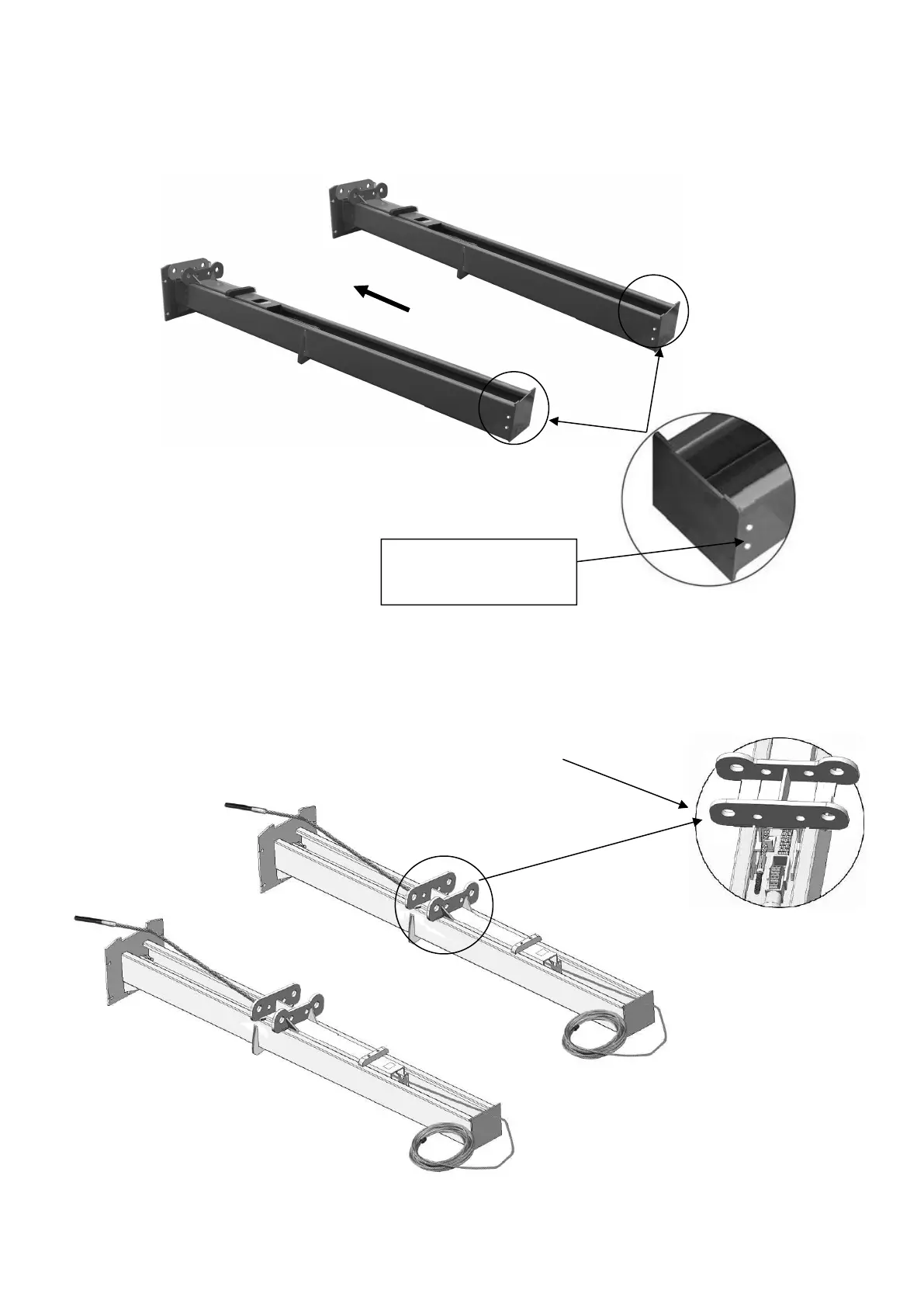

Lay down two columns on the installation site parallelly, position the powerside
column according to the actual installation site and install top plate, top connecting
plate assy. Usually, it is suggested to install powerside column on the front-right side
from which vehicles are driven to the lift (See Fig. 12).
1
．
Put down columns and then push the carriages higher than chain pulley (See Fig. 13).
2．Install cable (See Fig. 14).
Install top plate with
M12*30 hex bolt, nut
and lock washer
B, Push the carriages higher than chain
pulley, cable pass through the top of the
carriages and pass through the hole of the
bottom steel plate of the carriages
A, Cable passes into the carriage
