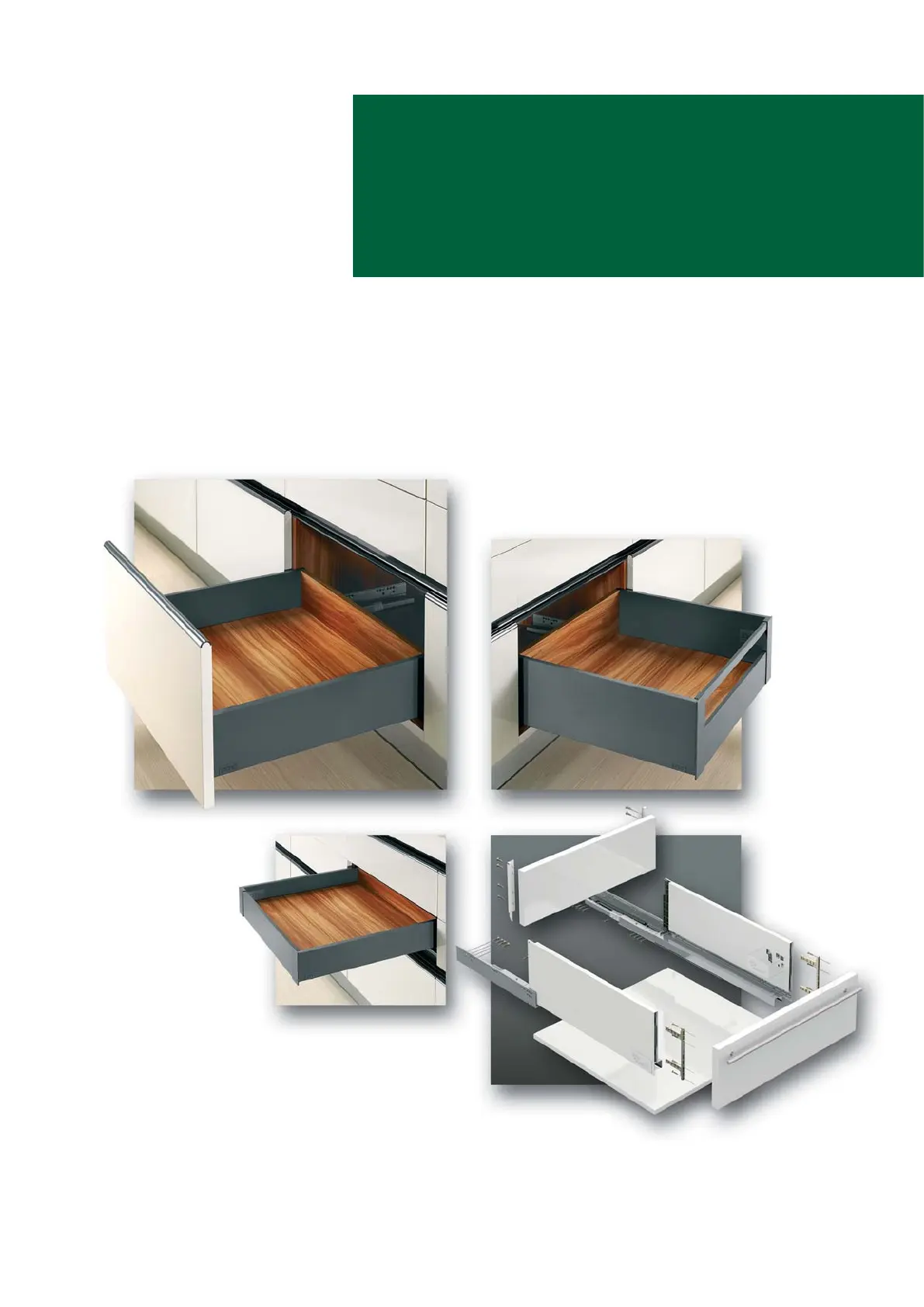

The document describes the AMIX SB - System Box and SB HE - Slim Box drawer systems, which are furniture accessories designed for various drawer configurations. These systems offer full extension, silent closing, and 3D adjustment capabilities, making them suitable for modern furniture applications.

Function Description

The AMIX SB and SB HE drawer systems are designed to provide smooth and quiet operation for drawers in various furniture pieces. They are available in different heights (low, medium, high, and corresponding inner drawers) and are compatible with both standard and push-open mechanisms. The "Slim Box" designation indicates a sleek, narrow drawer side profile, which is a popular aesthetic in contemporary furniture design.

The core function of these systems is to facilitate the opening and closing of drawers with minimal effort and noise. The full extension feature allows complete access to the contents of the drawer, while the silent closing mechanism prevents slamming and ensures a gentle, controlled closure. The push-open variant offers a handle-less design, where a gentle push on the drawer front activates the opening mechanism.

The systems are designed for easy assembly and adjustment, catering to both professional furniture manufacturers and DIY enthusiasts. They support various drawer back and bottom materials, including wood and steel, providing flexibility in design and construction.

Important Technical Specifications

The technical specifications highlight the robust and adjustable nature of the AMIX SB and SB HE systems:

General Specifications:

Full Extension: Ensures complete access to drawer contents.
Silent System: Guarantees smooth and quiet operation.
Dynamic Load Capacity:
- SB - Slim Box: 40 kg
- SB HE - Slim Box: 30 kg
Finish: Available in white and anthracite.

3D Adjustment:

Vertical Adjustment: ± 2 mm (up & down).
Horizontal Adjustment: ± 1.5 mm (left & right).
Tilt Adjustment: +1.5-2.5 mm (for SB - Slim Box only, using an M3 Allen key).

Drawer Heights and Corresponding Required Space (NL: Nominal Length, LT: Internal Cabinet Depth):

SB - Slim Box:

Low Drawer (SB11/SB41):
- Required space: 106 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 51 mm)
- Tył / Back height: 39 mm
Low Inner Drawer (SB11 SW/SB41 SW):
- Required space: 106 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 51 mm)
- Tył / Back height: 63 mm
- Front section cutting: LW - 97 mm
Medium Drawer (SB12/SB42):
- Required space: 144 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 51 mm)
- Tył / Back height: 101 mm
Medium Inner Drawer (SB12 SW/SB42 SW):
- Required space: 144 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 51 mm)
- Tył / Back height: 148 mm
- Front section cutting: LW - 97 mm
High Drawer (SB13/SB43):
- Required space: 193 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 51 mm)
- Tył / Back height: 148 mm
High Inner Drawer (SB13 SW/SB43 SW):
- Required space: 193 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 51 mm)
- Tył / Back height: 148 mm
- Front section cutting: LW - 97 mm
- Square cross rail cutting: LW - 72 mm
High Drawer (SB14/SB44):
- Required space: 257 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 51 mm)
- Tył / Back height: 212 mm

SB HE - Slim Box:

Low Drawer (SB11-HE/SB41-HE):
- Required space: 115 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 61 mm)
- Tył / Back height: 63 mm
Low Inner Drawer (SB11-HE SW/SB41-HE SW):
- Required space: 115 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 61 mm)
- Tył / Back height: 63 mm
- Front section cutting: LW - 97 mm
Medium Drawer (SB12-HE/SB42-HE):
- Required space: 153 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 61 mm)
- Tył / Back height: 101 mm
Medium Inner Drawer (SB12-HE SW/SB42-HE SW):
- Required space: 153 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 61 mm)
- Tył / Back height: 101 mm
- Front section cutting: LW - 97 mm
High Drawer (SB13-HE/SB43-HE):
- Required space: 202 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 61 mm)
- Tył / Back height: 148 mm
High Inner Drawer (SB13-HE SW/SB43-HE SW):
- Required space: 202 mm
- Kit packages available for NL: 270mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm.
- Drawer back width: LW - (40) mm
- Drawer bottom width: LW - (19) mm
- Drawer front height: 32 mm (min 61 mm)
- Tył / Back height: 148 mm
- Front section cutting: LW - 97 mm
- Square cross rail cutting: LW - 72 mm

Cabinet Configuration (KB: Cabinet Width, LW: Internal Cabinet Width):

Supported cabinet widths (KB): 300, 350, 400, 450, 500, 600, 800, 900, 1000, 1200 mm.
Stabilizer or push-open synchronization device recommended for cabinet widths 800, 900, 1000, 1200 mm.
LT = NL + 3 for soft-close slides.
LT = NL + 12 for push-open slides.

Components in Kit Package:

Zestaw (Kit package): Includes slides (prowadnice), drawer sides (boki), and plastic cover caps (plastikowe zaślepki).
Front section, rod for push-open synchronization, and cross rail (for high inner drawers) are NOT included in the kit. These must be purchased separately.

Synchronization Rod for Push-Open Drawers:

Length: 1100 mm.
Cutting dimension: LW - 172 mm (for SB) or LW - 145 mm (for SB HE).

Usage Features

The AMIX SB and SB HE systems are designed for user-friendly installation and operation:

Assembly (Montaż szuflady / Drawer Assembly):

Back Assembly (Montaż tylnej ścianki): Attach the back panel to the drawer sides.
Bottom Assembly (Montaż spodu szuflady): Insert and secure the drawer bottom.
Fix Screws (Przykręć śruby): Secure the components with screws.
Front Assembly (Montaż frontu): Attach the drawer front to the drawer box.
Fixing-brackets Assembly (Montaż wsporników mocujących): For SB HE, attach the fixing brackets.
Slide into the Cabinet (Wsuń do szafki): Insert the assembled drawer into the cabinet slides.

Assembly for Inner Drawers:

Low Inner Drawer Front Assembly (Montaż frontu szuflada niska wewnętrzna): Attach the inner drawer front.
High Inner Drawer Front Assembly (Montaż frontu szuflada wysoka wewnętrzna): Attach the inner drawer front.

Adjustments (Regulacja / Adjustment):

Side Adjustment (Regulacja pozioma): Adjust the drawer horizontally (left & right) by turning a screw.
Up & Down Adjustment (Regulacja pionowa): Adjust the drawer vertically (up & down) by turning a screw.
Tilt Adjustment (Regulacja nachelenia frontu): For SB - Slim Box, adjust the tilt of the drawer front using an M3 Allen key.

Removal (Demontaż / Removal):

Remove Cover Caps (Zdejmij plastikowe zaślepki): Remove the plastic caps covering the adjustment screws.
Release Drawer Front (Użyj śrubokręta by zwolnić szufladę / Turn screw driver to release the drawer front): Use a screwdriver to disengage the locking mechanism for the drawer front.
Pull Out Drawer (Wciśnij mechanizm blokujący i wyciągnij szufladę / Press the locking device and pull out the drawer): Press the locking device (located under the drawer bottom for high drawers) and pull the drawer out of the cabinet.
For SB HE high drawer removal: Tip up the cover and pull out, then turn a screwdriver to release lock 1, then release lock 2.

Maintenance Features

The document does not explicitly detail maintenance features. However, based on the design and common practices for drawer systems, the following can be inferred:

Cleaning: The drawer sides and slides can be wiped clean with a damp cloth and mild detergent. Avoid abrasive cleaners that could damage the finish or lubrication of the slides.
Lubrication: While silent systems are often designed to be maintenance-free, if any squeaking or stiffness occurs over time, a light application of a silicone-based lubricant to the slides might be beneficial. Avoid oil-based lubricants as they can attract dust and debris.
Inspection: Periodically check all screws and connections to ensure they are tight. Loose screws can affect the drawer's stability and smooth operation.
Adjustment: Re-adjust the 3D settings if the drawer front becomes misaligned or if the gaps around the drawer are uneven. The accessible adjustment screws make this a straightforward process.
Replacement of Components: The modular design allows for individual components (slides, drawer sides, fixing brackets) to be replaced if damaged, extending the lifespan of the entire drawer system.

The AMIX SB and SB HE drawer systems are designed for durability and ease of use, requiring minimal maintenance to ensure long-lasting, smooth, and silent operation.
