7

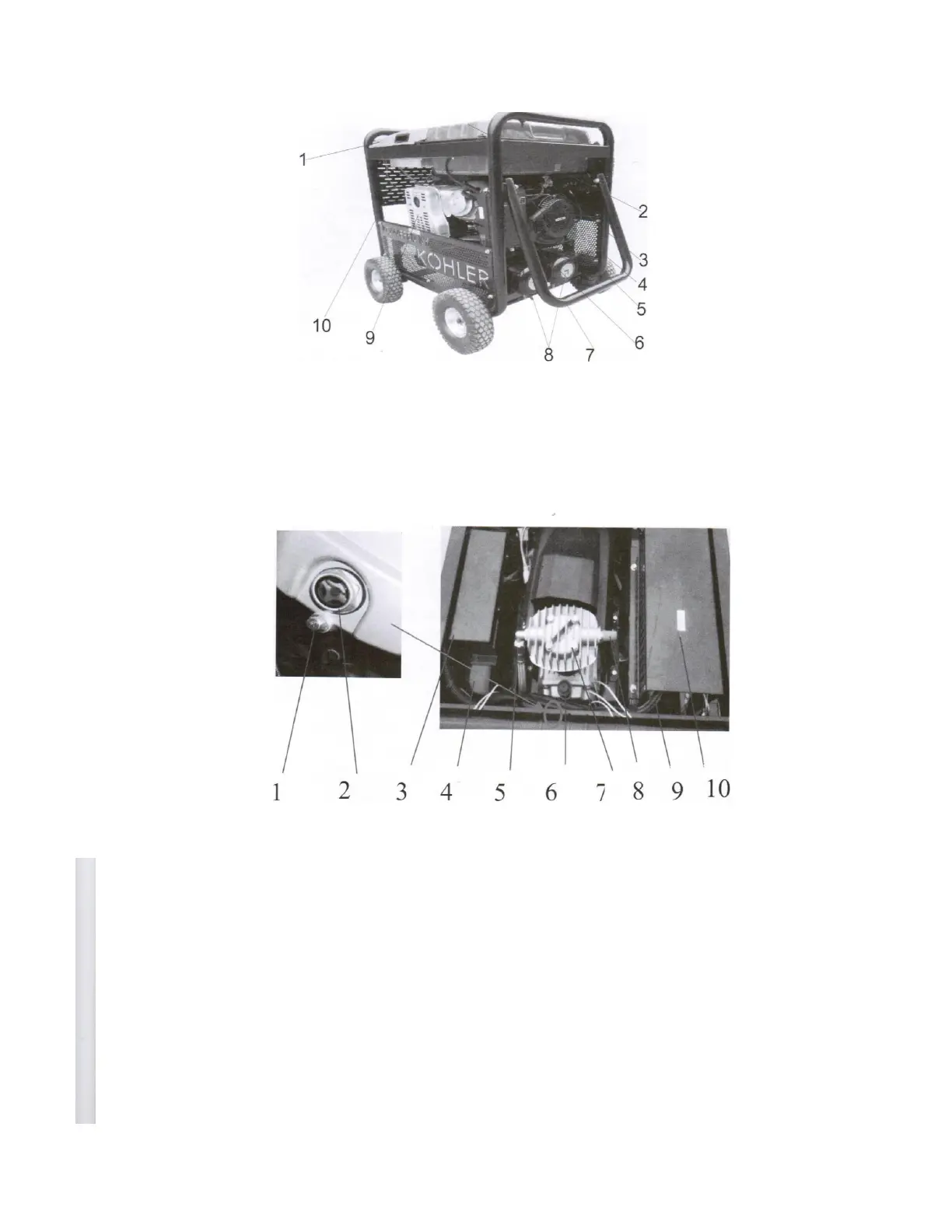

1 . Engine Cover Plate 2. Fuel Tank 3. Fuel Petcock
4. Engine Pull-Start Assembly 5. Engine Choke Lever
6. Air Filter Assembly 7. Handle 8. Water Drain Valve
9. Muffler Assembly 10. Frame
1 . Air Compressor Oil Drain Plug 2. Oil Sight Glass
3. AVR Cover Plate 4. Control Panel Case
5. Exhaust Port 6. Oil Fill Port
7. Air Compressor Cylinder Head 8. Air Filter
9. Air Supply Hose 10. Cover Plate
1 . Engine Oil Drain Plug
3. Air Pressure Relay
To Next Page
