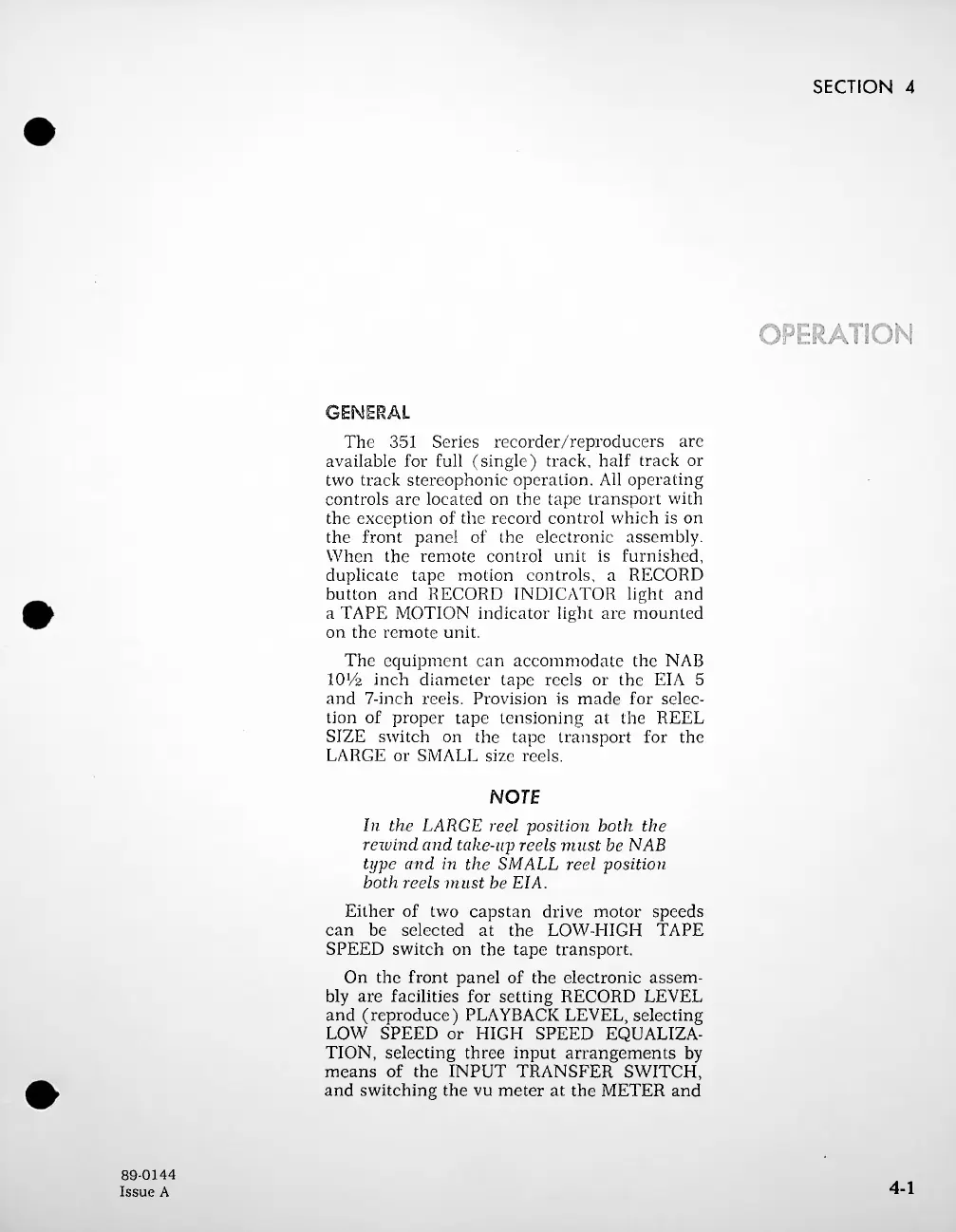

SECTION 4
if
4-1
89-0144
Issue A
NOTE
In the LARGE reel position both, the
rewind and take-up reels must be NAB
type and in the SMALL reel position
both reels must be EIA.
Either of two capstan drive motor speeds
can be selected at the LOW-HIGH TAPE
SPEED switch on the tape transport.
On the front panel of the electronic assem 
bly are facilities for setting RECORD LEVEL
and (reproduce) PLAYBACK LEVEL, selecting
LOW SPEED or HIGH SPEED EQUALIZA 
TION, selecting three input arrangements by
means of the INPUT TRANSFER SWITCH,
and switching the vu meter at the METER and
GENERAL
The 351 Series recorder/reproducers arc
available for full (single) track, half track or
two track stereophonic operation. All operating
controls are located on the tape transport with
the exception of the record control which is on
the front panel of the electronic assembly.
When the remote control unit is furnished,
duplicate tape motion controls, a RECORD
button and RECORD INDICATOR light and
a TAPE MOTION indicator light are mounted
on the remote unit.
The equipment can accommodate the NAB
ICP/a inch diameter tape reels or the EIA 5
and 7-inch reels. Provision is made for selec 
tion of proper tape tensioning at the REEL
SIZE switch on the tape transport for the
LARGE or SMALL size reels.
