SOLEADO – INSTALLATION MANUAL
EXPANSION SCREWS
ADJUSTING BRACKE
T
BUTTERFLY HAND SCREW
SCREW, FLAT WASHER,
SPRING WASHER AND
NUT (SPEC M5)

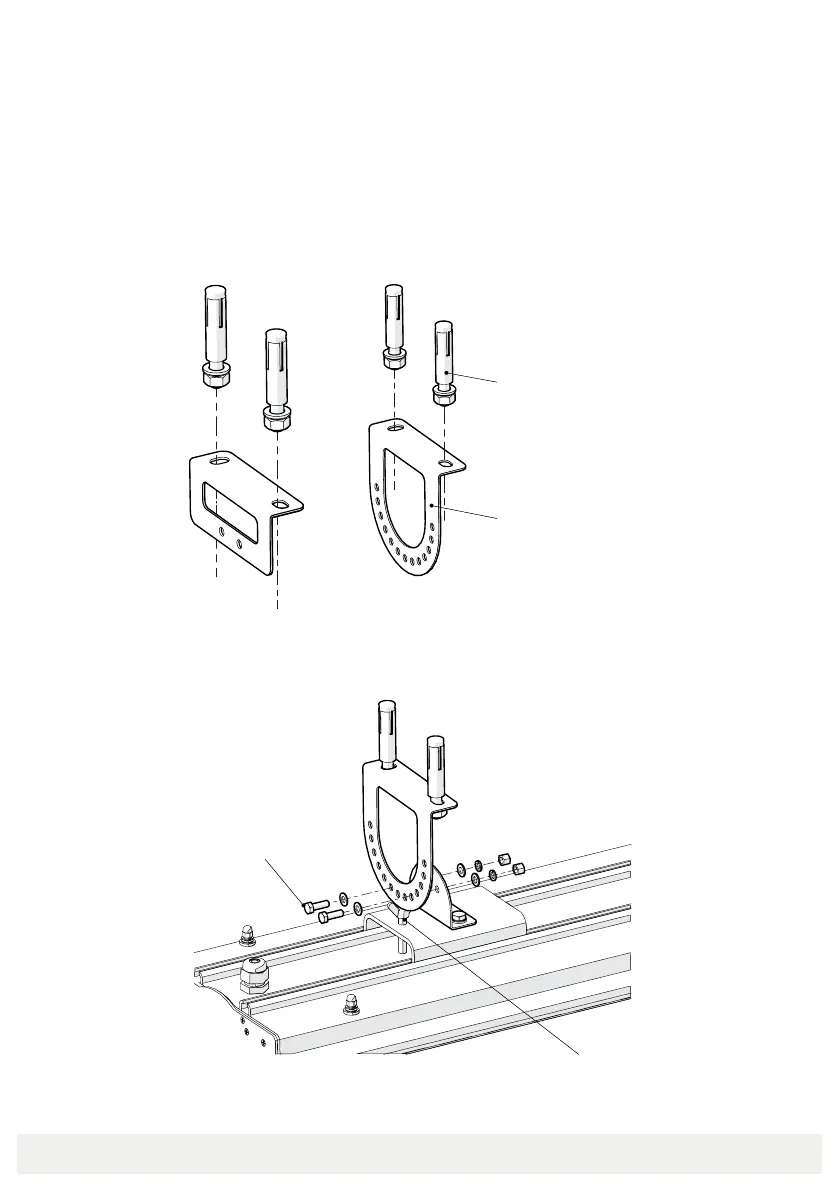

Step 3 Fix wall adjusting bracket into the wall with expansion screws.
Step 4 Connect the two (heater and wall) adjusting brackets; make sure to lock
brackets tightly using the butterfly hand screw.
