AMX MST-1001 Installation & Hardware Reference Manual

MST/D-431 - 4.3" S Series Touch Panels
20
Modero S Series Touch Panels - Installation & Hardware Reference Manual
MSD-431-L (Wall Mount - Landscape)
The MST-431-L 4.3" Wall Mount (Landscape) Touch Panel (FG2265-07) features advanced technology empowering users to
conduct seamless meetings including VoIP, brilliant 24-bit color depth, PoE connectivity, USB and streaming video. The MSD-431-
L also supports Bluetooth keyboard and mouse use via the optional MXA-BT Bluetooth Adapter.
MSD-431-L Specif ications

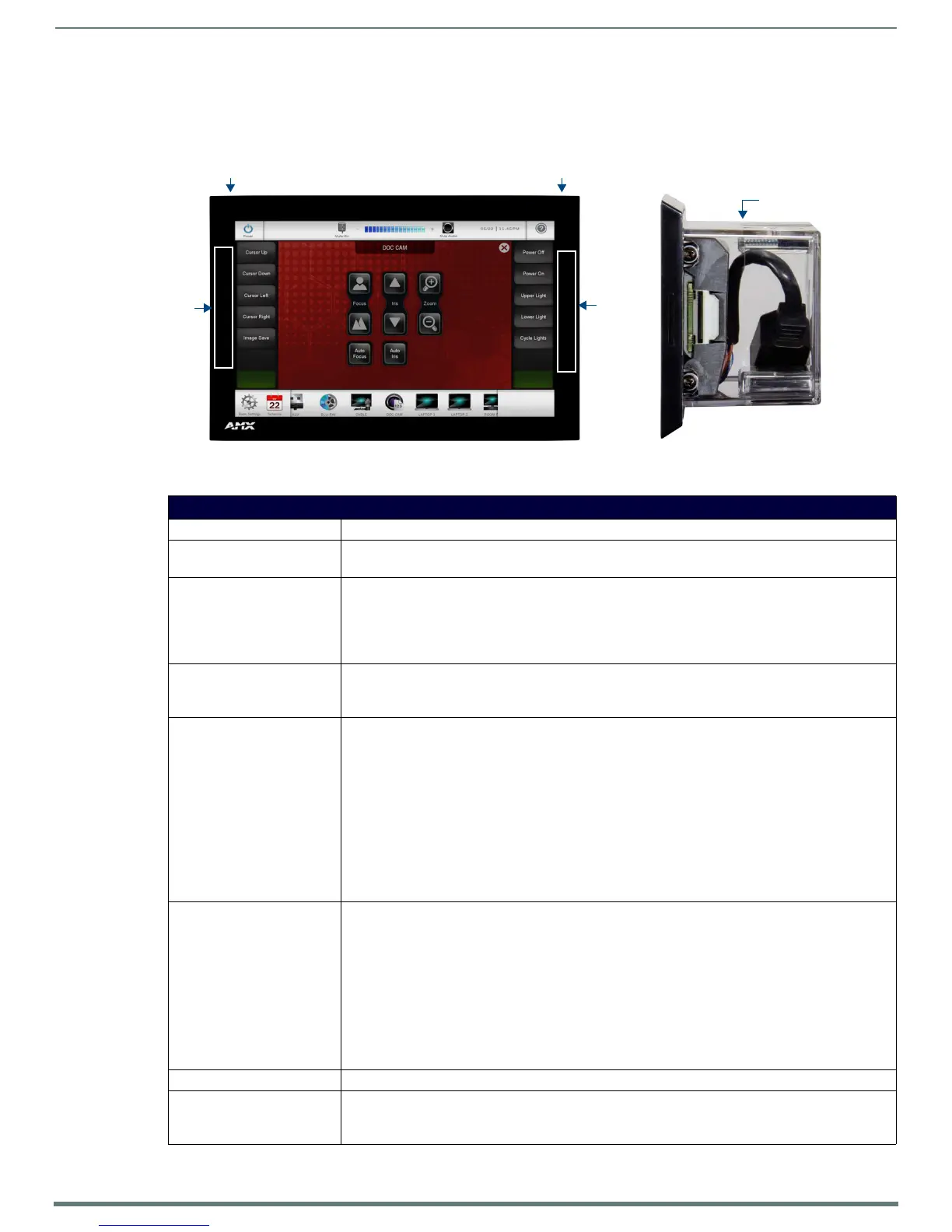

FIG. 11 MSD-431-L
MSD-431-L Specif ications
DIMENSIONS (HWD) Landscape: 3 3/8" x 5 1/16" x 2 5/8" (86mm x 128mm x 66mm)
WEIGHT • 0.65 lbs (.295 Kg), with Backbox
• 0.5 lbs (.225 Kg), without Backbox
POWER CONSUMPTION • Full-On: 5W (max)
•Typical: 3W
•Standby: 2W
• Shutdown: 0.7W
• Start-Up Inrush Current: Not applicable due to PoE standard
EXTERNAL POWER SUPPLY
REQUIRED
Optimal performance requires use of one of the following AMX PoE power supplies (not included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
CERTIFICATIONS • FCC Part 15 Class B
• CE EN 55022
• CE EN 55024
• CE EN 60950-1
•IEC 60950-1
• C-Tick CISPR 22 Class B
• IC CISPR 22 Class B
•UL 60950-1
• VCCI CISPR 22 Class B
•RoHS
•WEEE
TOUCH SCREEN DISPLAY • Display Type: TFT Active Matrix Color LCD
• Display Size (WH): Landscape: 5" x 3.4" (128mm x 87mm), 6" (152mm) diagonal
• Viewable Area (WH): Landscape: 3.7" x 2.1" (95mm x 54mm), 4.3" (109mm) diagonal
• Resolution: Landscape: 480x272
• Aspect Ratio: Landscape: 16:9
• Brightness: 350 cd/m2
• Contrast Ratio: 600:1
• Color Depth: 16.7M colors
• Illumination: LED
•Touch Overlay: Resistive
VIEWING ANGLE 40°/80°/65°/65° (Up/Down/Left/Right)
MEMORY • SDRAM: 512 MB
•Flash: 4 GB
• Maximum Project Size: 2.4 GB flash available to user
Sleep Button Microphone
Left
LED
Right
LED
Backbox
(side view)

AMX MST-1001 Specifications

General

Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Touchscreen type	Tabletop
Display brightness	350 cd/m²
Display resolution	1280 x 800 pixels
Display technology	LED
Touchscreen technology	Resistive
Viewable size diagonal	256 mm
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Product color	Black
Ethernet LAN (RJ-45) ports	1
Display viewable area (HxV)	136 x 217 mm
Power supply type	DC
Power consumption (standby)	4.5 W
Power consumption (typical)	7.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Wall mountable	No
HDMI ports quantity	0
Graphics card	AMX G4
Internal memory	512 MB
Internal memory type	DDR
RMS rated power	1.5 W

Weight and Dimensions

Depth (without stand)	103 mm
Width (without stand)	264 mm
Height (without stand)	157 mm
Weight (without stand)	5530 g
