RDM-HFDB (FG606-68)
RDM-MDM (FG606-36)
RDM-2DC (FG606-61)
RDM-3DC (FG606-62)
•Provides high-wattage (2400-6000W) level
control of dimmable fixtures
•Available in single, dual and triple-channel
versions (see chart)
• UL/CUL listed for continuous-duty operation
• CE approved
•Available for 120/240/277 VAC applications
INCANDESCENT
• Incandescent-compatible dimming
• General-purpose switching
• 40A SCR, 350-microsecond rise time choke
MULTIMODE
Versatile "dimming construction set" adapts to
operate most fixtures, including:
• Solid-state 40A SCR
• Positive air-gap general-purpose 20A relay
• 350 microsecond choke
• Load resistor
0-10 V FLUORESCENT
• Dims DC-controlled electronic fluorescent
ballasts
• Ramps 0-10 VDC signal for level control
• Current sourcing or current sinking
(RDM-HDC)
3-WIRE FLUORESCENT
• Dims 3-Wire FDB-style electronic fluorescent
ballasts
•Provides variable phase control for dimming
• Positive air-gap relay for power
RDM-2DC
Dual DC Module
1920W
0-12VDC(x2)
RDM-3DC
Triple DC Module
1920W
0-12VDC(x2)
RDM-HFDB
Heavy Duty FDB Module
1920 W
RDM-MD
Multimode Dimmer Module
2400 W
radia dimmer modules
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com
100-019-2576 © 2005 AMX Corporation. All rights reserved. AMX and the AMX logo are all trademarks of AMX Corporation. AMX reserves the right to alter specifications without notice at any time.

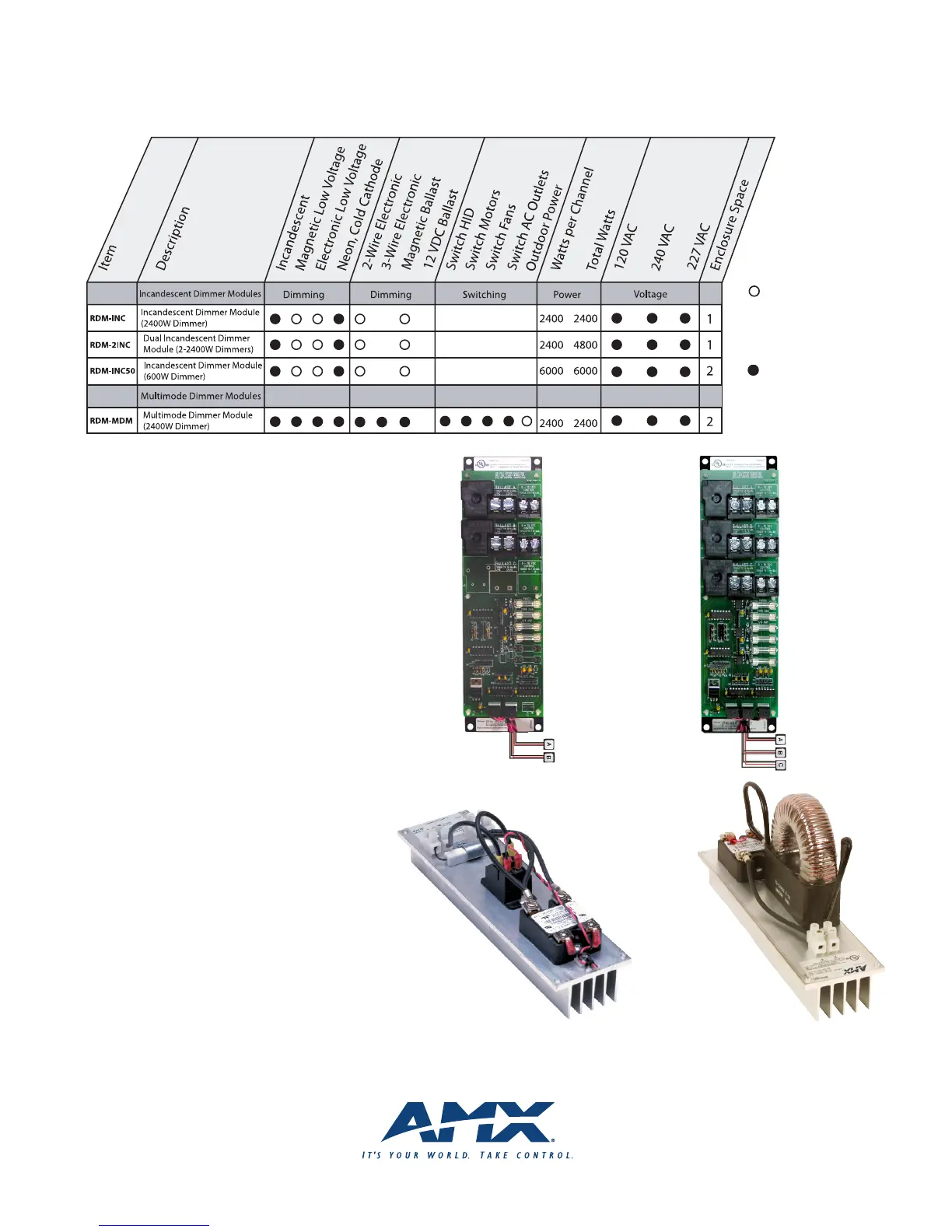

RADIA LIGHTING SYSTEM DIMMER MODULE CHART
Actual rating depends
on efficiency of fixture
electronics, transformers,
or other factors
Applicable up to full
power rating
