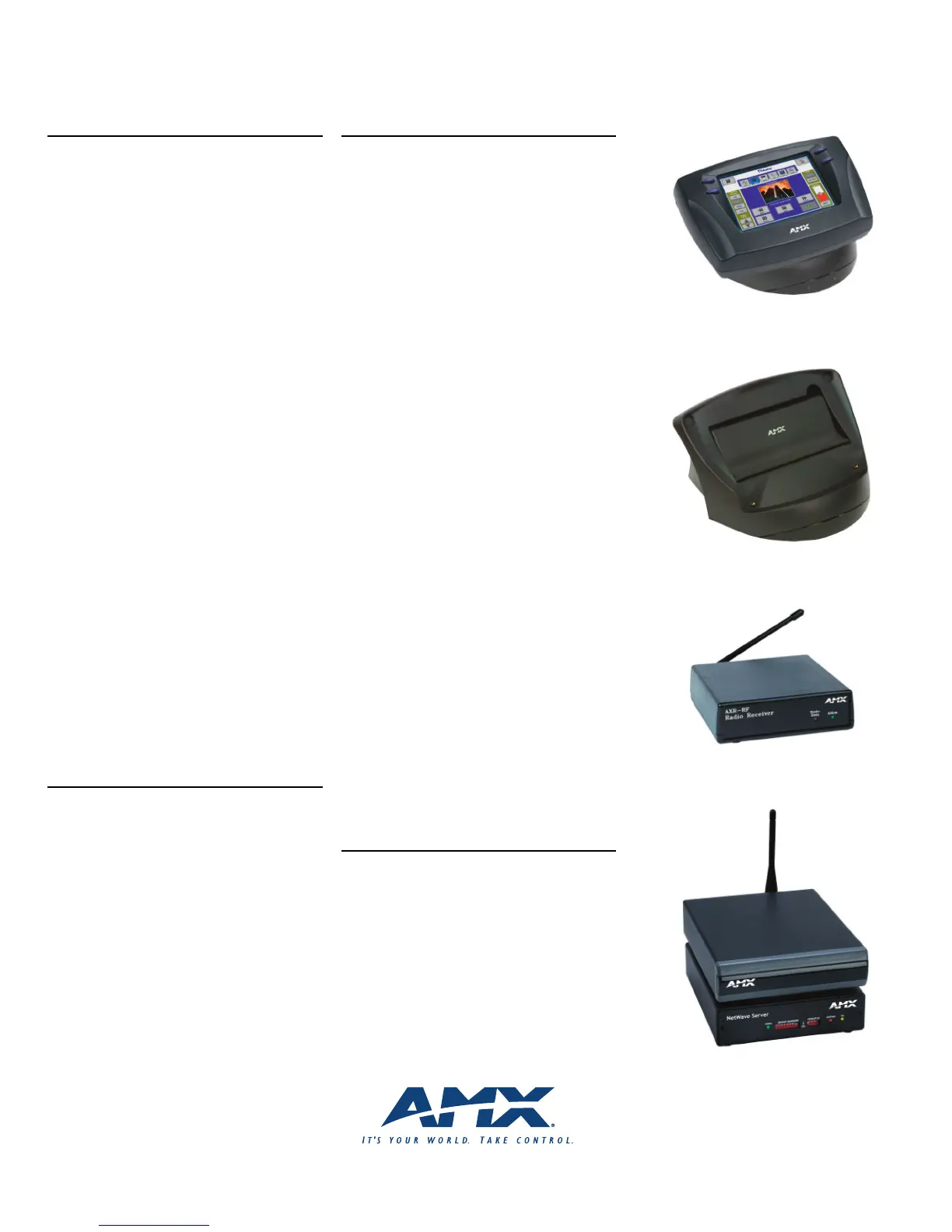

AXR-RF NetWave Server
AXR-RF Receiver
ViewPoint Docking Station
ViewPoint Touch Panel
VPT-CP: 1-WAY RF COLOR VIEWPOINT
• Provides smart battery charging
• Displays 256-color graphics on a 6"
color-passive LCD
• Transmits 1-way RF wireless signals
• Transmits downloaded maufacturer IR codes
• Includes NiMH rechargeable battery pack
LCD
• 6" (153.9 mm) Color passive-matrix LCD with a
resolution of 320 x 240 pixels
POWER CONSUMPTION
• 1.3 A @ 13.5 VDC
MEMORY
• 512 KB of SRAM and 2 MB of flash for a total of
2.5 MB
DIMENSIONS (HWD)
• 5.99" x 4.45" x 2.00"
(15.21 cm x 11.30 cm x 5.08 cm)
ENCLOSURE
• High impact molded plastic, matte black finish
EXTERNAL BUTTONS
• 4 fixed external programmable pushbuttons
(2 on each side)
OPERATING FREQUENCIES
• RF: 418 MHz standard RF 1-way transmission
• IR: 38 KHz or 455 KHz IR frequencies
CONNECTOR PORTS
• External power: 6 mm coax male power
cable connects from an external 13.5 VDC
power supply
• Programming: 2.5 mm stereo female conductor
jack (ViewPoint to PC programming cable)
CABLES
• External power cable: 6 mm coax male power
cable connects from an external 13.5 VDC
power supply (included)
• Programming cable: 3-wire, 2.5 mm
stereo conductor cable (ViewPoint to PC
programming cable)
ACCESSORIES
• VPA-BP: ViewPoint Rechargeable Battery
• Power Supply: 13.5 VDC, PS2.8 A power supply
OPTIONAL ACCESSORIES
• AXR-RF: RF Receiver for use only with the
VPT-CP
• VPA-DS: ViewPoint Docking Station
WEIGHT
• 2.46 lbs (1.11 kg) with battery, 1.97 lbs (0.89 kg)
without battery
AXR-RF: 1-WAY RF RADIO RECEIVER
• Receives RF signals from ViewPoint and other
AMX 1-way wireless panels
• Connects to an AXlink control network
POWER
• 65 mA @ 12 VDC
DIMENSIONS (HWD)
• 1.50" x 5.09" x 5.27"
(3.81 cm x 12.93 cm x 13.39 cm)
RF FREQUENCY
• 418 MHz standard (other frequencies
are available)
WIRING
• 4-pin AXlink terminal
ENCLOSURE
• High impact molded black matte plastic
WEIGHT
• 10.56 oz. (299.37 g)
VPN-CP: 2-WAY NETWAVE
• Provides smart battery charging
• Displays 256-color graphics on a 6"
color-passive LCD
• Transmits 2-way digital spread spectrum
wireless signals
• Supports other manufacturer IR
• Includes NiMH rechargeable battery pack
LCD
• 6" (153.9 mm) Color passive-matrix LCD with a
resolution of 320 x 240 pixels
POWER CONSUMPTION
• 1.3 A @ 13.5 VDC
MEMORY
• 512 KB of SRAM and 2 MB of flash for a total of
2.5 MB
DIMENSIONS (HWD)
• 5.99" x 4.45" x 2.00"
(15.21 cm x 11.30 cm x 5.08 cm)
ENCLOSURE
• High impact molded plastic, matte black finish
EXTERNAL BUTTONS
• 4 fixed external programmable pushbuttons (2
on each side)
OPERATING FREQUENCIES
• RF: 2.4 GHz two-way digital spread spectrum
for 2-way digital spread spectrum RF
communications with the AXR-NWS
NetWave Server
• Also provides one-way IR using OM (other
manufacturers’) IR codes
CONNECTOR PORTS
• External power: 6 mm coax male power
cable connects from an external 13.5 VDC
power supply
• Programming: 2.5 mm stereo female
conductor jack
CABLES
• External power cable: 6 mm coax male power
cable connects from an external 13.5 VDC power
supply (included)
• Programming cable: 3-wire, 2.5 mm stereo
conductor cable (ViewPoint to PC
programming cable)
ACCESSORIES
• VPA-BP: ViewPoint Rechargeable Battery
• Power Supply: 13.5 VDC, PS2.8 A power supply
OPTIONAL ACCESSORIES
• AXR-NWS: NetWave Server for use only with
the VPN-CP
• VPA-DS: ViewPoint Docking Station
WEIGHT
• 2.48 lbs (1.12 kg) with battery, 2.01 lbs (0.91 kg)
without battery
AXR-NWS: 2-WAY RF NETWAVE SERVER
• Transmits and receives 2-way wireless
commands through the use of 2.4 GHz signals
• Manages up to 16 ViewPoints panels
POWER
• 175 mA @ 12 VDC
DIMENSIONS (HWD)
• 1.65" x 5.55" x 6.92"
(4.19 cm x 14.10 cm x 17.58 cm)
OPERATING FREQUENCY
• 2.4 GHz RF digital spread-spectrum transmits
and receives
WIRING
• 4-pin AXlink terminal
ENCLOSURE
• High impact metal with black anodized
matte finish
WEIGHT
• 1.4 lbs. (0.64 kg)
viewpoint wireless touch panel
