8-cell changer
11 8-cell changer
D This cell changer is an automatic sample changing system. The driving unit with
stepper motor is controlled by WinASPECT
®
software.
The cell changer has eight cell positions for holding 10-mm pathlength cells of the
following outer dimensions 12.5 x 12.5 x 45 (L x W x H in mm).
The stepper motor drive of the driving unit conveys the cell holder within approx. one
second to the next position. Together with a reflection coupler that defines the initial point
of the motion range, the stepper motor drive provides exactly reproducible alignment of
the cells to the sample beam.
The 8-cell changer is optionally available with temperature control (via an external ther-
mostat) and/or magnetic stirrer. Magnetic stirrer and thermostat connectors must be
factory-fitted and cannot be retrofitted.
In addition, a Peltier temperature-controlled 8-cell changer is available (→ Section
"Peltier temperature-controlled 8-cell changer”, p. 79).
11.1 Removal of transport lock on non-temperature-controlled
8-cell changer
The non-temperature-controlled cell changer is protected in transport by a red plastic
foam pad under the cell block.

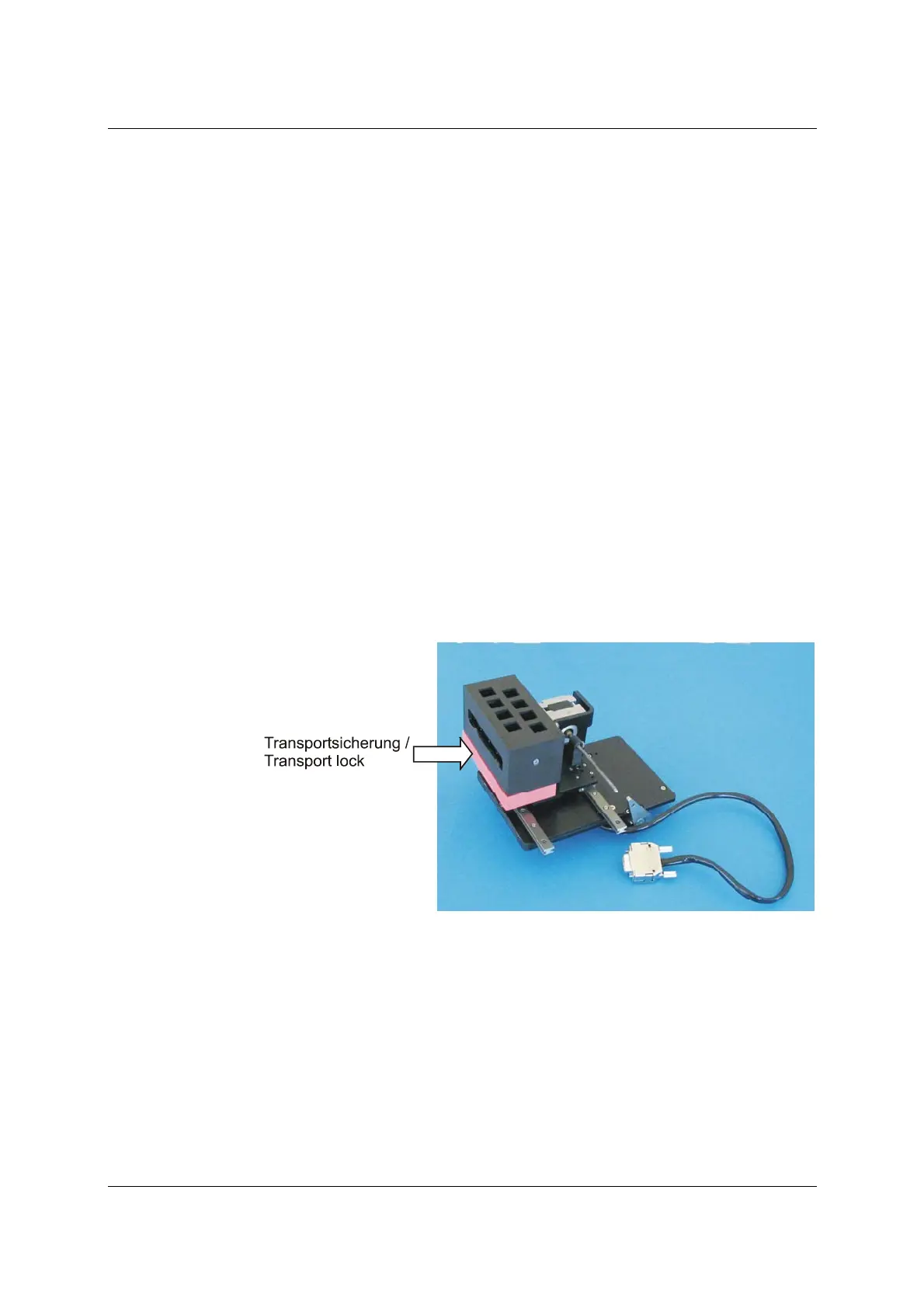

Fig. 11-1 Transport lock on non-temperature-controlled 8-cell changer
Make sure to remove the red plastic foam pad from underneath the cell block before
using the cell changer the first time.
Replace this pad for any relocation of the cell changer.
User’s Manual SPECORD 200/205/210/250 – Accessories 07/2005 41
