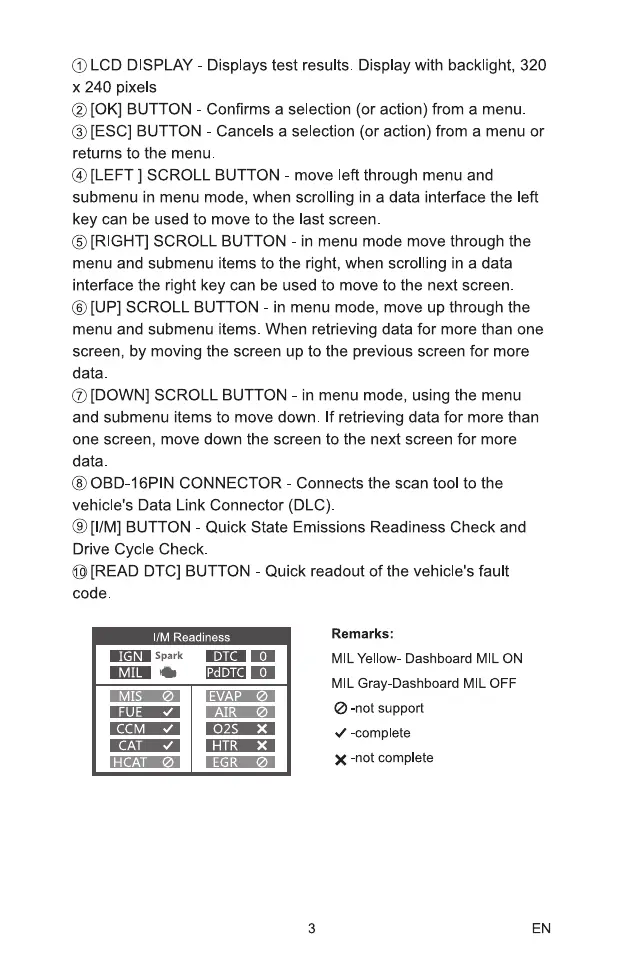

O LCD DISPLAY - Displays test results. Display with backlight, 320
x 240 pixels
@[0K] BUTTON - Confirms a selection (or action) from a menu.
BUTTON - Cancels a selection (or action) from a menu or
returns to the menu.
@[LEFT ] SCROLL BUTTON - move left through menu and
submenu in menu mode, when scrolling in a data interface the left
key can be used to move to the last screen
SCROLL BUTTON - in menu mode move through the
menu and submenu items to the right, when scrolling in a data
interface the right key can be used to move to the next screen.
SCROLL BUTTON - in menu mode, move up through the
menu and submenu items. When retrieving data for more than one
screen, by moving the screen up to the previous screen for more
data.
SCROLL BUTTON - in menu mode, using the menu
and submenu items to move down. If retrieving data for more than
one screen, move down the screen to the next screen for more
data
@OBD-16PlN CONNECTOR - Connects the scan tool to the
vehicle's Data Link Connector (DLC)
BUTTON - Quick State Emissions Readiness Check and
Drive Cycle Check
DTC] BUTTON - Quick readout of the vehicle's fault
code
I/M Readiness
IGN Spark
MIL
MIS
CCM
HCAT
DTC
PdDTC
EVAP
AIR
us
EGR
x
x
a
Remarks:
MIL Yellow- Dashboard MIL ON
MIL Gray Dashboard MIL OFF
-not support
-complete
X -not complete
