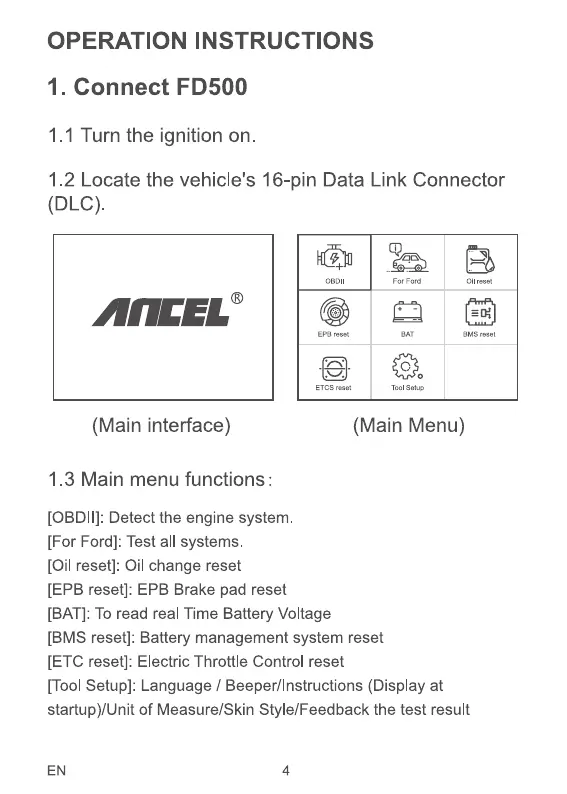

OPERATION INSTRUCTIONS
1. Connect FD500
1.1 Turn the ignition on.
1.2 Locate the vehicle's 16-pin Data Link Connector
(DLC).
(Main interface)
1.3 Main menu functions:
3
BMS reset
ETcs
Setup
(Main Menu)
[OBDII]: Detect the engine system
[For Ford]: Test all systems.
[Oil reset]: Oil change reset
[EPB reset]: EPB Brake pad reset
[BAT]. To read real Time Battery Voltage
[BMS reset]: Battery management system reset
[ETC reset]: Electric Throttle Control reset
[Tool Setup]: Language / Beeper/lnstructions (Display at
startup)/Unit of Measure/Skin Style/Feedback the test result
EN 4
