16

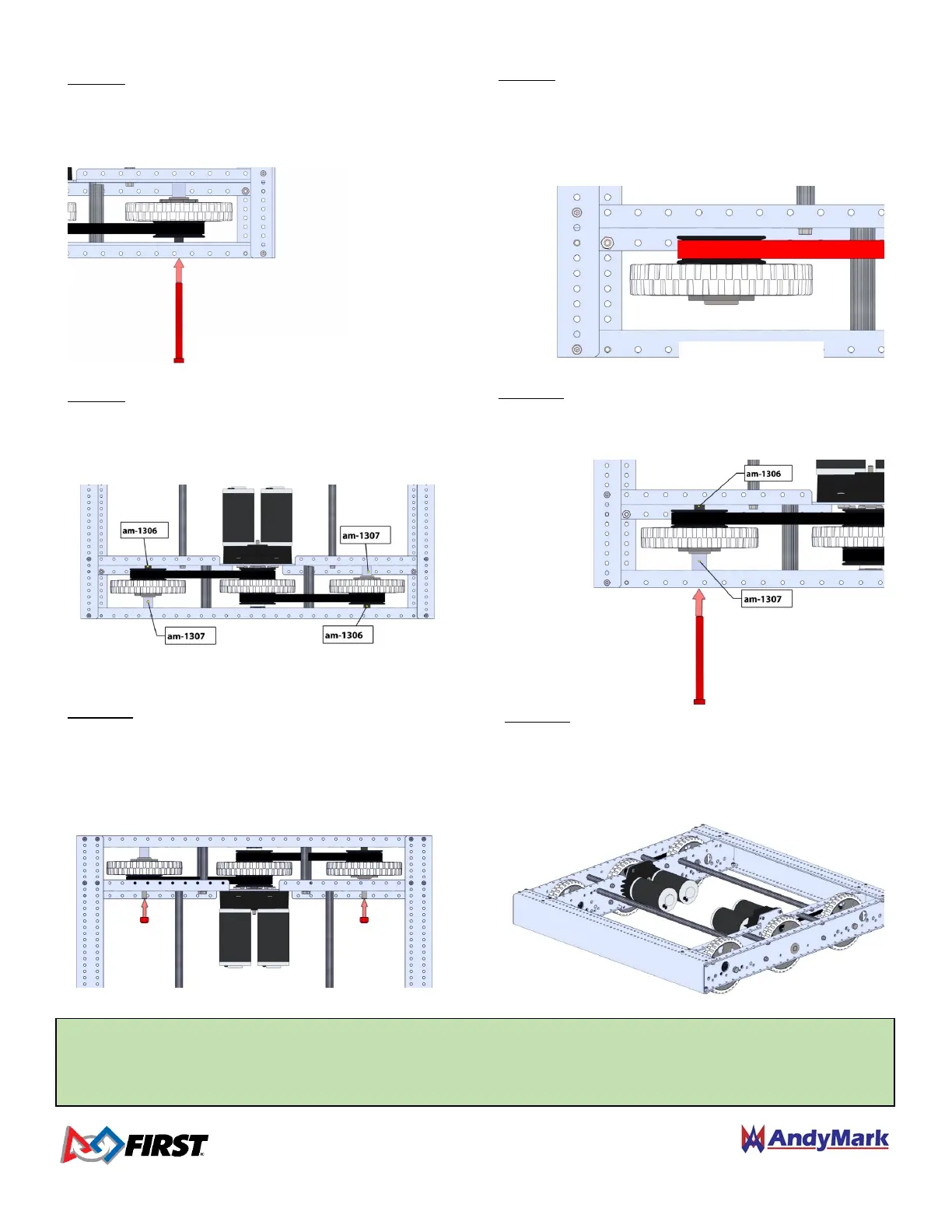

Add another Outer Wheel Assembly to the
other end of the chassis. Loop the belt onto the pulley
and insert the assembly between the Inside and
Outside Plates. This assembly should have its pulley
facing opposite of the first assembly.
Step 24: For the belt runs that are closest to the
Inside Plate, the Short Axle Spacer (am-1306) will be
closest to the Inside Plate. The Long Axle Spacer (am-
1307) will be closest to the Outside Plate.
Step 25: Slide a ⅜” axle bolt (am-1297) through the
spacers and wheel assembly, with the head of the bolt
pointing away from the chassis.
Step 22: There are different axle bolt locations for
each chassis configuration. Slide a ⅜” axle bolt (am-
1297) through the spacers and wheel assembly, with
the head of the bolt pointing away from the chassis.
Step 26: Install one ⅜-16 Nylock Nut (am-1054) on
each Axle Bolt. Tighten the bolt and nut until the
spacers just begin to touch Inside and Outside Plates.
The wheels should still easily turn, and the axle bolts
should be able to spin with a light turn of a wrench.
Step 27: Repeat steps 19 through 26 to install
wheels on other side of chassis.
You’ve completed the AM14U4 Kit of Parts Chassis.
For more information, tips and instructions on how to mount your battery, bumpers, and more visit
AndyMark.com.
