7
10-32 x 0.625” SHCS with
Nylon Thread Lock Patch
am-1120
4
10-32 x 0.75” SHCS
am-1047
4
10-32 Nylock Nut
am-1042
4
1/2" E-Clip Ring
am-0206
1

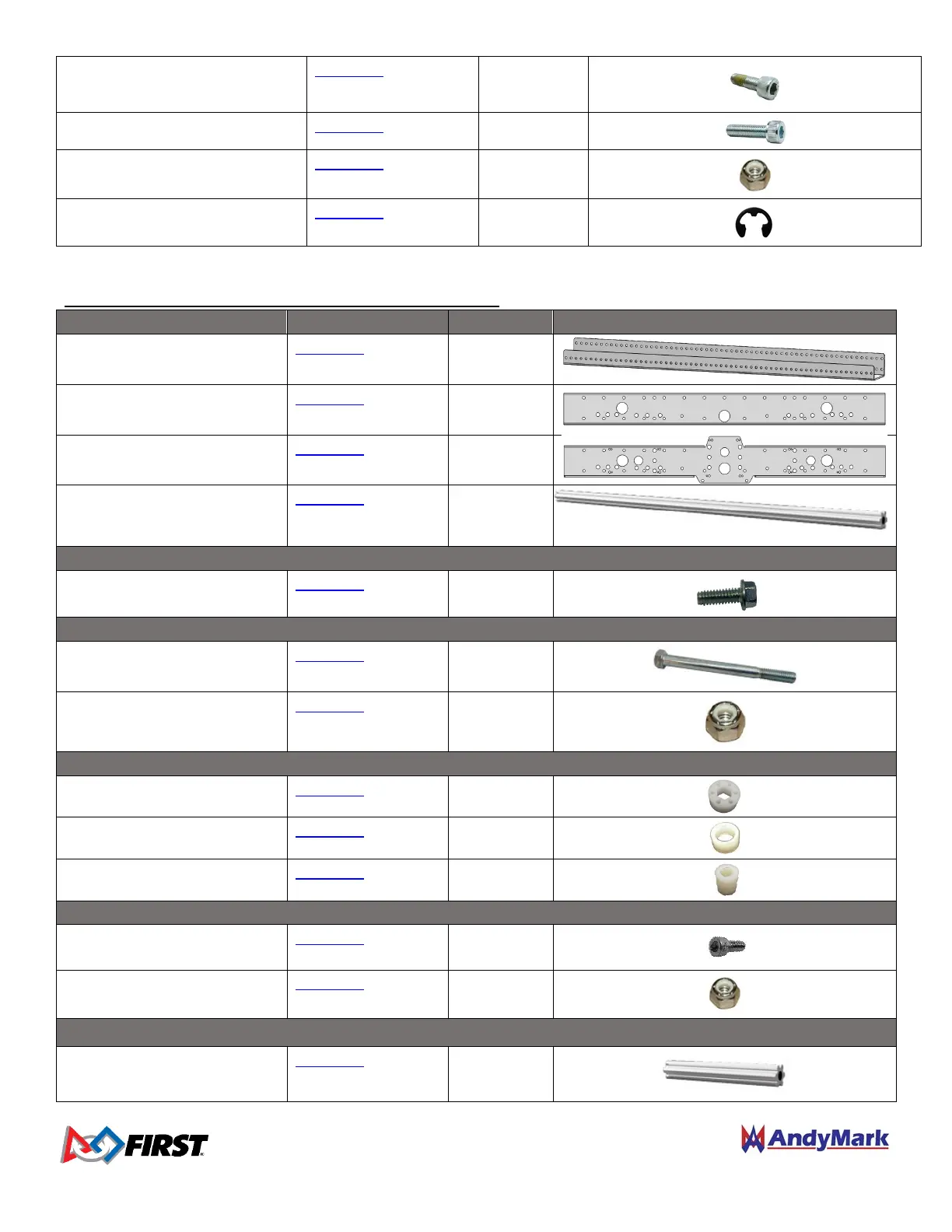

AM14U4 Chassis Frame Bill of Materials
Component
Part Number
QTY
Part Photo
AM14U4 End Plate
am-3920
2
AM14U4 Outer Plate
am-3921
2
AM14U4 Inner Plate
am-3922
2
500 Churro, 24.25"
am-2974
2
AM14U4 – Churro Screw Kit – AM14U4_CK1
1/4-20 x 0.75” Thread
Rolling Screw
am-1310
28
AM14U4 – Axle Kit – AM14U4_CK2
3/8-16 x 4.25” HHS Bolt
am-1297
4
3/8-16 Nylock Nut
am-1054
4
AM14U4 – Spacer Kit – AM14U4_CK3
0.570" Hex Spacer
am-1305
2
Plastic Spacer 0.280"
am-1306
4
Plastic Spacer 0.850"
am-1307
4
AM14U4 – Frame Hardware Kit – AM14U4_CK4
10-32 x 0.5” SHCS
am-1002
24
10-32 Nylock Nut
am-1042
24
AM14U4 Churro Kit – am-14U4_CK5
500 Churro, 3.375"
am-2569
8
