Anritsu Spectrum Master MS2721B Maintenance Manual

Performance Verification 1 2-2 Spectrum Analyzer Function Verification
MS2721B MM PN: 10580-00177 Rev. D 2-9
Spectrum Analyzer Second Harmonic Distortion
This test verifies the second harmonic distortion of the Spectrum Analyzer in the Spectrum Master Model
MS2721B.
Required Equipment:
• Anritsu MG3692x Synthesized Signal Generator
• Frequency Reference Symmetricom Rubisource T&M
• Lowpass Filter, Anritsu Part Number 1030-96 (RLC Electronics)
• Spectrum Master Model MS2721B

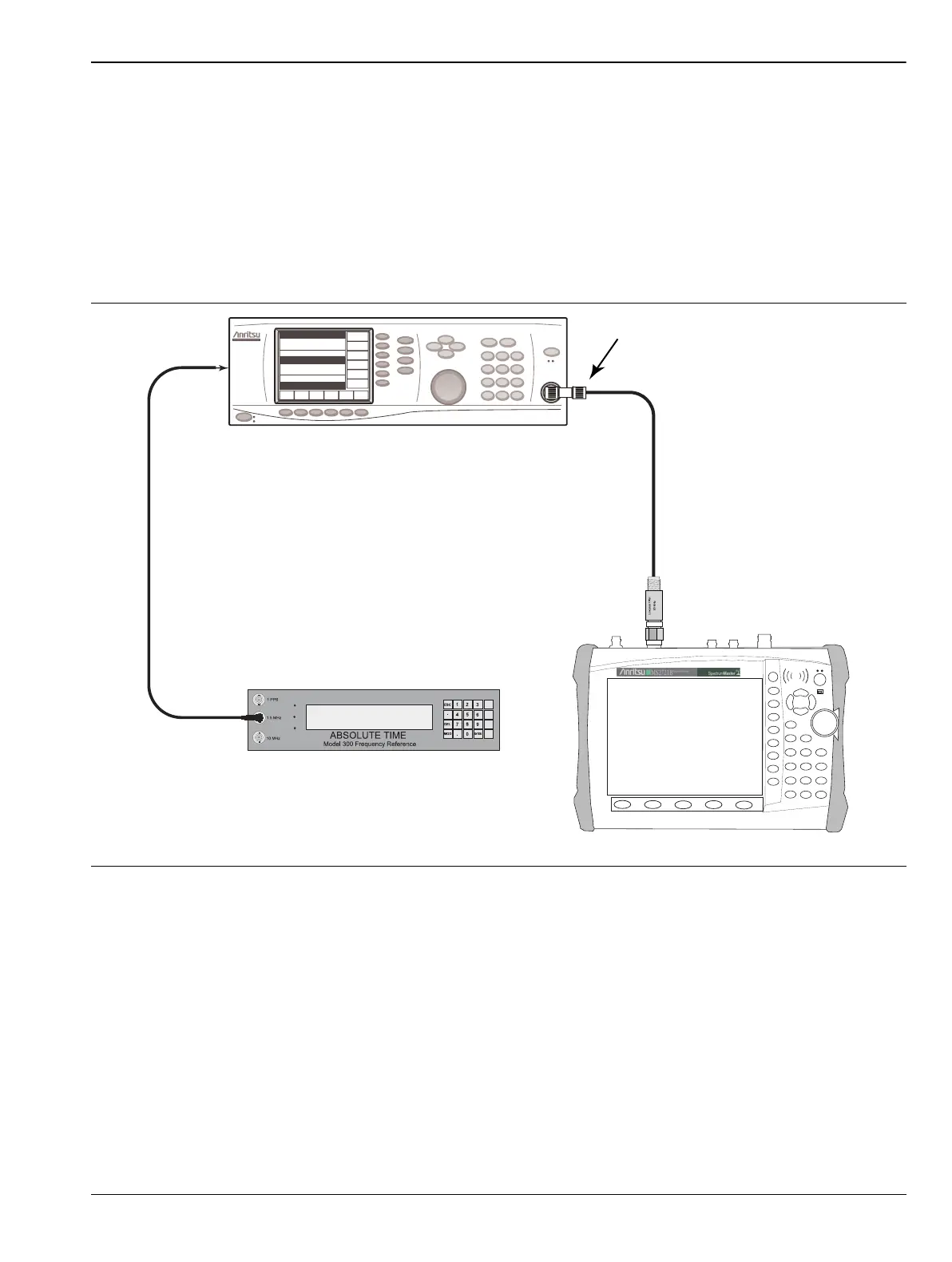

Figure 2-4. Spectrum Analyzer Second Harmonic Distortion Test Setup
10 MHz Reference
(to back panel)
MS2721B
Adapter
MG3692X
Low Pass Filter
