The IQ-396X is a modular, intelligent Fire Alarm Control Panel (FACP) with an
extensive list of powerful features. The CPU module, power supply module, and
cabinet combine to create a complete fire control system for most applications.
Optional modules mount to the chassis to provide additional output circuits.
Alarm Verification selection per point, with tally.
Positive Alarm Sequence (PAS) and Presignal per NFPA 72.
Silence Inhibit timer and Auto Silence timer.
March time/temporal code for Notification Appliance Circuits (NACs).
Zone coding for NACs if using an optional UZC-256.
Remote Acknowledge/Alarm Silence/System Reset/Alarm Activate functions
through MMX monitor modules.
Automatic time-of-day and day-of-week control functions, with holiday option.
User-defined password and key-protected nonvolatile memory.
AWACS (Advanced Warning Addressable Combustion Sensing) with nine field-
adjustable Pre-Alarm levels with programmable Control-by-Event (CBE)
Operate automatic smoke or heat detector sounder base on action Pre-Alarm
level, with general evacuation on alarm level.
Security alarm point option with separate audible signal code.
Centralized voice paging and audible alarm signaling options.
Programmable Control-by-Event control of outputs from individual alarm or
supervisory addressable devices.

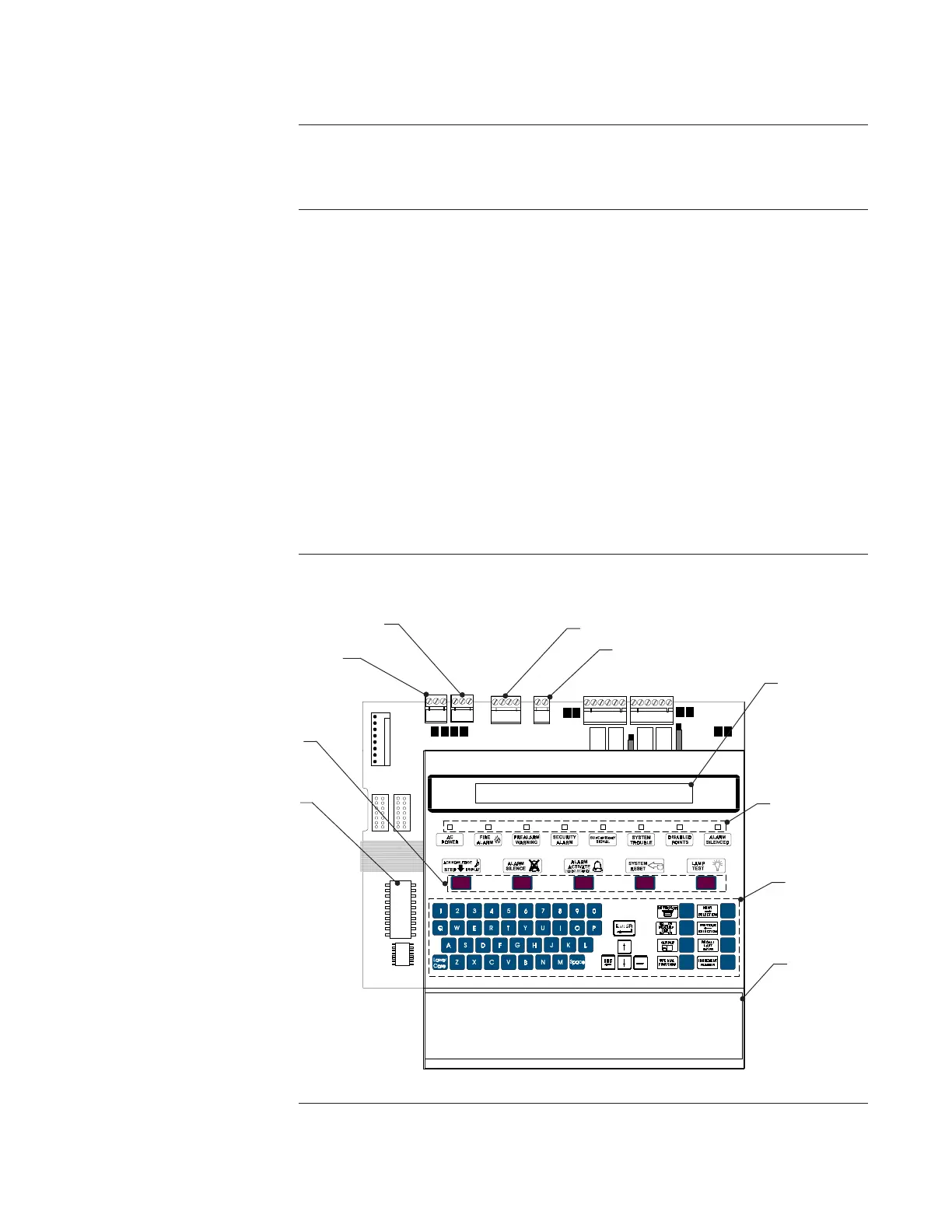

Figure 1 shows IQ-396X components used for operating the control panel.
1. Introduction
80-character
(2 x 40) Liquid Crystal
Display (LCD)
System Status
LED Indicators
Programming Keypad
Control
Keys
EIA-485 Terminal Mode Port
EIA-485 ACS Port
EIA-232
Printer Port
EPROM
EIA-232 PC/
Terminal Port
Flip-down door
(covers the
Programming Keypad)
Overview
Operating
Features
Components
Figure 1: IQ-396X Control Panel
