Description
The pull box on an INERGEN
system is used to provide
mechanical release of the system from a manually operat-
ed remote station. Two types of pull boxes are available.
The latched door type has a solid cast brass door which
must be opened to reach the pull handle. The second type
has a break glass window and a spring mounted handle
which rotates forward for use when the glass is broken. A
3/8 in. female NPT opening is provided at the back of each
enclosure for connection of the cable housing. Both types
are painted red.
A pulley elbow may be attached directly to the back of the
pull box, if necessary, to provide immediate changes in pull
cable direction. With this option, the pull box can be
extended an additional 3 1/2 in. (8.9 cm) from the mounting
surface by using support legs attached to the back of the
pull box (one set for latched door type, two sets for break-
glass type).
System Components
UL EX-4510 12-1-01 Page 1-9
Manual Pull Box
Component Material Approvals
Latch door pull box Brass UL Listed
(EX-4510)
Break glass window Brass UL Listed
pull box (EX-4510)
Shipping Assembly
Part No. Description
845062 Latch door type pull box
841527 Break-glass window pull box
841542 Support legs

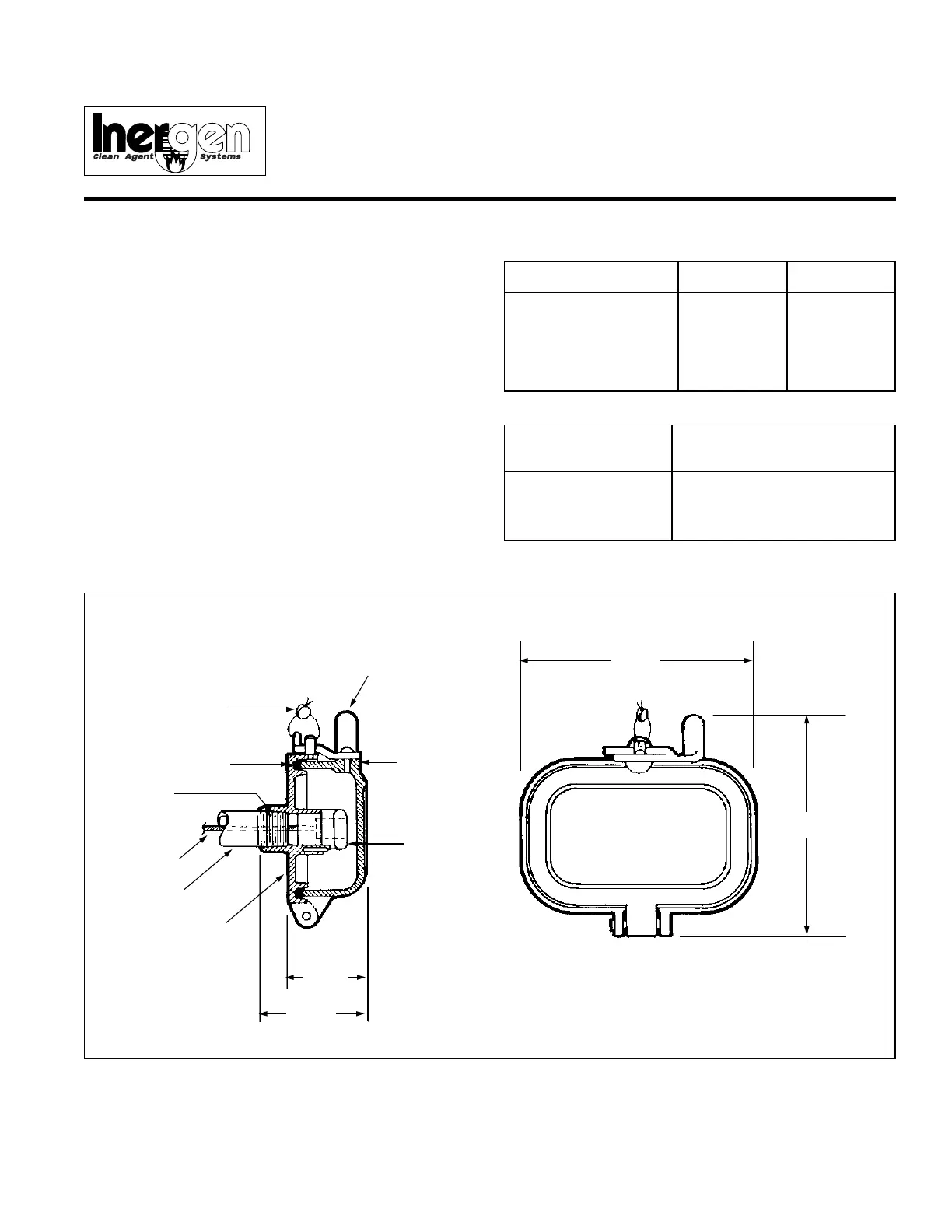

Manual Pull Box Latched Door Type
KNOB TO
OPEN PULL
BOX DOOR
LEAD AND
WIRE SEAL
BROKEN
SIMULTANEOUSLY
WHEN KNOB IS
PULLED
HINGED
DOOR (CAST
BRONZE –
PAINTED RED)
MOISTURE-PROOF
JOINT
3/8 IN. NPT
PULL
HANDLE
(BRASS)
FOR FIRE
OPEN DOOR
PULL HANDLE HARD
STAINLESS
STEEL PULL
CABLE
3/8 IN. PIPE
FOR ENCLOSING
PULL CABLE
BODY (CAST
BRONZE –
PAINTED RED)
1 7/16 IN.
(3.6 cm)
1 15/16 IN.
(4.9 cm)
4 3/16 IN.
(10.6 cm)
4 1/8 IN.
(10.4 cm)
ANSUL
®
®
000684
