System Components
UL EX-4510 12-1-01 Page 1-10
Description
The 1/16 in. diameter cable is used to attach remote manu-
al pull boxes to cylinder valves, pull equalizers and control
boxes. The cable is constructed of stranded, stainless steel
wire. The cable is available in lengths of 50, 100, and 150,
(15.2, 30.5, and 45.7m). The cable assemblies include a
brass swaged end fitting for attaching to the remote pull
box.

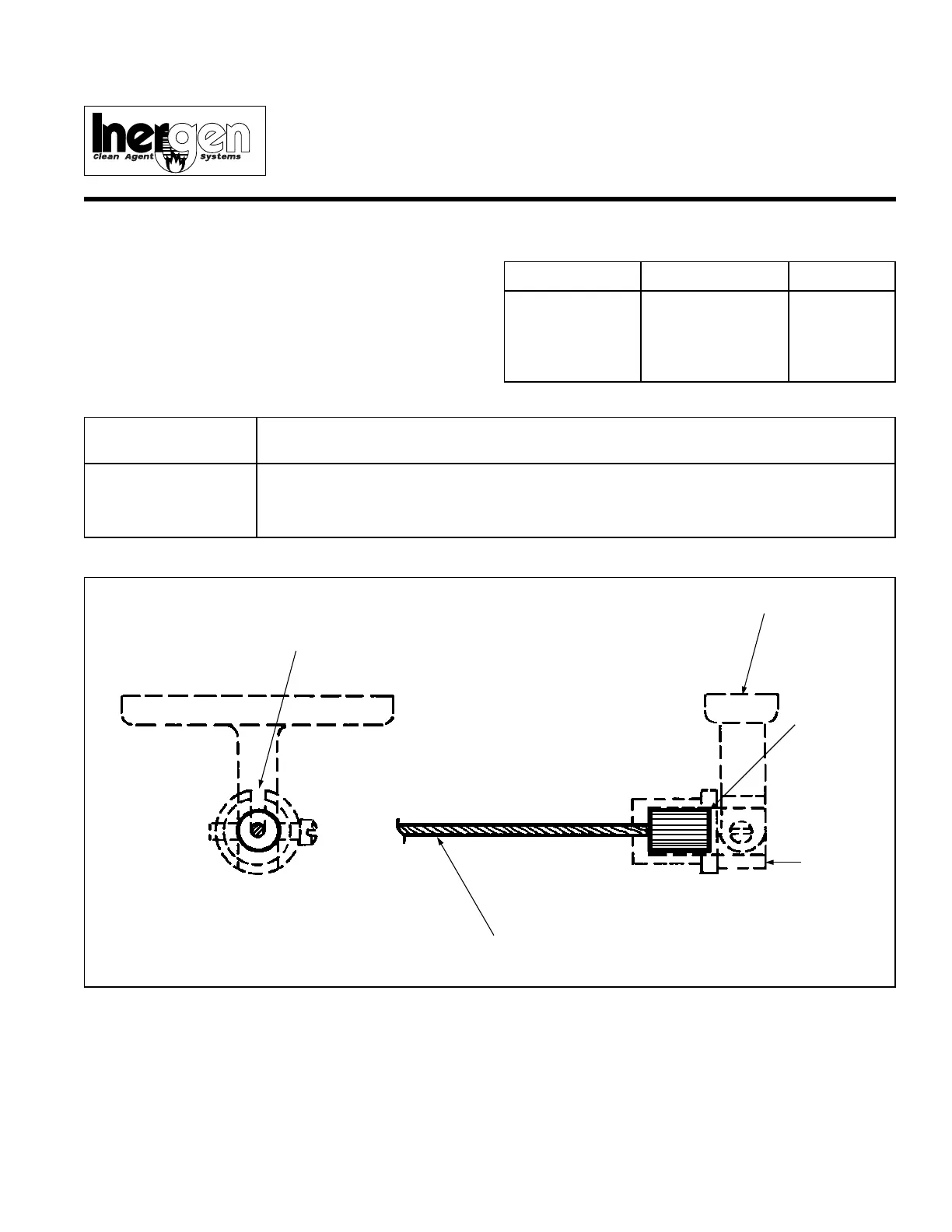

Cable with Swaged End Fitting
Component Material Approvals
Cable Assembly Cable: UL Listed
Stainless Steel (EX-4510)
Swaged Fitting:
Brass
Shipping Assembly
Part No. Description
842104 50 ft. (15.2 m) 1/16 in. (.16 cm) cable with swaged end fitting
842109 100 ft. (30.5 m) 1/16 in. (.16 cm) cable with swaged end fitting
842113 150 ft. (45.7 m) 1/16 in. (.16 cm) cable with swaged end fitting
NOTE: The strength of the end fitting exceeds the breaking point of the cable.
ANSUL and INERGEN are trademarks of Ansul Incorporated or its affiliates.
HANDLE
CABLE
END
(BRASS)
COUPLING
SLOT IN COUPLING
FOR INSTALLATION
OF CABLE END
FITTING
STAINLESS STEEL CABLE WITH SWAGED
CABLE END FOR PULL BOX, CABLE END
HAVING RED PAINT MARK
000689
ANSUL
®
®

Ansul INERGEN Specifications

General

Agent	INERGEN
Components	Nitrogen, Argon, Carbon Dioxide
Agent Composition	52% Nitrogen, 40% Argon, 8% Carbon Dioxide
Storage	High-pressure cylinders
Cylinder Material	Steel
Application	Total flooding fire suppression
Design Concentration	34.2% - 50% (depending on fuel type)
Storage Pressure	3000 psi (207 bar)
Environmental Impact	Zero ozone depletion potential, no global warming potential
Safety	Safe for use in occupied spaces when design concentration is maintained
Extinguishing Mechanism	Oxygen reduction to below combustion level
Approvals	UL, FM
Cylinder Sizes	Various sizes
Discharge Time	Typically less than 60 seconds
Typical Applications	Data centers, telecommunications, museums, archives
