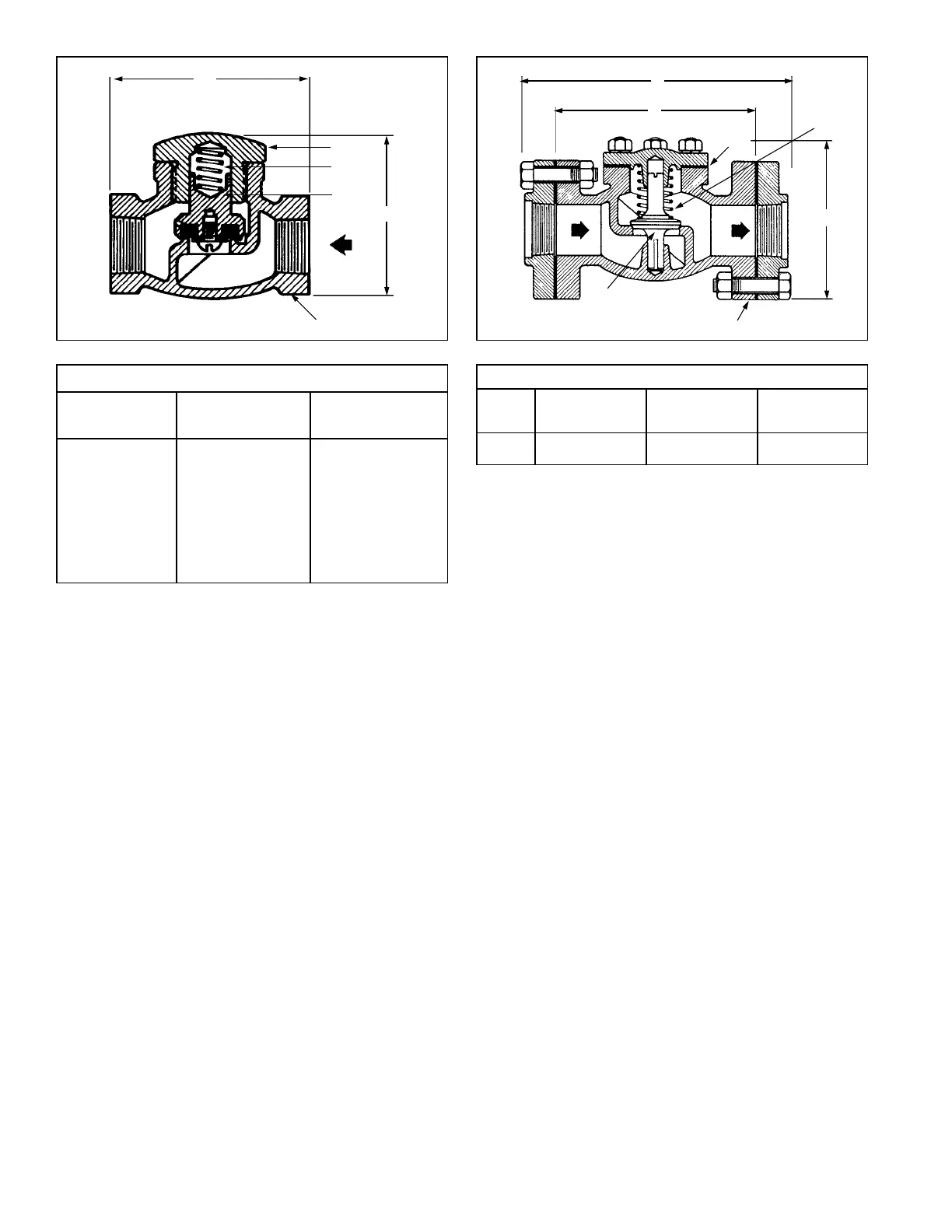

Check Valve – Threaded
Dimension A Dimension B
Valve Size in. (cm) in. (cm)
1/2 in. 3 (7.6) 2 5/8 (6.6)
3/4 in. 3 5/8 (9.2) 3 1/8 (7.9)
1 in. 4 1/8 (10.4) 3 3/4 (9.5)
1 1/4 in. 5 (12.7) 4 1/2 (11.4)
1 1/2 in. 5 1/2 (13.9) 5 1/8 (13)
2 in. 6 1/2 (16.5) 5 3/4 (14.6)
2 1/2 in. 8 (20.3) 6 3/4 (17.1)
Check Valve – Threaded Flange
Valve Dimension A Dimension B Dimension C
Size in. (cm) in. (cm) in. (cm)
3 in. 11 1/2 (29.2) 15 (38.1) 9 1/2 (24.1)
ANSUL and INERGEN are trademarks of Ansul Incorporated or its affiliates.
A
B
BONNET
BODY
SPRING
CHECK
A
C
B
CHECK
BODY
BONNET
SPRING
001817
002254
