System Components
UL EX-4510 12-1-01 Page 1-21
Description
Discharge nozzles are designed to direct the discharge of
INERGEN
®
agent using the stored pressure from the cylin-
ders. Ten sizes of nozzles are available. The system design
specifies the orifice size to be used for proper flow rate and
distribution pattern*. The nozzle selection depends on the
hazard and location to be protected. Standard nozzles are
constructed of brass.
NOTE: 2, 2 1/2, and 3 in. nozzles are not recommended in
areas that are subject to damage by high velocity dis-
charges, such as suspended ceiling tiles.
* Orifice diameter must be specified when ordering nozzle.
ANSUL and INERGEN are trademarks of Ansul Incorporated or its affiliates.

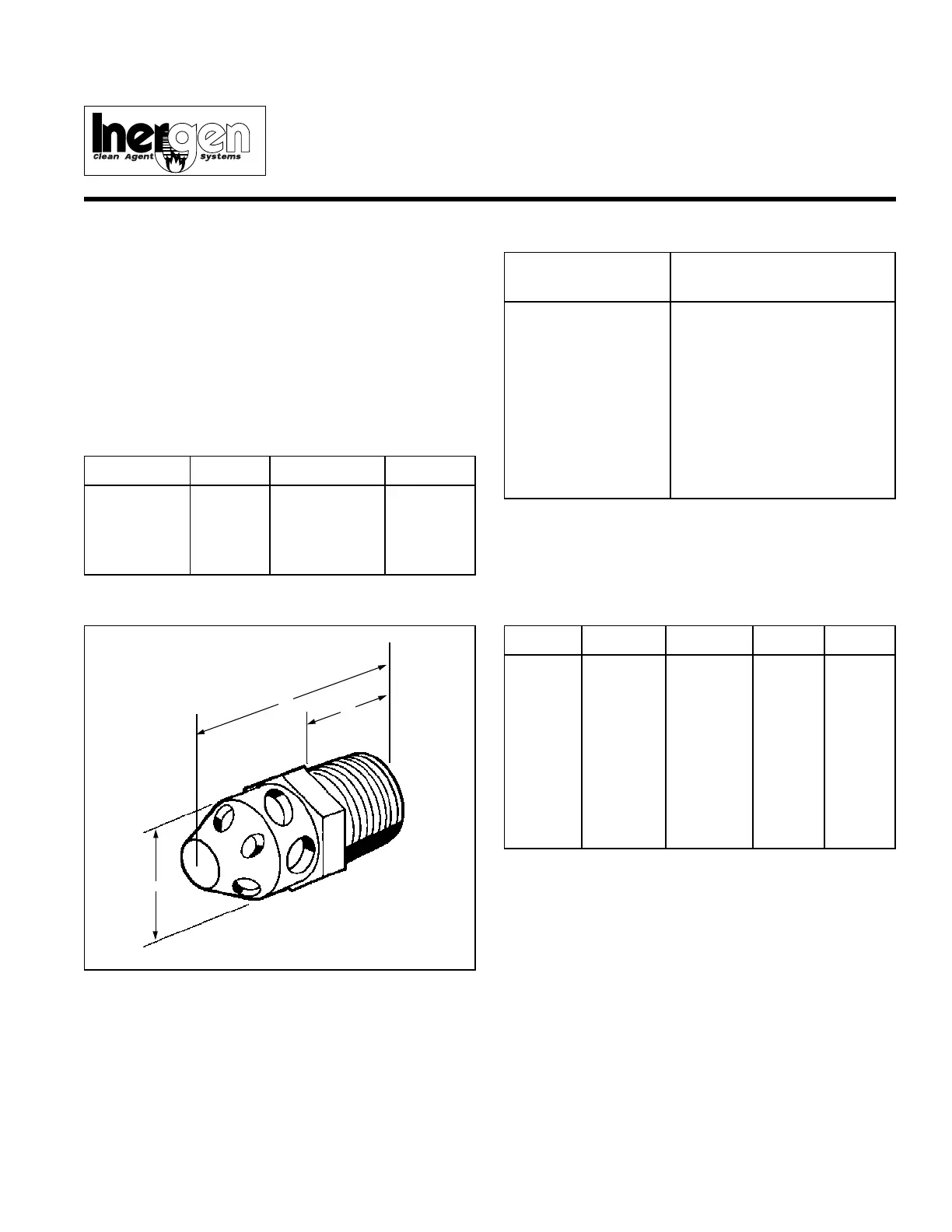

360° Discharge Nozzle
Shipping Assembly
Part No. Description
417908 1/4 in. NPT nozzle
417723 3/8 in. NPT nozzle
417362 1/2 in. NPT nozzle
417363 3/4 in. NPT nozzle
417364 1 in. NPT nozzle
417365 1 1/4 in. NPT nozzle
417366 1 1/2 in. NPT nozzle
426155 2 in. NPT nozzle
426156 2 1/2 in. NPT nozzle
426137 3 in. NPT nozzle
Size A-In. B-In. C-In. Hex
1/4 in. 5/8 1 9/16 21/32 5/8
3/8 in. 3/4 1 5/8 23/32 3/4
1/2 in. 15/16 1 31/32 27/32 15/16
3/4 in. 1 1/8 2 5/32 7/8 1 1/8
1 in. 1 13/32 2 9/16 1 1 7/16
1 1/4 in. 1 3/4 2 3/4 1 1/16 1 3/4
1 1/2 in. 2 2 31/32 1 1/16 2
2 in. 2 3/8 3 1 2 3/8
2 1/2 in. 3 3 1/2 1 3
3 in. 3 1/2 4 1/8 1 1/4 3 1/2
ANSUL INCORPORATED, ONE STANTON STREET, MARINETTE, WI 54143-2542 715-735-7411 Form No. F-2001272 ©2001 Ansul Incorporated Litho in U.S.A.
B
C
A
002199
NOTE: Refer to “Nozzle/Pressure Reducer Range Chart” in
Design Section for detailed orifice range information.
ANSUL
®
Component Material Thread Size
Approvals
Nozzle Body: 1/4, 3/8, 1/2, UL Listed
Brass 3/4, 1, 1 1/4, (EX-4510)
1 1/2, 2,
