S19 Maintenance Guide
7

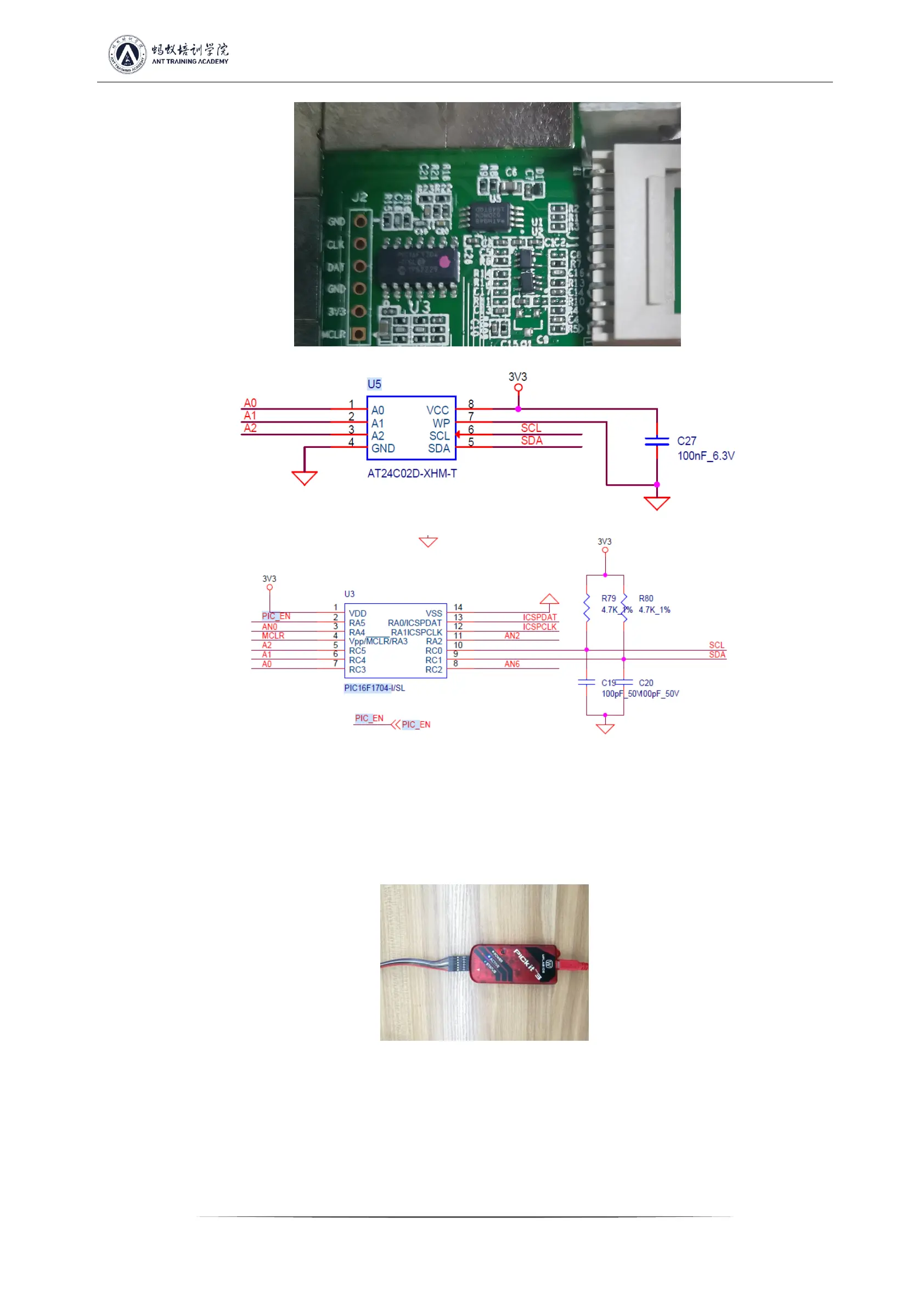

Figure 5-3
Figure 5-4
Figure 5-5
PIC programming steps:
1. PIC program programming on the hashboard.
Program: 20200101-PIC1704-BM1398-V89.hex
Download the programming tool: PICkit3, pin 1 of the PICkit3 cable corresponds to pin 1 of J3 on the PCB, and pins 1, 2, 3, 4, 5, and 6
need to be connected.
Figure 5-6
2. Programming software:
Open MPLABIPE and select device: PIC16F1704, click power to select the power supply mode, then click operate. The first step: select
file to find the .HEX file to be programmed; the second step: click connect to connect normally; the third step: click the program button,
and after completion, click verifiy to prompt the verification to prove that the programming is successful.
