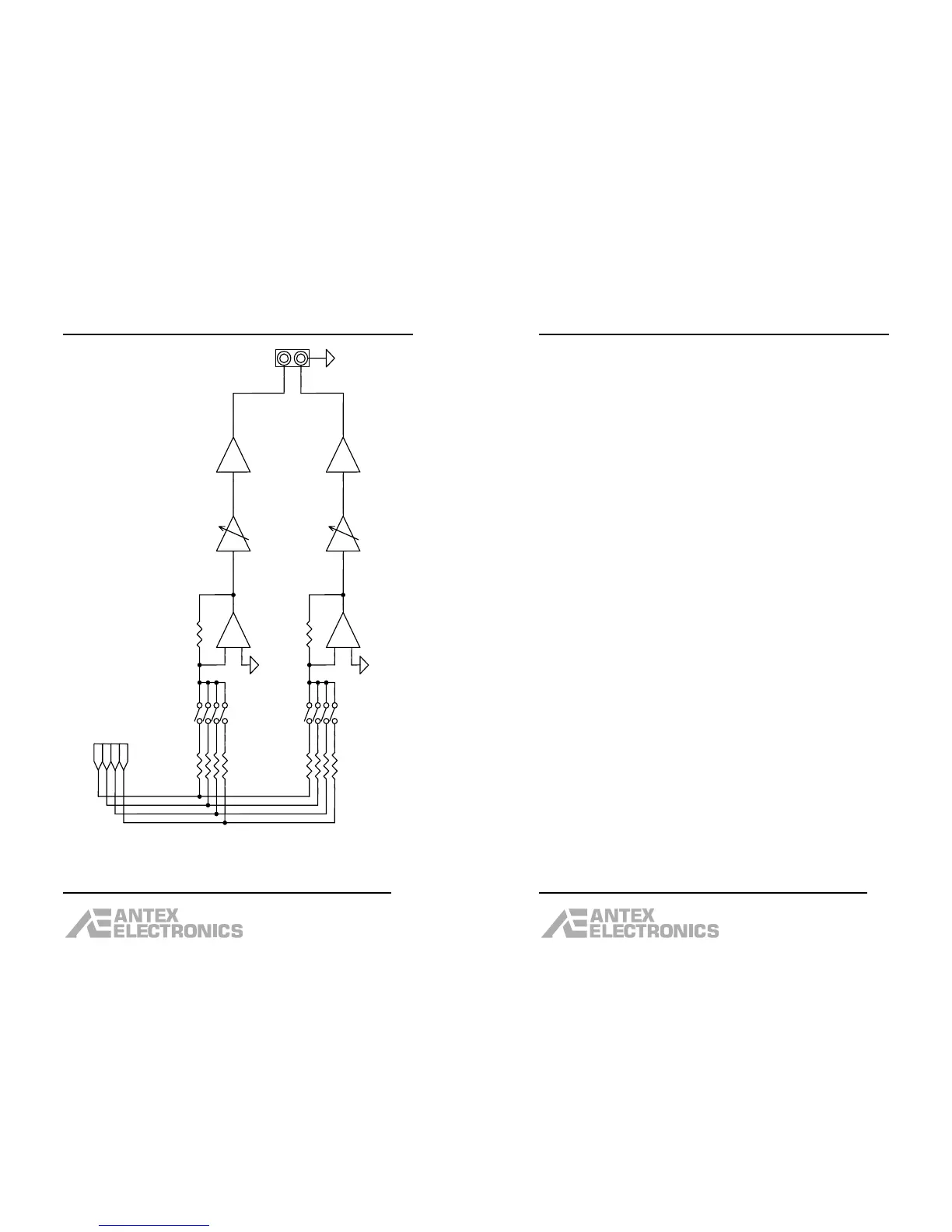

DMX-4 USB Mixer User Manual
29
CHANNEL 1
RCA
MONITOR
+
-
MONITOR
CHANNEL 3
+
-
-102 -> 25.5dB
CHANNEL 4
-102 -> 25.5dB
CHANNEL 2
DMX-4 USB Mixer User Manual
30
Specifications:
Inputs:
Number 4
Connector XLR
Type Transformerless
balanced
Gain adjustment:
Channels 1 & 2, 10 to 85dB, 1dB
(mic setting) steps
Channels 1 & 2, 0 dB, fixed
(line setting)
Channels 3 & 4, 10 to 85dB, 1dB
(mic setting) steps
Channels 3 & 4, -8 to 31.5dB
(line setting)
Clipping level +6dBV – gain setting
(note 1)
Input impedance 2K
Phantom power 14VDC, 1K series
resistor each line
Note 1. For example, if the gain is set to 65dB, clipping
will begin with a –59dBV signal. If the gain is set to 0,
clipping will begin with a +6dBV signal.
Monitor Outputs:
Number 2
Connector RCA female
Type Unbalanced (single
ended)
Series impedance 560 ohms
Output level before clipping 2VRMS (+6dBV)
