14
2. CONNECTIONS continued …

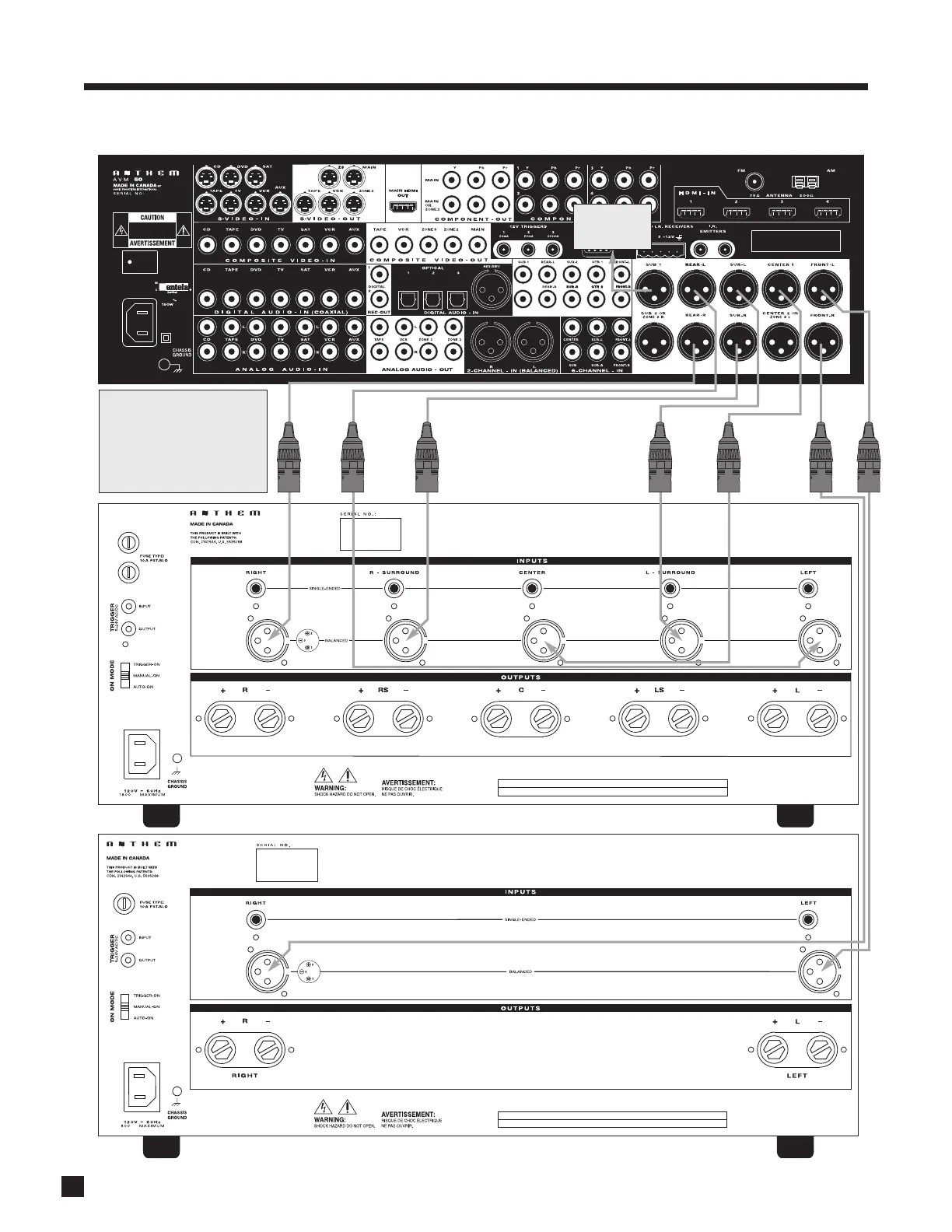

Example 3: AVM 50 to Amplifiers and Subwoofer (Balanced connection shown, single-ended is similar)
120V 60Hz
MAX
EXPANSION PORT
SHOCK HAZARD
DO NOT OPEN.
RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
MAIN AUDIO-OUT (BALANCED)
SUB 2
MAIN AUDIO-OUT
VA
MCA 50
WARNING
RISK OF HAZARDOUS ENERGY! MAKE PROPER SPEAKER CONNECTIONS. SEE OPERATING MANUAL BEFORE USING.
WARNING
RISK OF HAZARDOUS ENERGY! MAKE PROPER SPEAKER CONNECTIONS. SEE OPERATING MANUAL BEFORE USING.
VA
MCA 20
Trigger Setup Suggestion:
If it is not necessary to have both
amplifiers turned on when stereo
sources are playing, set triggers
to turn on only the 2-channel
amplifier when a stereo source is
selected (see section 3.9).
To powered
subwoofer
