APW8 Power Supply Maintenance Guide
12

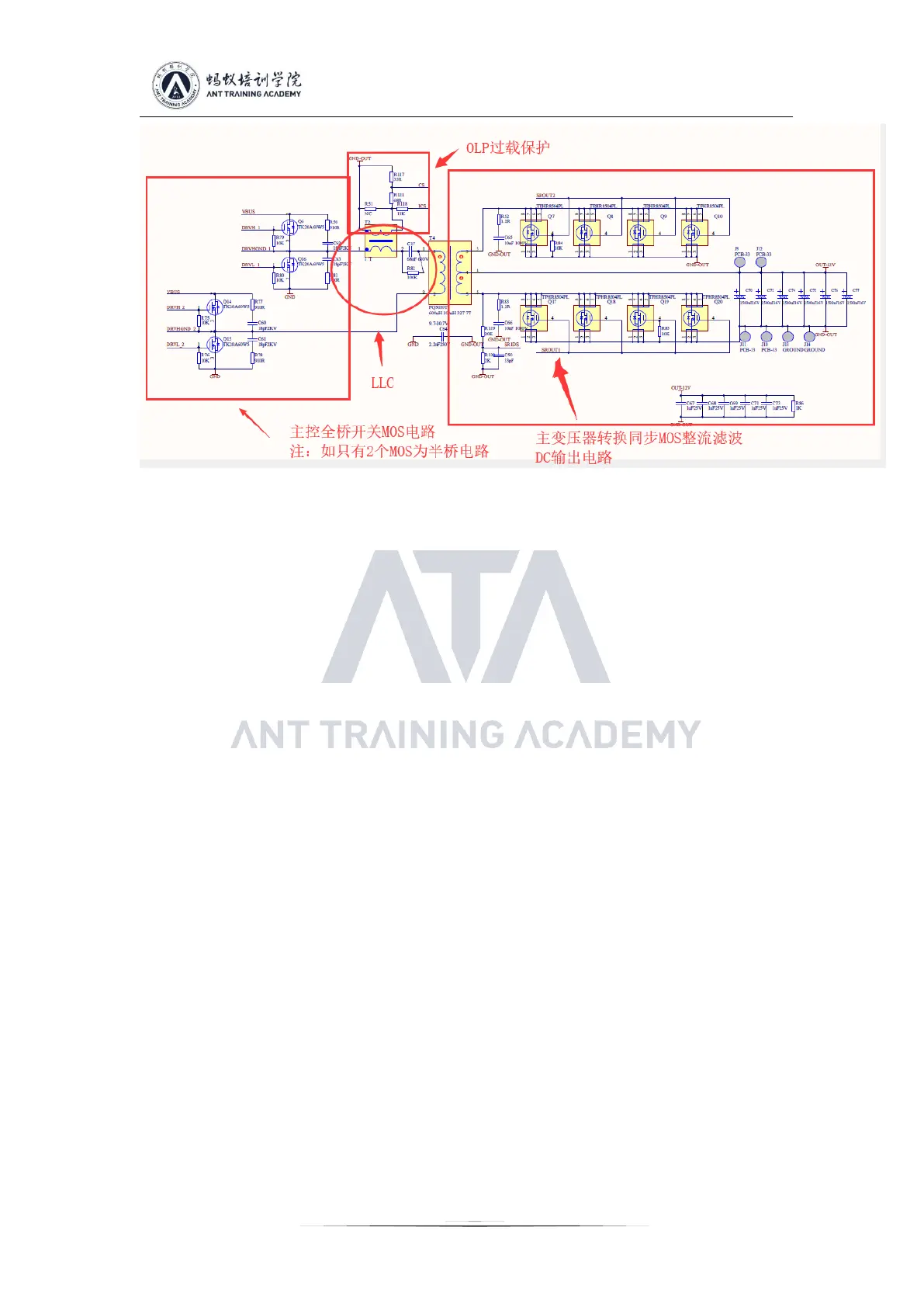

OLP 过载保护：OLP overload protection
主控全桥开关 MOS 电路：Master control full bridge switching MOS circuit
注：如只有 2 个 MOS 为半桥电路：Note: If there is only 2 MOS, it is a half-bridge circuit
主变压器转换同步 MOS 整 流 滤 波 ：Main transformer conversion synchronous MOS
rectification filter
DC 输出电路: DC output circuit
2.25 Location of A side of SMD patch and B side of plug-in
To Next Page
