APW8 Power Supply Maintenance Guide
4
Note: If you need to turn on the default voltage 16.32V test, you can use the adapter cable
to short connect the voltage Pin EN to GND.

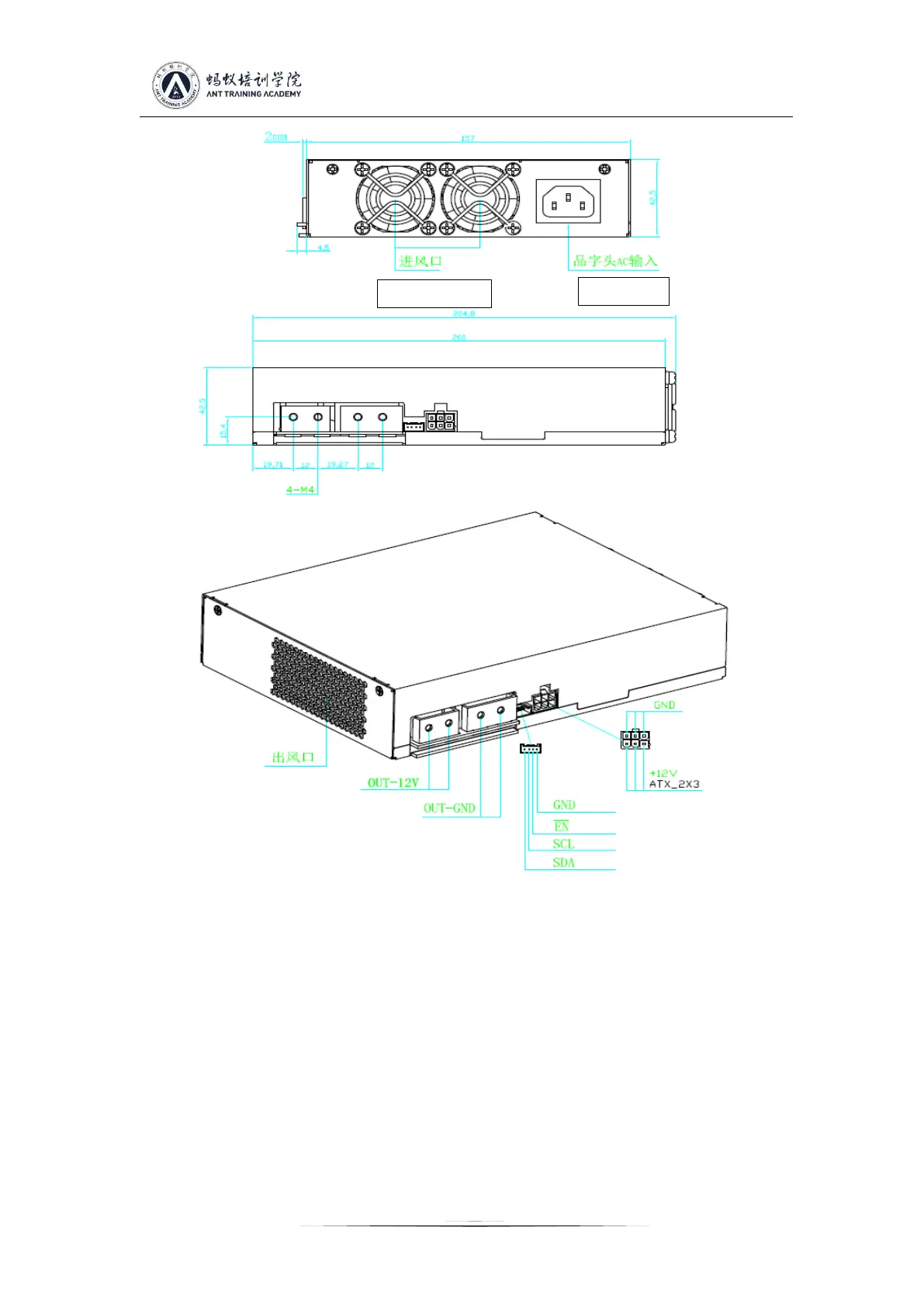

● Distribution on the front panel of the power supply: one triangle-shape AC input
interface
two size-4028 high speed fans
●Distribution on the left side of the power supply: four PCB-33 copper soldering
terminals with adjustable voltage output
one 4Pin signal terminal
one 12V fixed voltage output PCIE terminal
● Distribution on the rear panel of the power supply: 1 set of air outlets, forming the air
outlet of the high-speed fan.
