AOC 2216Vw User Manual

800x600 35.156 56
800x600 37.879 60
800x600 48.077 72
SVGA
800x600 46.875 75
1024x768 48.363 60
1024x768 56.476 70
XGA
1024x768 60.023 75
1280x1024 63.981 60
SXGA
1280x1024 79.976 75
WXGA 1440x900 55.935 59.8
WSXGA 1680x1050 65.29 60

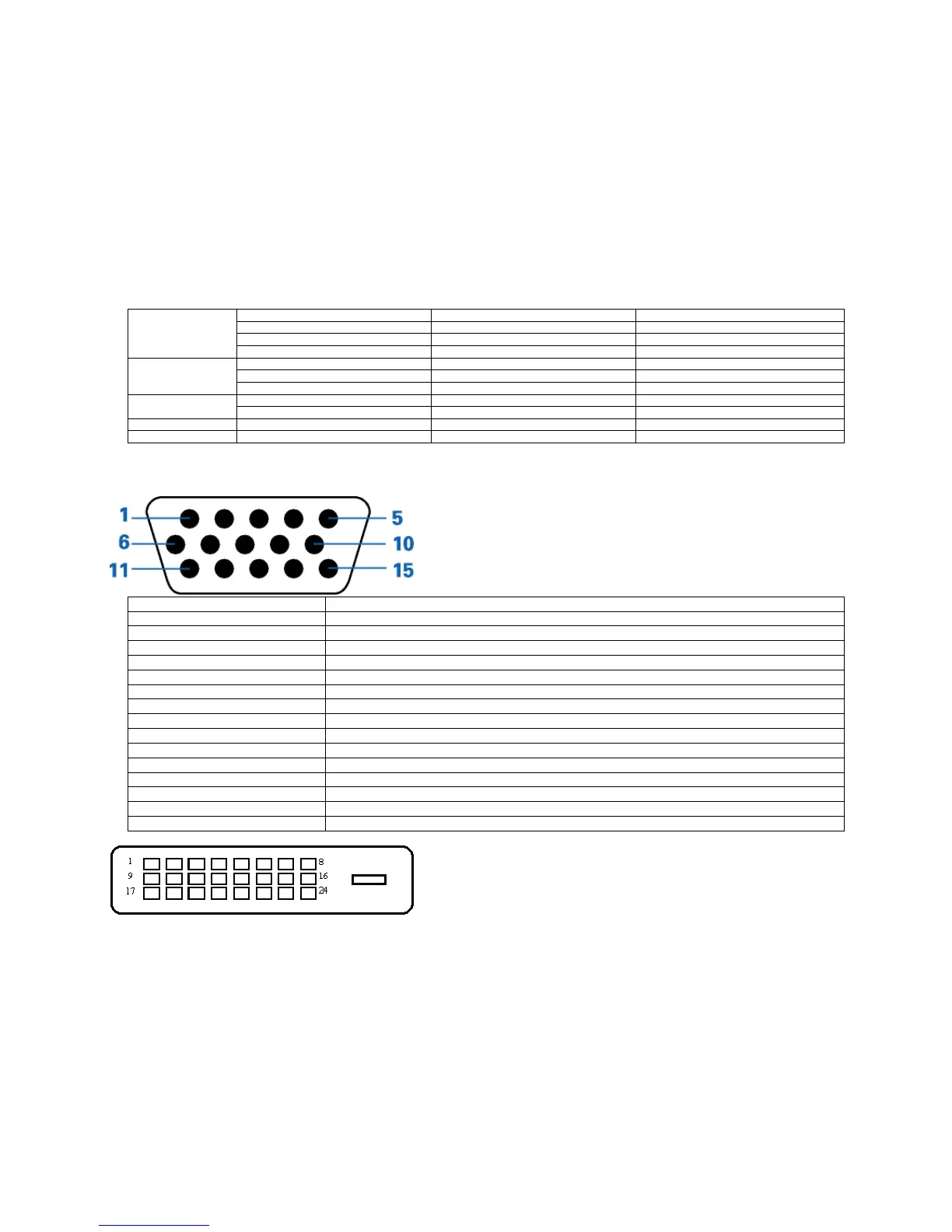

Pin Assignments
Pin Number 15-Pin Side of the Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 N.C.
5 Ground
6 GND-R
7 GND-G
8 GND-B
9 +5V
10 Detect Cable
11 N.C.
12 DDC-Serial data
13 H-sync
14 V-sync
15 DDC-Serial clock
