AOC AG241QX User Manual

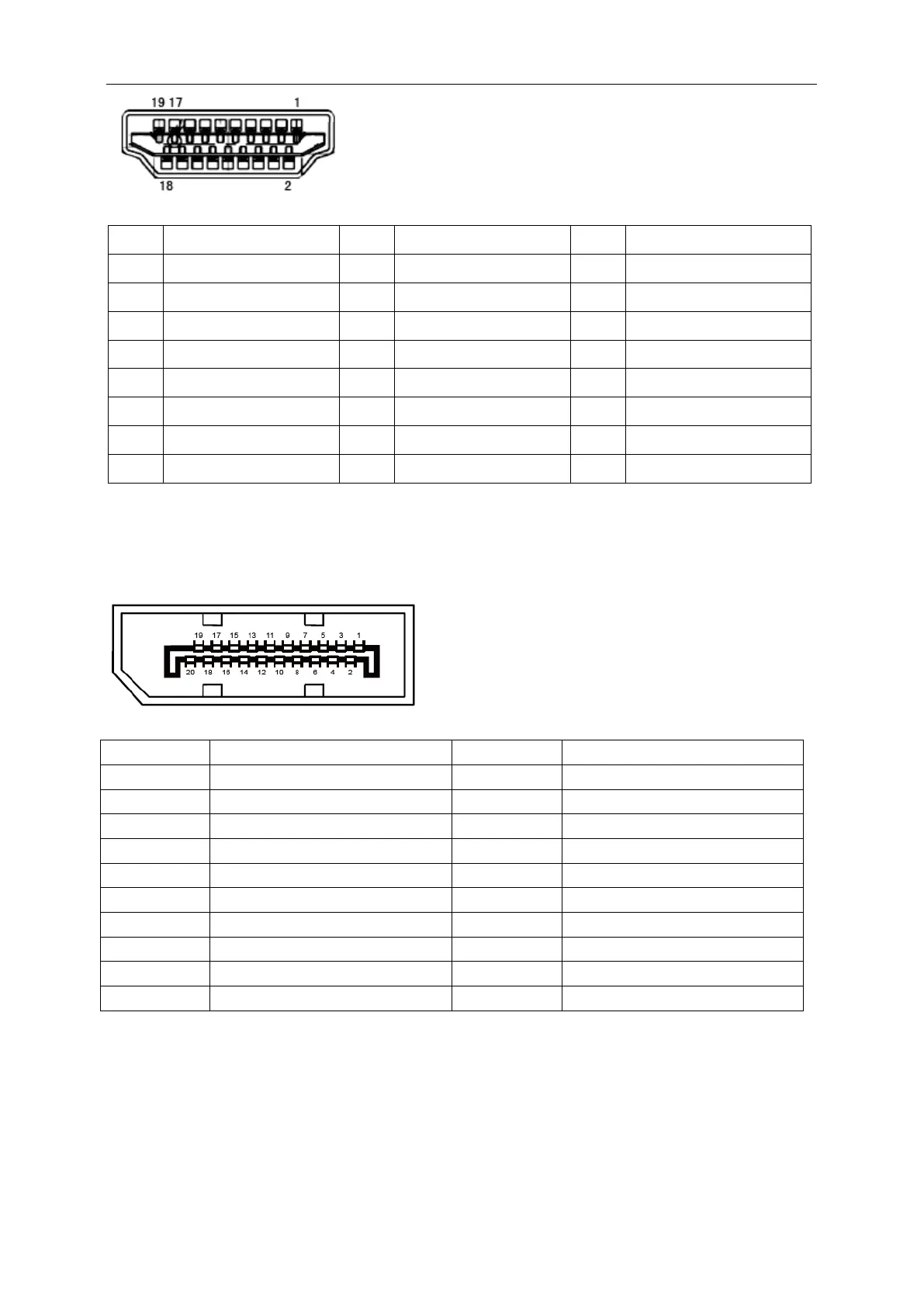

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR
52

AOC AG241QX Specifications

General

Color	black
Screen Type	led
Tiltable	yes
Webcam	no
OS Compatibility	windows
Screen Size	24 inches
Panel Type	tn
Aspect Ratio	16:9
Resolution	2560 x 1440
Native Resolution	2560 x 1440
Refresh Rate	144hz
Horizontal Viewing Angle	170 degrees
Vertical Viewing Angle	160 degrees
Response Time	1 milliseconds
Brightness	350 candela per square meter
Contrast Ratio	50, 000, 000:1
Synchronization	freesync (amd adaptive sync), g-sync (nvidia adaptive sync)
Horizontal Scan Rate	160 kilohertz
Built-In Speakers	yes
VGA Ports	1
DVI	1
Power Saving Mode	0.5 watts
Width with Stand	24.2 inches
Net Weight without Stand	16.1 pounds
