AOC e1620Swb User Manual

27

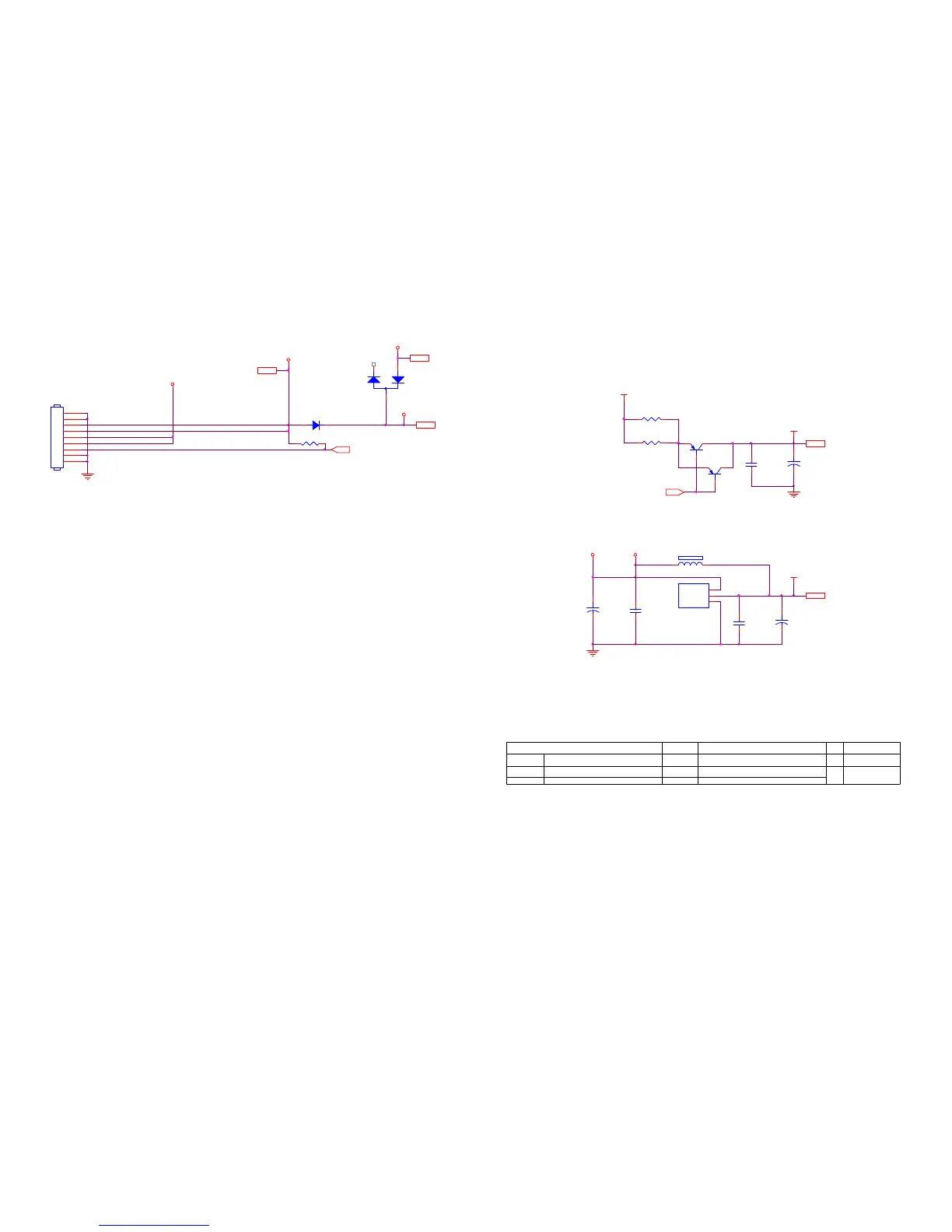

VCC3.3
+ C426
100uF16V
F
B
77Wednesday , March 09, 2011
715G3529-1
称爹 <>
05.Power
G4734-M01-000-0040-03-110119
OEM MOD EL Size
Rev
Date
Sheet
of
TPV MOD EL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬隔瓜絪腹
14.5V
C_PANEL_INDEX
R479
NC
DSUB_5V 2
14.5V
MVC C
VCC3.3 4, 5
Q410
MMBT2907A
U404
G1117-33T43UF
1
2
3
ADJ(GND )
VOUT
VIN
D401
NC/BAV99
3
1 2
VCTRL5
+ C427
100uF16V
CMVCC
PANEL_ID# 5
14.5V
Q409
MMBT2907A
DSUB_5V
C422
0.1uF/16V
C428
0.1uF/16V
C432
0.1uF/16V
+ C423
100uF16V
CMVCC1 5
CMVCC5, 6
R480
2.2 OHM +-5% 2WS
CN404
CONN
1
2
3
4
5
6
7
8
9
R450 NC
NC(R0402)
FB403 NC
VCC3.3
VCC1.8
VCC1.8 5
CMVCC1
D402
SM340A
CMVCC
CMVCC
CMVCC1
