AOC L42H961 User Manual

14

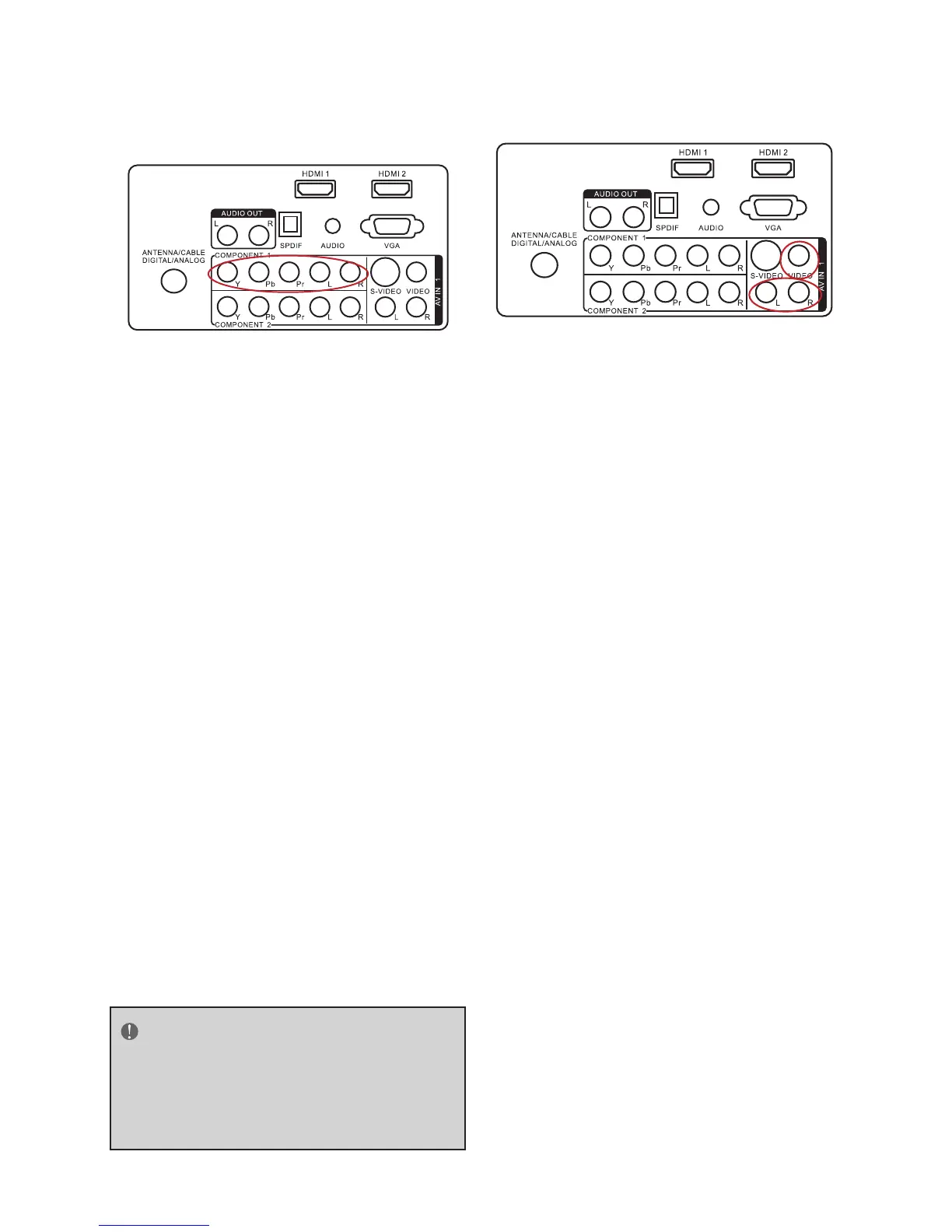

Using Component Video
Connecting your HDTV Set-Top Box
(Better):
1. Turn off the HDTV and HDTV Set-Top
Box.
2. Connect the Pr (red color) connector
on your HDTV Set-Top Box to the
corresponding Pr (red color) connector in
the Component group.
3. Connect the Pb (blue color) connector
on your HDTV Set-Top Box to the
corresponding Pb (blue color) connector
in the Component group.
4. Connect the Y (green color) connector
on your HDTV Set-Top Box to the
corresponding Y (green color) connector
in the Component group.
5. Using an audio cable (red and white
connectors), connect the cable to the
audio output connectors associated with
the Component output on your HDTV
Set-Top Box and connect the other end to
the audio connectors associated with the
Component.
6. Turn on the HDTV and HDTV Set-Top
Box.
7. Select Component using the SOURCE
button on the remote, side of the HDTV
or directly by pressing the COMP button
on the Remote Control.
NOTE

Refer to your HDTV Set-Top Box user
manual for more information about the
video output requirements of the product
or consult your cable or satellite operator.
Connecting Your Basic Set-Top Box
Using Composite Video
1. Turn off the HDTV and Set-Top Box.
2. Using an AV Cable, connect the Video
(yellow color) connector on your Set-Top
Box to the corresponding Video (yellow
color) connector in the AV group at the
rear of the HDTV.
3. Using the red and white connectors,
connect the cable to the audio output
connectors associated with the Video
output on your Set-Top Box and connect
the other end to the audio connectors
associated with the AV input at the rear of
the HDTV.
4. Turn on the HDTV and Set-Top Box.
5. Select AV using the SOURCE button on
the remote, side of the HDTV or directly
by pressing the VIDEO button on the
Remote Control.

AOC L42H961 Specifications

General

Comb filter	3D
Response time	6.5 ms
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Manual	Yes
Package depth	299 mm
Package width	1172 mm
Package height	858 mm
Package weight	25900 g
Certification	FCC, cULus, ROHS, EPA3.0
RF ports quantity	1
HDMI ports quantity	4
SCART ports quantity	0
Card reader integrated	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Headphone connectivity	3.5 mm
Sustainability certificates	ENERGY STAR
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	200 x 200 mm
Cables included	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	275.5 mm
Width (with stand)	1015.3 mm
Height (with stand)	677.5 mm
Weight (with stand)	21000 g
Depth (without stand)	97.7 mm
Height (without stand)	648.6 mm
Weight (without stand)	18200 g
