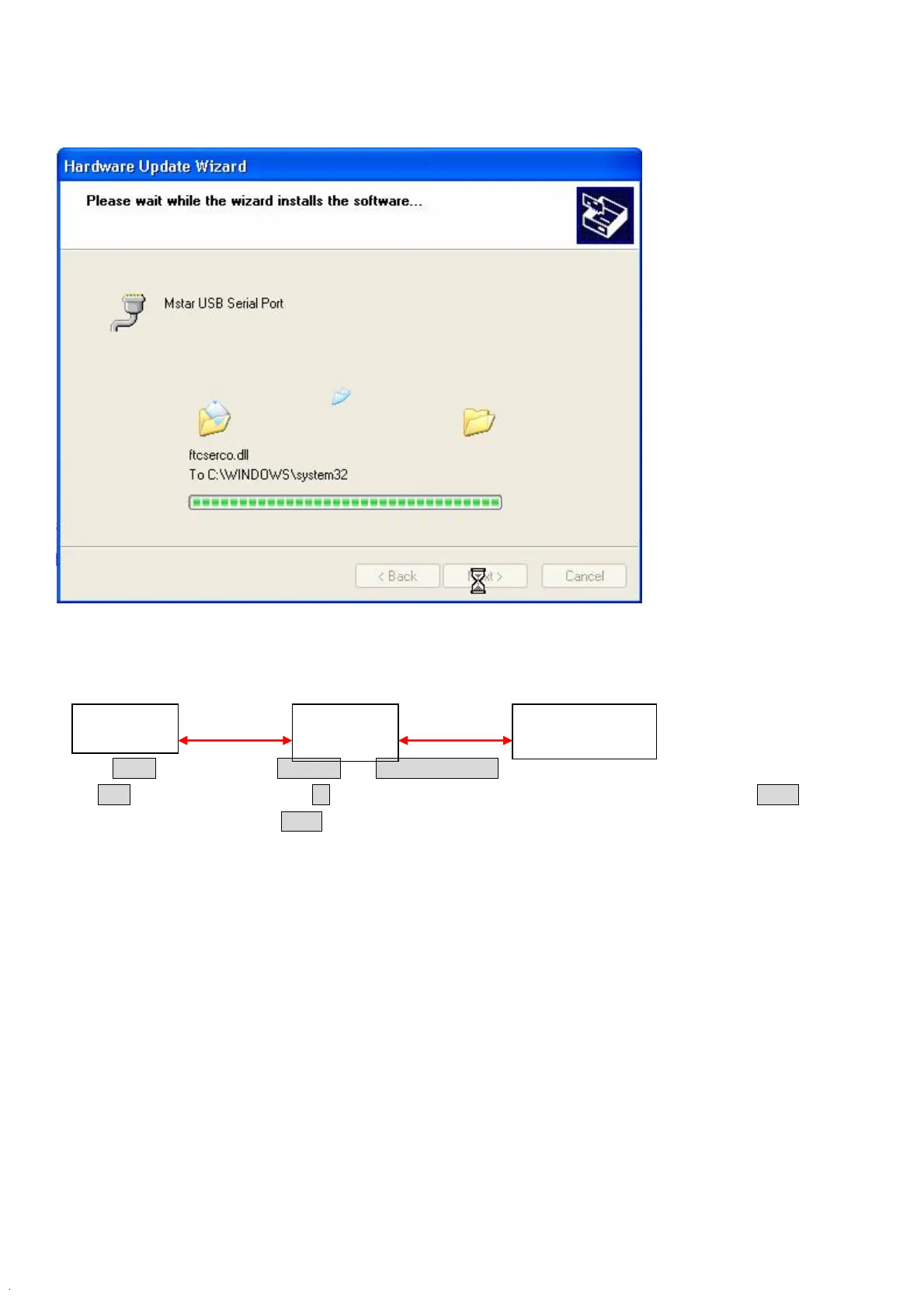

(3) When PC finds the drive file, it will give the prompts as in the figure below during the installation process. Please
click “Continue" to go ahead. The system will go through three drive installation processes, including Mstar USB Debug
Tool A, Mstar USB Debug Tool B, and Mstar USB SerialPort. They will be installed one by one.
Software burning
a.When the drives are installed, connect the Mstar USB Tool board to TV main board in the following way. Then connect
the power cord and run the software ISP-Tool V4.5.3.5.exe.
b.In the config menu bar, select Use USB and Auto release USB，Port Type under the Communication Setting items
select USB。Set the burning speed of 28 in I2C Speed Setting item, ISP Slave Address item menu select OX92，Serial
Debug Slave Address menu select 0XB2。
ISP burning
board
USB cable
Computer
TV mainboard
VGA interface
VGA cable
