- 12 -

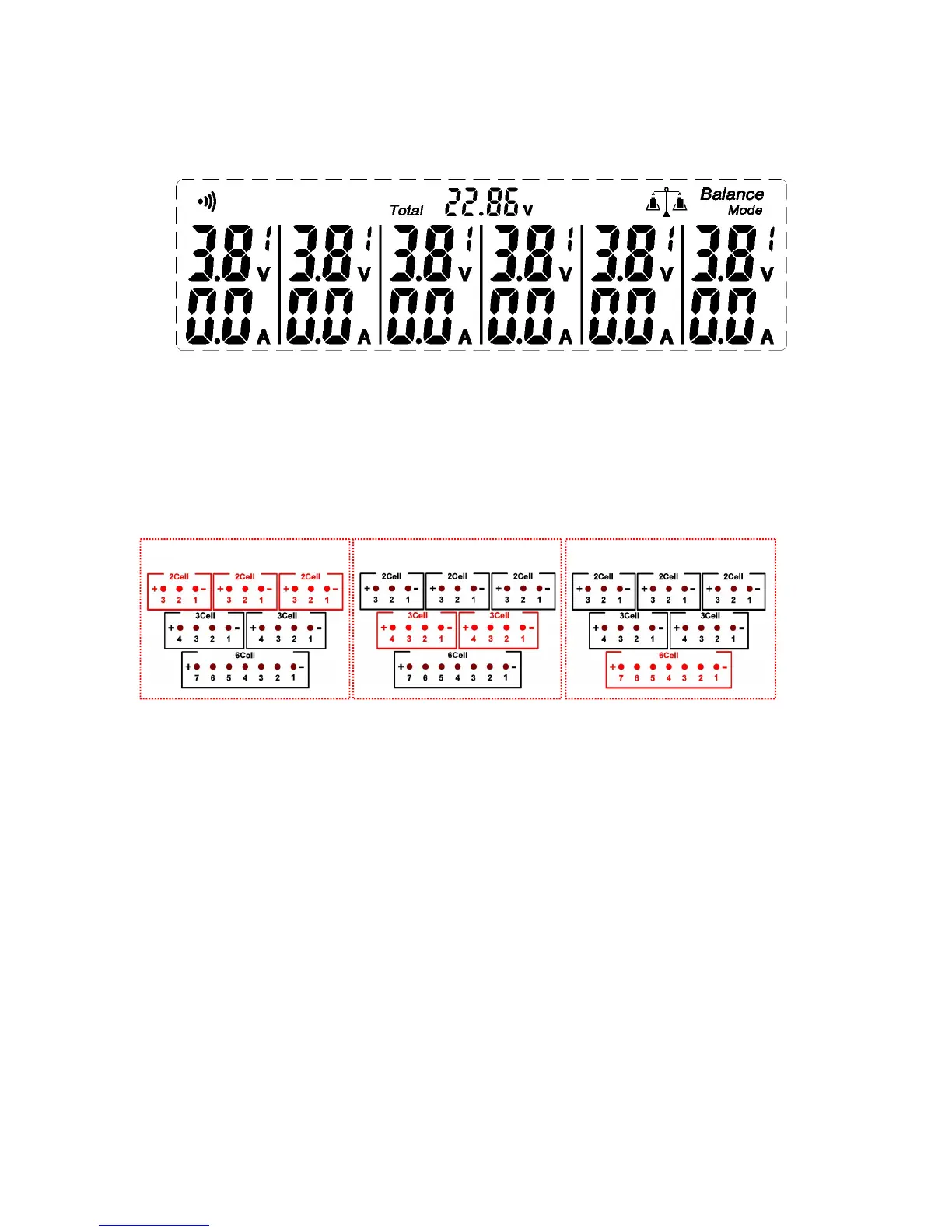

c. Press (ESC) to exit the Balance mode during any of the balance mode. Back
to standard mode, It will be indicate as below after balance finished.
6.Battery’s connection diagram.
2Cell x 3Pcs 3Cell x 2Pcs 6Cell x 1Pcs
Warning: 3 pieces 2 Cell Battery Pile or 2 pieces 3 Cell Battery Pile or 1 piece 6
Cell Battery Pile available connect one time Maximum. Otherwise, it will
burn the charger and battery pile.
1 Cell, 4 Cell, 5 Cell battery pile direct insert 6 Cell Port to use. Please bear in
mind the Positive and Negative.
