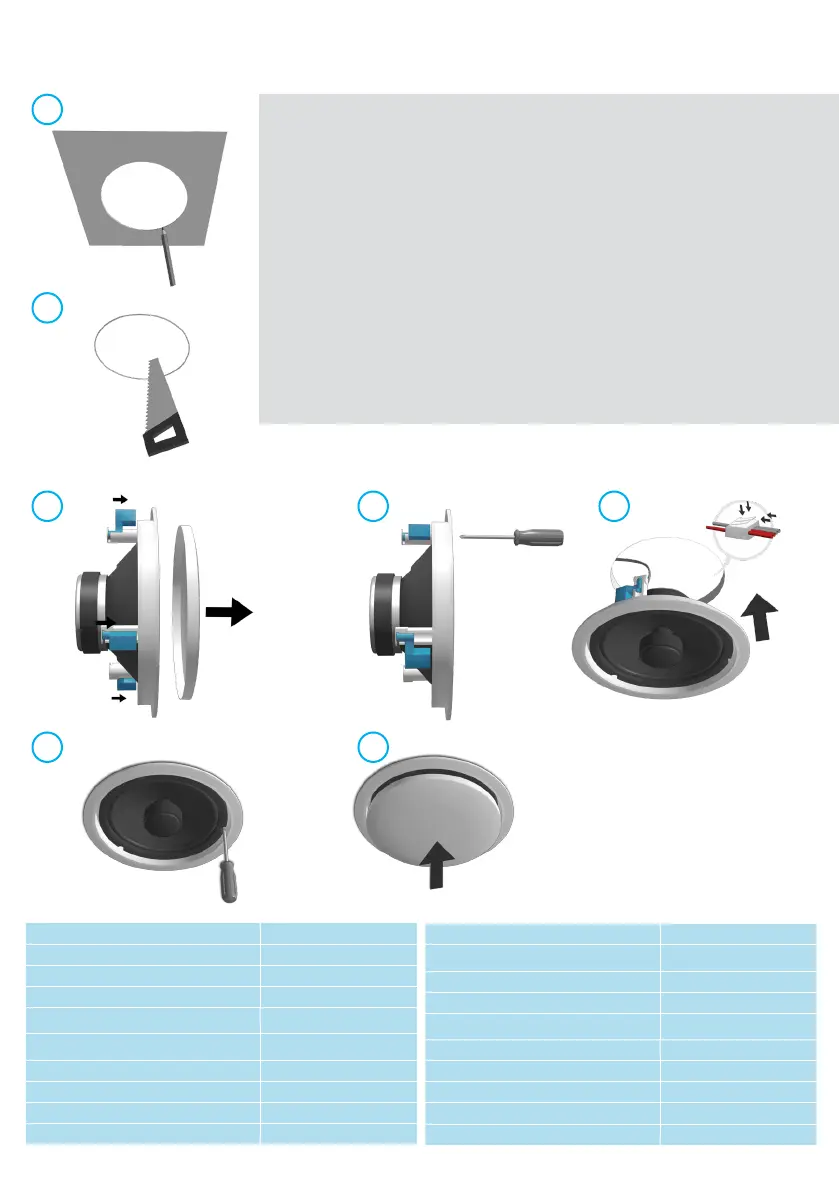

The loudspeaker is easy to install, due to its simple mounting system.
(1) Use the cutout template to mark the mounting hole.
(2) When making the hole in your mounting panel, double check if there are no cables
or any other obstructions behind the mounting panel. Cutting the mounting panel
without this check might result in damaged infrastructure or power lines. Please make
sure that the mounting structure is capable of safely supporting the speaker’s weight.
(3) Remove the speaker grille: turn the mounting clamps (dog-ears) outwards and push
them in the direction of the grille until it pops out. Remove the grille.
(4) Turn the dog-ears inwards again and tighten the dog-ear screws slightly to make them
stay in the inward position.
(5) Connect the speaker wires and insert the speaker in the precut speaker opening.
(6) Fasten the dog-ear screws carefully until the speaker sits safely in place. Do not
overtighten the dog-ear screws!
(7) Carefully push the grille back in place.
Mounting the loudspeaker
1
2
3
6
4
7
5
WWW.APART-AUDIO.COM
outside diameter 244 mm
depth 90 mm
cutout 223 mm
loudspeaker system 2-way
woofer size 8 inch
woofer cone material polypropylene
tweeter size 1 inch
mounting system 3 screws
impedance 8 ohms
low impedance dynamic power 60 watts
SPL 1W/1m 90 dB
max SPL 1m 107 dB
frequency response 50 - 20K Hz
main construction material ABS plastic
grille main material aluminium
IP rating 54
applicable low impedance yes
applicable in 100V no
Vertical dispersion angle 1000 Hz 180°
Horizontal dispersion angle 1000 Hz 180°
