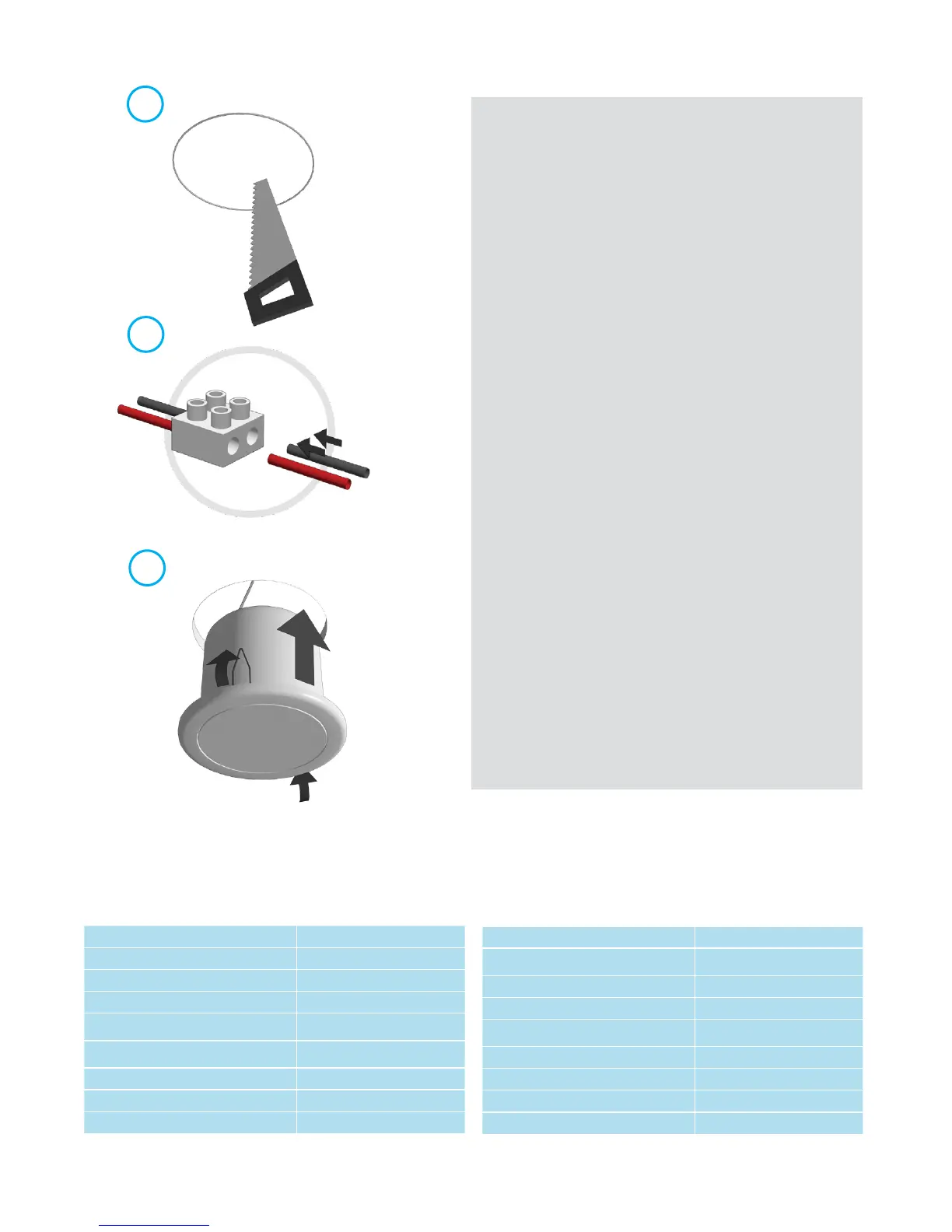

The loudspeaker is easy to install, due to its
simple mounting system.
(1) Cut out the mounting hole diameter =
108 mm. When making the hole in your
mounting panel, double check if there
are no cables or any other obstructions
behind the mounting panel. Cutting the
mounting panel without this check might
result in damaged infrastructure or power
lines. Please make sure that the mounting
structure is capable of safely supporting the
speaker’s weight.
(2) Connect the speaker wires.
(3) Insert the speaker in the pre-cut speaker
opening: (a) pull the 2 spring clamps
backwards and (b) carefully slide the
speaker in place until it sits firmly.
Mounting the loudspeaker
WWW.APART-AUDIO.COM
1
3
2
a
a
b
Technical specifications
outside diameter 135 mm
depth 107 mm
cutout 108 mm
loudspeaker system dual cone
woofer size 4 inch
woofer cone material paper
mounting system 2 springs
impedance 16 ohms
low impedance dynamic power 30 watts
SPL 1W/1m 88 dB
max SPL 1m 103 dB
frequency response 100 - 20 kHz
main construction material steel
grille main material aluminium
IP rating 60
applicable low impedance yes
applicable in 100V / 70V no
dispersion angle 1000 Hz 180°
