Technical specifications
100V / 70V
low impedance
The loudspeaker is easy to install, due
to its simple mounting system.
The loudspeaker is easy to install, due to its
simple mounting system.
(1) Cut out the mounting hole with diameter
= 108 mm. When making the hole in your
mounting panel, double check if there
are no cables or any other obstructions
behind the mounting panel. Cutting the
mounting panel without this check might
result in damaged infrastructure or power
lines. Please make sure that the mounting
structure is capable of safely supporting the
speaker’s weight.
(2) Connect the speaker wires.
(3) Insert the speaker in the precut speaker
opening: (a) pull the 2 spring clamps
backwards and (b) carefully slide the
speaker in place until it sits firmly.
NOTE: for use in low impedance systems,
always disconnect the 100/70 volt
transformer and connect the low impedance
speaker wires directly at the speaker.
1
3
2
a
a
b

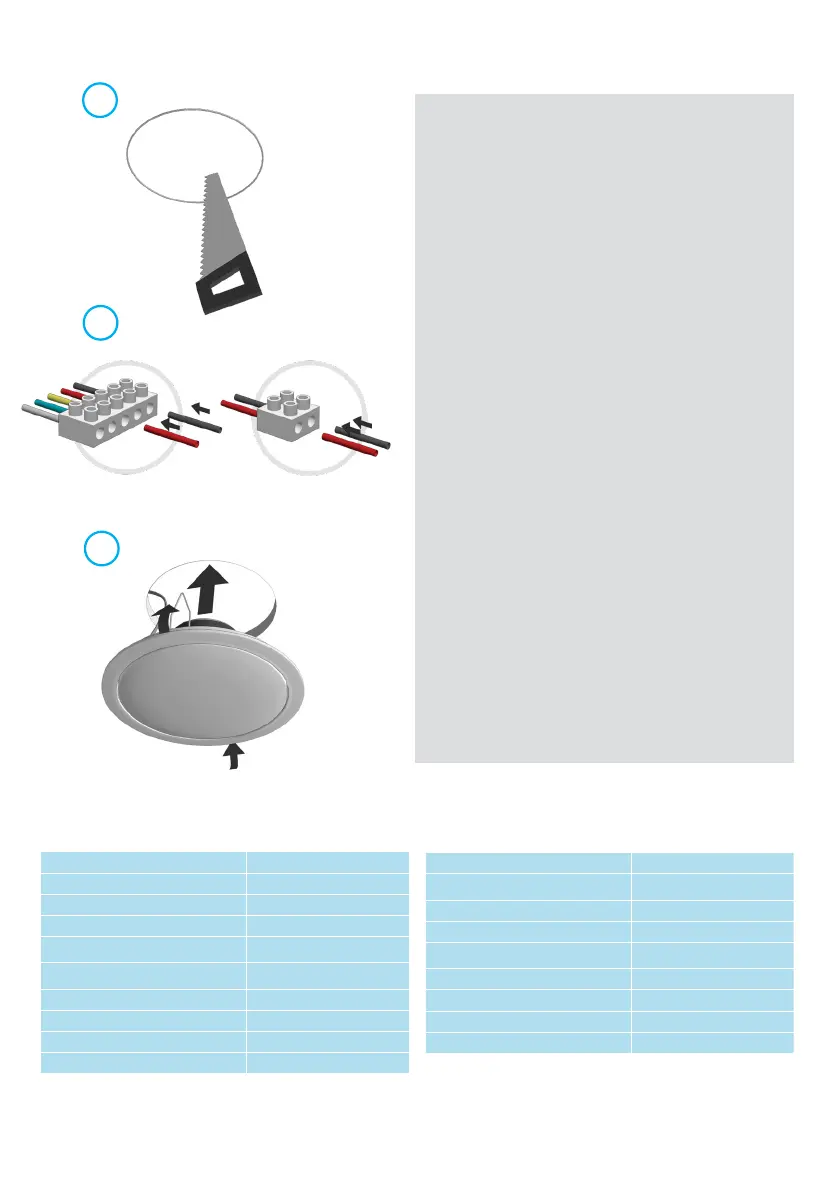

Mounting the loudspeaker
outside diameter 135 mm
depth 74 mm
cutout 108 mm
loudspeaker system dual cone
woofer size 4 inch
woofer cone material paper
mounting system 2 springs
100/70V* power taps 6 - 3 - 1.5 – 0.75* watts
impedance 16 ohms
low impedance dynamic power 30 watts
SPL 1W/1m 88 dB
max SPL 1m 103 dB
frequency response 90 - 19 kHz
main construction material steel
grille main material aluminium
IP rating 50
applicable low impedance yes
applicable in 100V / 70V yes
dispersion angle 1000 Hz 180°
*0.75 W: 70 volt only
