APART MICPAT-2 - Unit Connection and Wiring; Connecting the Unit

SELECTIVE PAGING MICROPHONE
2

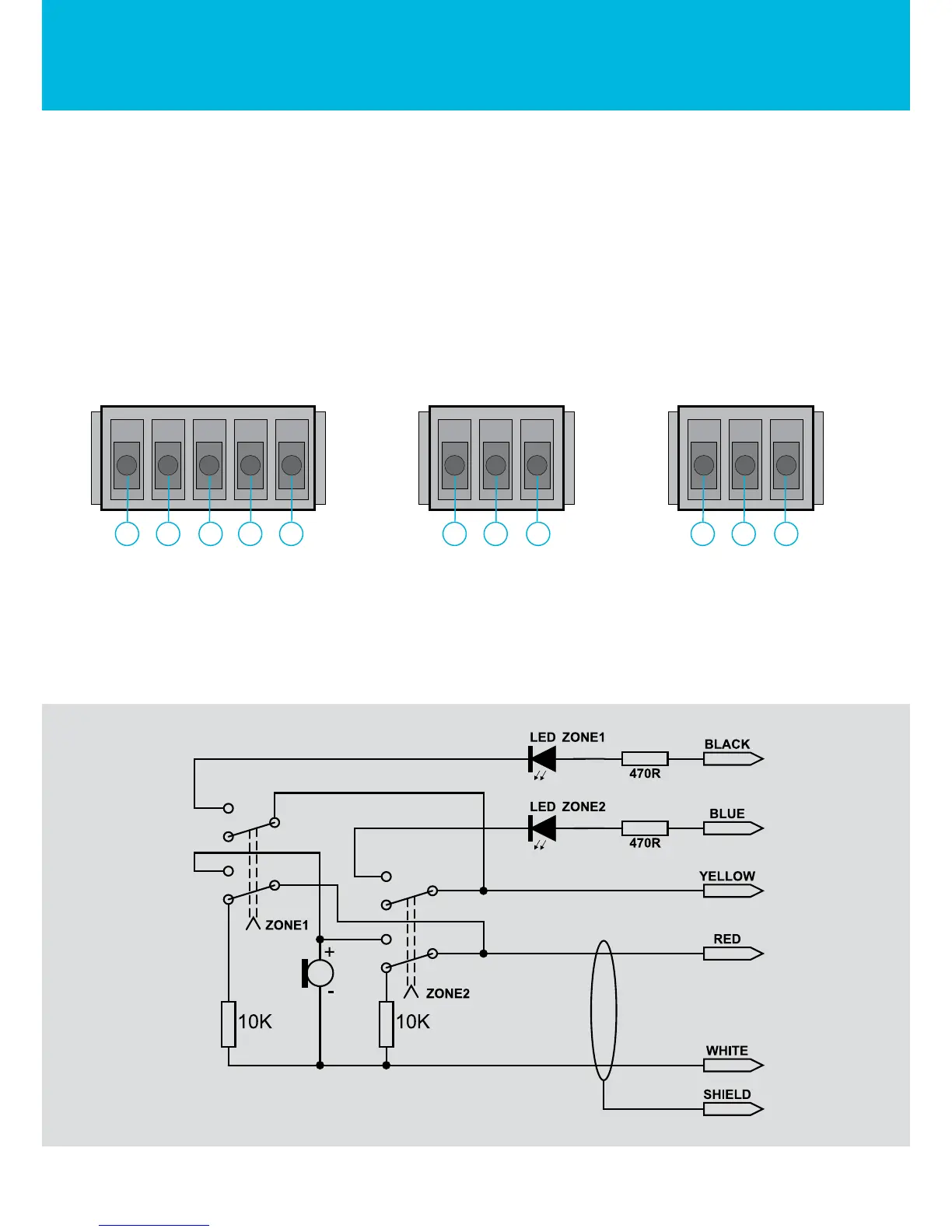

Connecting the unit
Consult the manual of your master unit before connecting the microphone. MICPAT-2 has a 6 wire
connection and offers a balanced microphone level output and 2 separate paging contacts with
led indication.
WWW.APART-AUDIO.COM
1. red
2. white
3. yellow / shield
4. black
5. blue
5 pole euroblock connector microphone paging switches
1. red
2. white
3. shield
1. black
2. blue
3. yellow
+ - G Z1 Z2 + - G GZ1 Z2
1 2 3 4 5 1 2 3 1 2 3
