4. Route the new long harness along the outer edges of the enclosures following the path of the

original wiring as closely as possible. Use tie-wraps when necessary.

5. Attach the new long harness to the transponder in the CTEG4M Enclosure. See figure below for

details.

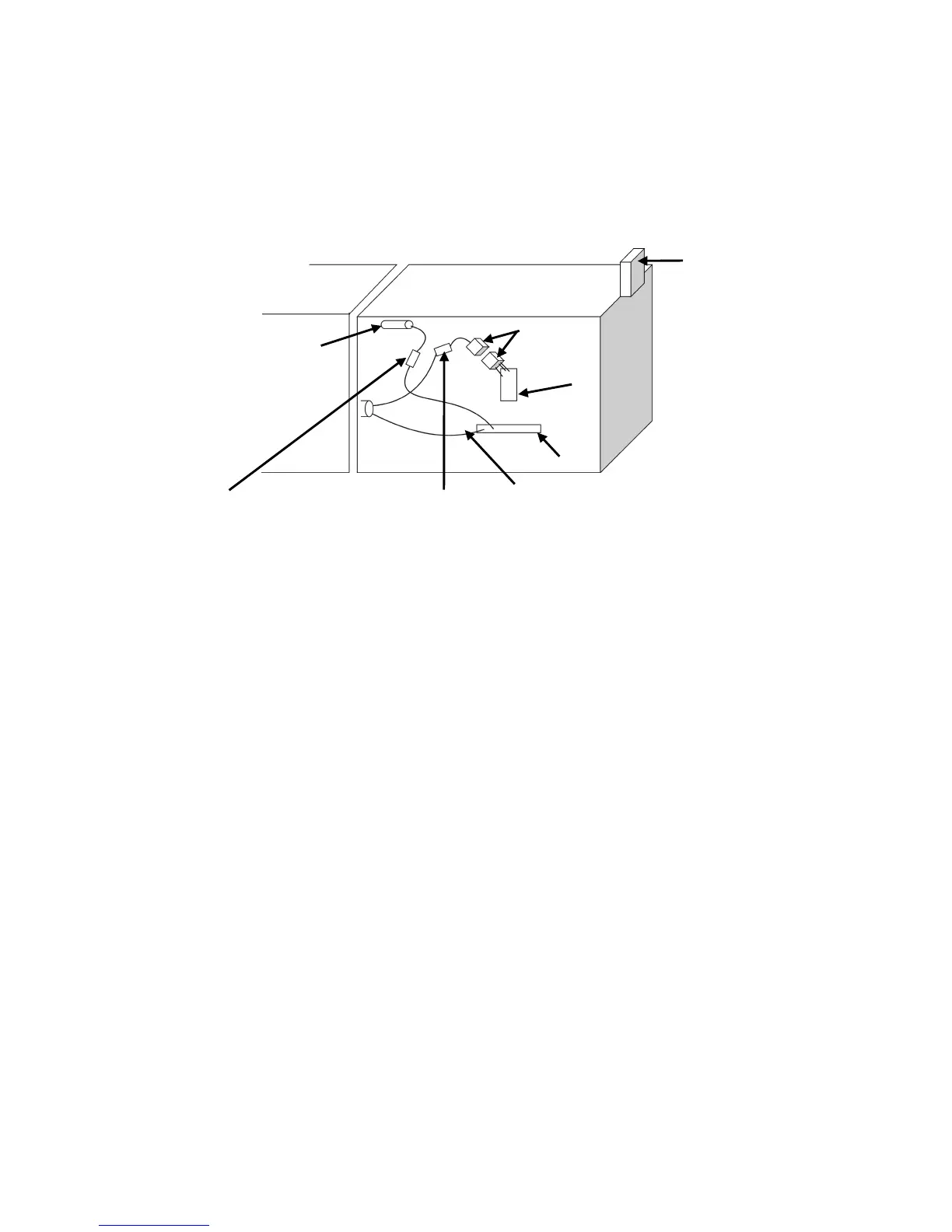

Rear View CTEG4M Enclosure

6. Verify system functionality.

• Force the engine to crank, allowing failure to start. An error message should appear at

the head-end site.

• Turn the generator ON. Head-end site operators should see the engine status as ON.

• Turn the generator OFF. Head-end site operators should see the engine status as OFF.

Connect Power to the Enclosures

1. Reconnect the battery in the generator enclosure.

2. Switch the battery circuit breaker ON.

3. Switch the utility circuit breaker ON.

Utility Meter

XP7 connector

for transponder

Ground Bar

Transponder

Existing Wiring

harness for

Generator Control

: Cut the original

wire to Pin #7. Attach

the new long harness

wire to the plug side,

using a butt-splice.

ew long harness

: Attach the wire

previously cut from

Pin #7, to the ground

bar using a butt-

splice. (Wire NOT

included).
