14 InRow™ Chilled Water Air Conditioners Technical Specifications 990-4618A-001

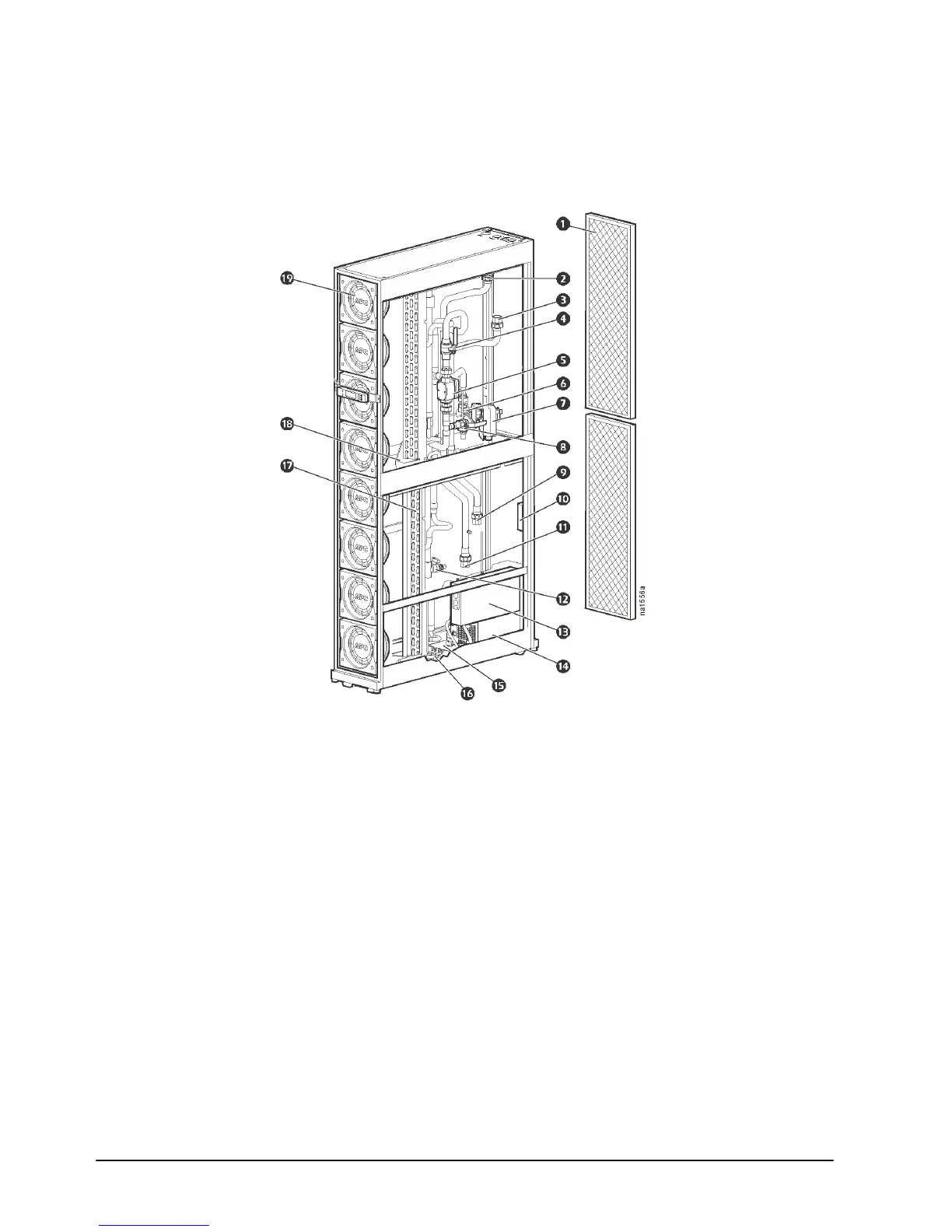

Internal mechanical components—ACRC100 series
Air filter
Bottom supply connection (optional)
Top supply connection (optional)
Drain valve (cap is installed at factory)
Top return connection (optional)
User interface connection box
2-way supply valve (1-inch)
Power supply unit (PSU)
Flow meter
Bottom condensate drain pan
3-way valve
Condensate floats
2-way or 3-way valve with flow control
actuator
Coil
2-way valve (3/4-inch) bypass shut-off
Top condensate drain pan
Bottom return connection (optional)
Fan
Condensate pump
