5

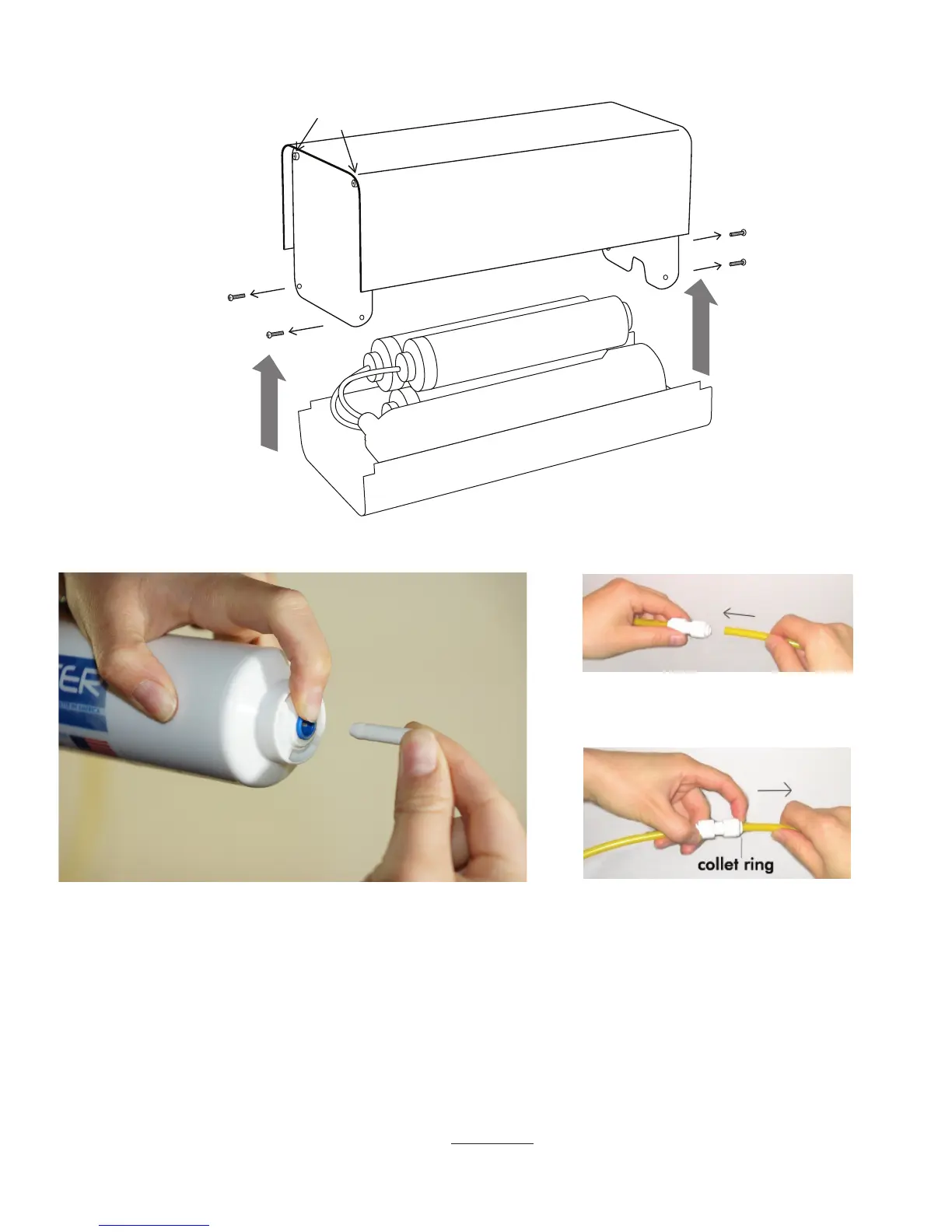

Connect Tubing
Press down on collet
to pull out tubing
Figure D1
Figure C
Figure D2
Figure D3
How to Connect: - See Fig. D2. Push the tubing into the Quick-Connect fitting, then gently
pull back on the tubing to make sure connection was secure.
- No inserts, sleeve, or nuts are needed to secure the connection.
- No Teflon tape!
To Disconnect: - See Fig.D3. Push in and hold down on the collet ring square against
the fitting. With the collet held in this position the tube can be removed.
DO NOT REMOVE
