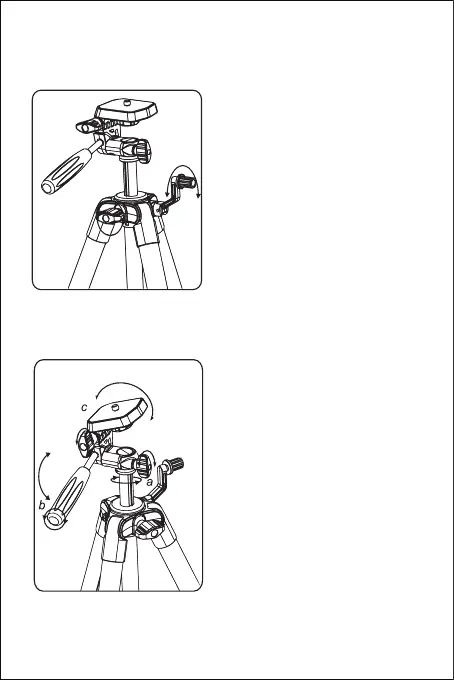

Panning, pitching and 90 degree shooting opera-
tion (Fig.2)
Raising and Lowering the Center Column. (Fig.3)
a: Rotating the horizontal locking knob
counter-clockwise to loosen for smooth
consistent panning,rotating oppositely
to tight it.
b: Rotating the handle bar
counter-clockwise to loosen for smooth
consistent tilting, Rotating oppositely to
tight the tilt knob.
c: Rotating the vertical flip knob
counter-clockwise to adjust the angle of
the loading plate, flip up to 90 degree.
Rotating oppositely to tight it.
To raise or lower the center column,
turn the center locking knob
counter-clockwise and set the column
to the desired position. While holding
the column in position, turn the column
locking knob clockwise to secure the
column in place. Don't over tighten the
center column lock, as this could
damage the threads.
- 02 -
