320D
Compellor
Page 34 Page 35
Stereo Plug
Male XLR
Female XLR
Don’t Connect Pin 3
Ground Shield This End Only
Ground Shield This End Only
To 207
Insert Jack
To Equipment Input
From Equipment Output
Tip
Ring
Sleeve

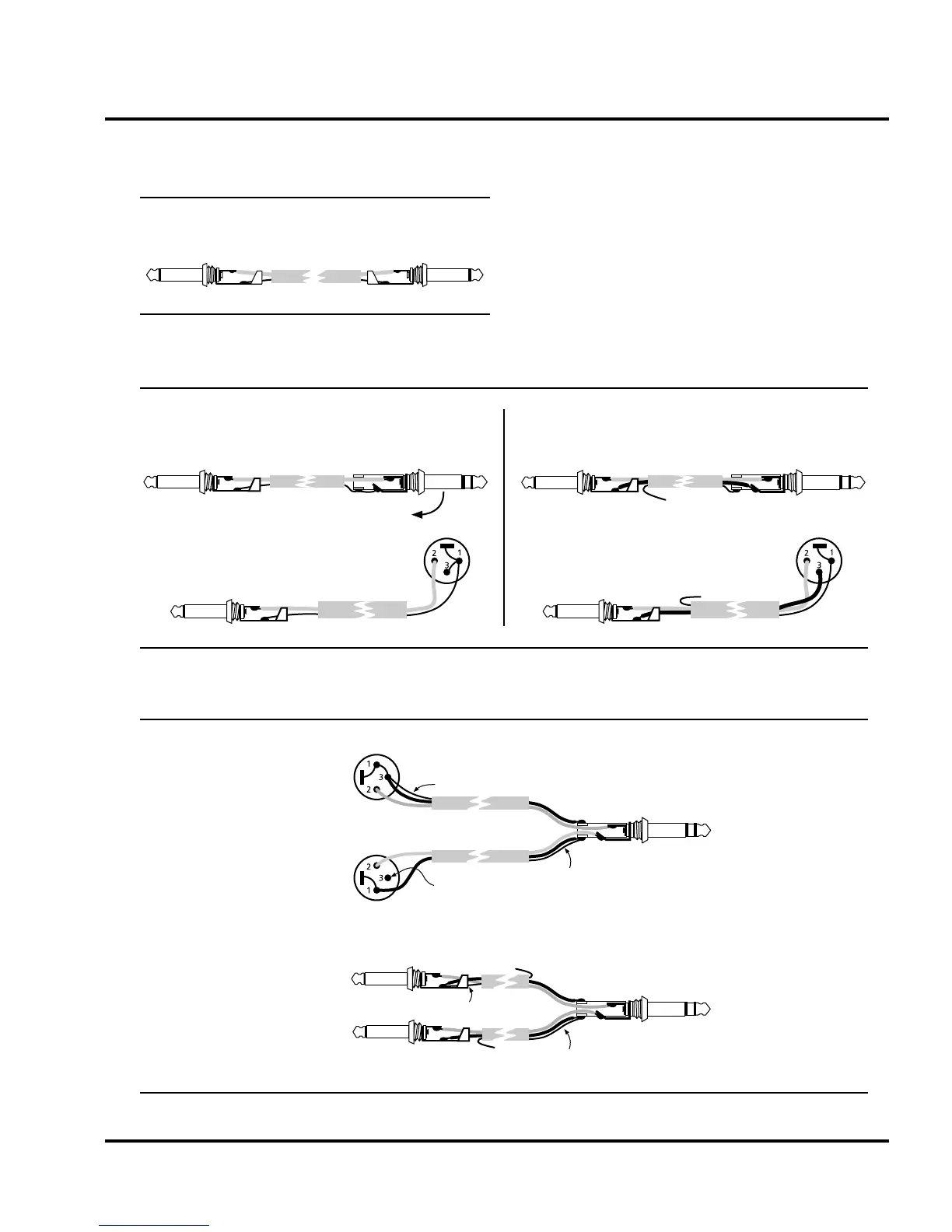

PART 3: UNBALANCED to UNBALANCED
Mono (TS) Phone Plug Mono (TS) Phone Plug
PART 4: UNBALANCED OUT to BALANCED IN
Mono (TS) Phone Plug Stereo (TRS) Phone Plug
Standard Method
Standard Cable (Guitar Cord)
Mono (TS) Phone Plug Stereo (TRS) Phone Plug
Enhanced Method (Pseudo Balanced)
Advantage: Reduced Hum and Noise Pickup
Mono (TS) Phone Plug
Male XLR
Mono (TS) Phone Plug
Male XLR
PART 5: “Y” INSERT CABLES
To 207
Insert Jack
To Equipment Input
From Equipment Output
Ground Shield This End Only
Ground Shield This End Only
Mono (TS) Phone Plug
Mono (TS) Phone Plug
(Guitar cord of Part 3 above usualy works just as well)
Not Used
Not Used
Appendix D
