1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
17
17
18
19
20
22
23
24
26
25
26
21
10
Sr. No. Description Sr. No. Description
1 Input Line Cable 14 Output Sense Terminals
2 Input Fuse 15 Analog Interface Connector
3 Input R. F. Filter 16 DIP switches for Analog Interface
selection
4 VSP-PFC-1.2KW-1103D, PCB 17 Cooling Fans
5 Input ON/OFF Switch 18 SBC-IEB-0504A, PCB (For GPIB)
6 Heat Sinks 19 VSP-POT-IMON-0604A, PCB
7 PFC Choke 20 VSP-FPDAC CONV-0604A, PCB
8 DC DC Converter Transformer 21 Voltage Monitoring Terminals
9 VSP-DPM-CONT-1204D, PCB 22 VSP-DPM-1UFP-0604D, PCB
10 VSP-FAN-CNT-1103C, PCB 23 Potentiometers for control
11 VSPDDC-1.2KW-0704E, PCB 24 SET, ON/OFF switch Assembly
12 Digital Interface PCB 25 Earth Terminal
13 Output Power Terminals 26 Handles

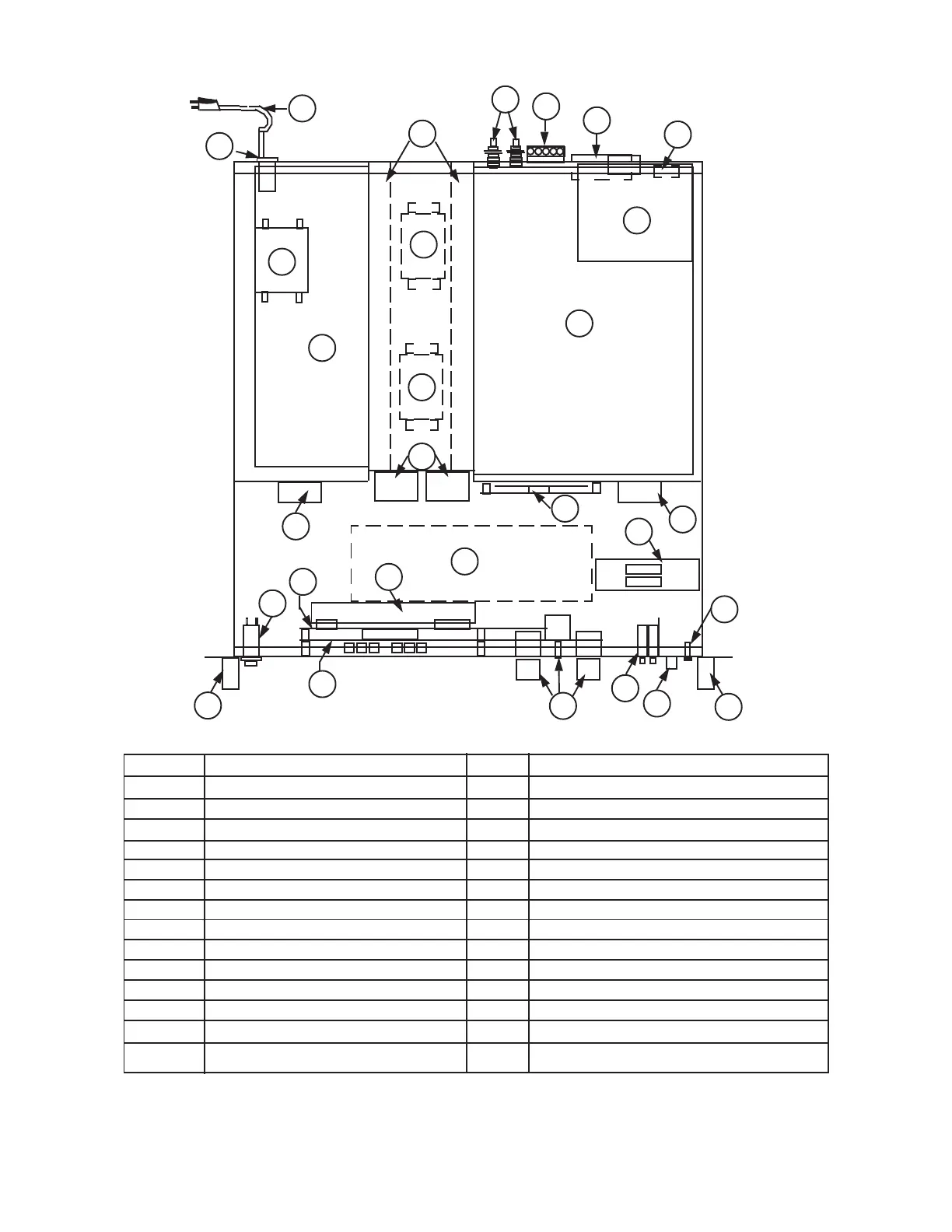

GENERAL ASSEMBLY DRAWING OF VSP SERIES POWER SUPPLY
13
