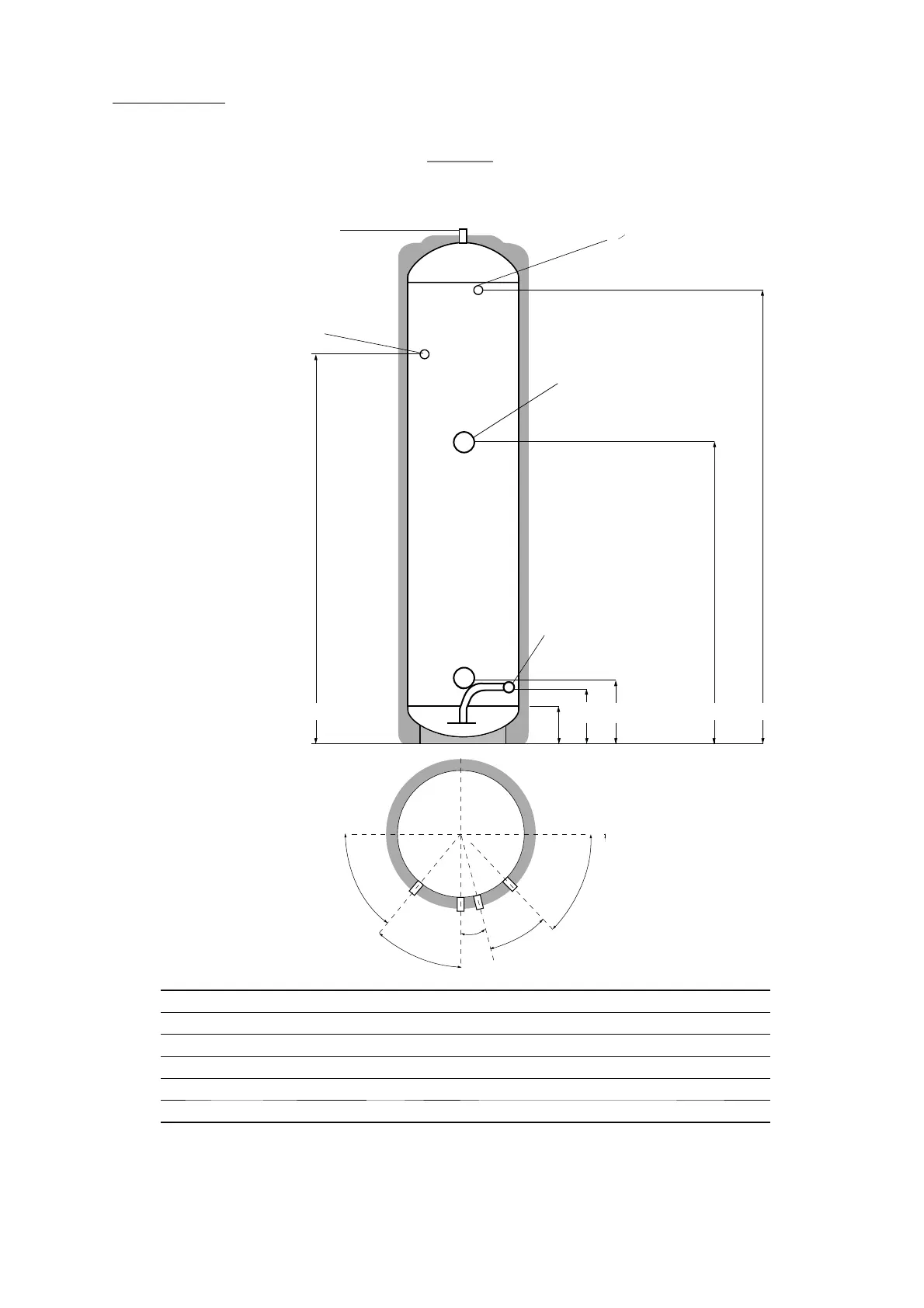

STAINLESS UV -
SLIMLINE DIRECT
B
A
120.00
“
F PTRV BOSS
1
2
D A B
C G
22mm HOT
DRAW - OFF
22mm SECONDARY
RETURN (not always tted.
See table)
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
SECOND IMMERSION HEATER
(not always tted. See table)
40.0˚
45.0˚
15.0˚
30.0˚
50.0˚
CODE HEIGHT DIAMETER A B C D G ERP BAND LOAD PROFILE kWH/Annum
EDS90 1048 478 175 210 610 N/F 858 D M 1451
EDS120 1236 478 175 210 710 N/F 1046 D M 1461
EDS150 1424 478 175 210 810 N/F 1234 E M 1502
EDS180 1674 478 175 210 910 N/F 1484 D L 2791
EDS210 1987 478 175 210 1100 1500 1797 D L 2837
TECHNICAL SPECIFICATIONS
09
STAINLESS UV
UNVENTED HOT WATER CYLINDERS
