CONNECTED TO BOILER WITH PUMP OVER-RUN FACILITY
E N L 1 2 3
TP5000
E N L 3 4 5
TP9000
0
W Y G/Y
Green Plug
B1
G/Y
Br
L N E SLB LP
Boilder with over run
BL
BR GR OR
Red Plug - Heating 1
BL
BR GR OR
Yellow Plug - Heating 2
B1
Br Gr Or
Blue Plug - Water

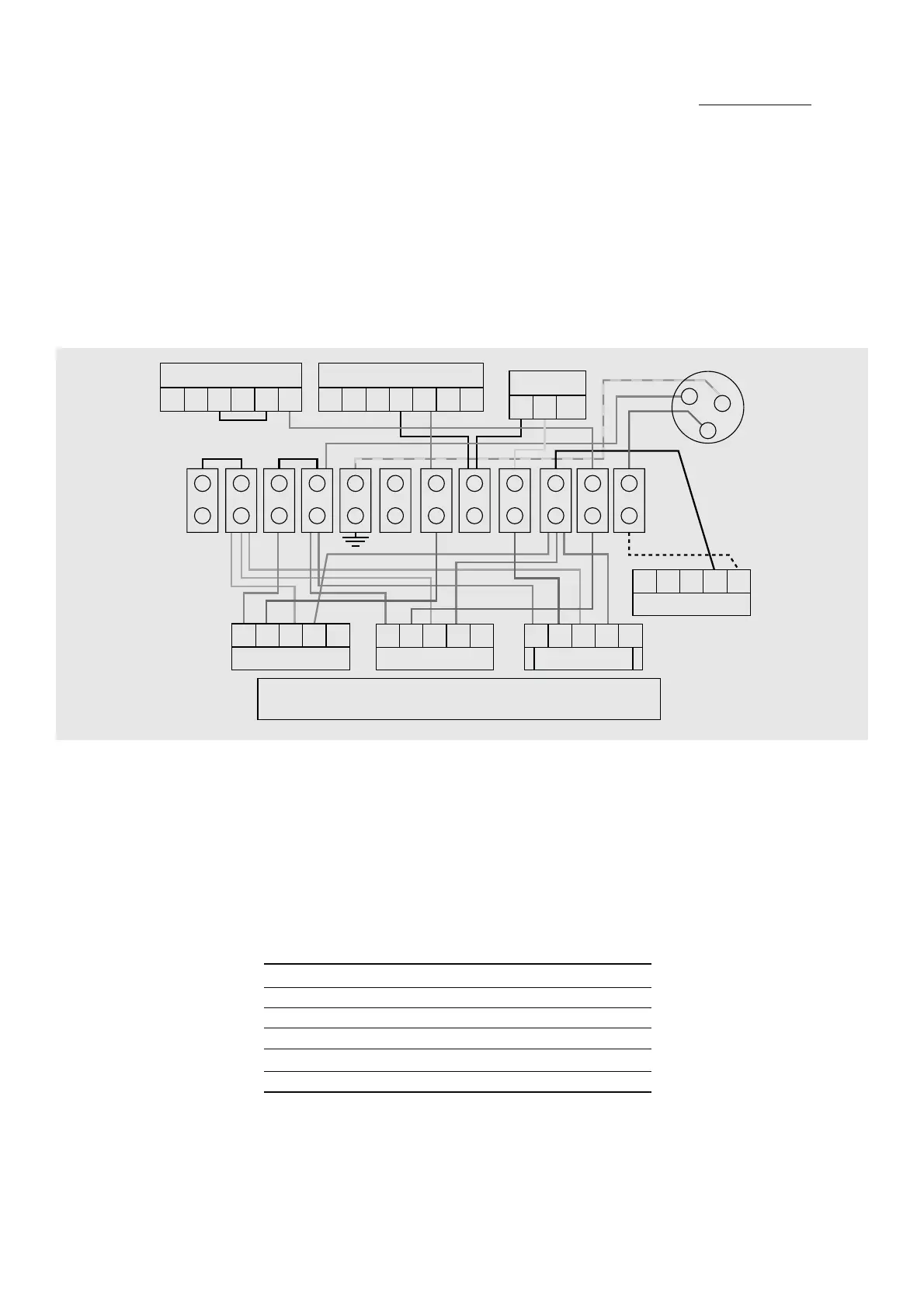

Wiring Diagram for Twin Zone Heating and Hot Water
TP9000 + TP5000 to system using boilder to control pump
1 2 3 4 5 6 7 8 9 10 11 12
Pump
INSTRUCTION FOR CONNECTION TO A BOILER WITH PUMP
OVER RUN FACILITY SUCH AS IDEAL LOGIC HEAT
1.Disconnect brown pre-wire pump flex from position 10
2.Reconnect brown pre-wire pump flex to position 12
3.Connect 5 core cable between boiler and wiring control
centre to following positions
WIRING CENTRE BOILER
TERMINAL 1 PERMANENT LIVE L
TERMINAL 3 PERMANENT NEUTRAL N
TERMINAL 5 PERMANENT EARTH E
TERMINAL 10 SWITCHED LIVE TO BOILER SL B
TERMINAL 12 SWITCH LIVE TO PUMP L P
18
STAINLESS UV
UNVENTED HOT WATER CYLINDERS
