95 -
iBook (14.1 LCD 16 VRAM) Take Apart
Reed Switch Board
4.
Warning:
When removing the tape that bundles the reed switch cable assembly
to the AirPort Card antenna cable, be careful not to strain or pinch the cables.
Replacement Note:
When installing the replacement reed switch board and cables,
use new tape to bundle the cables together.

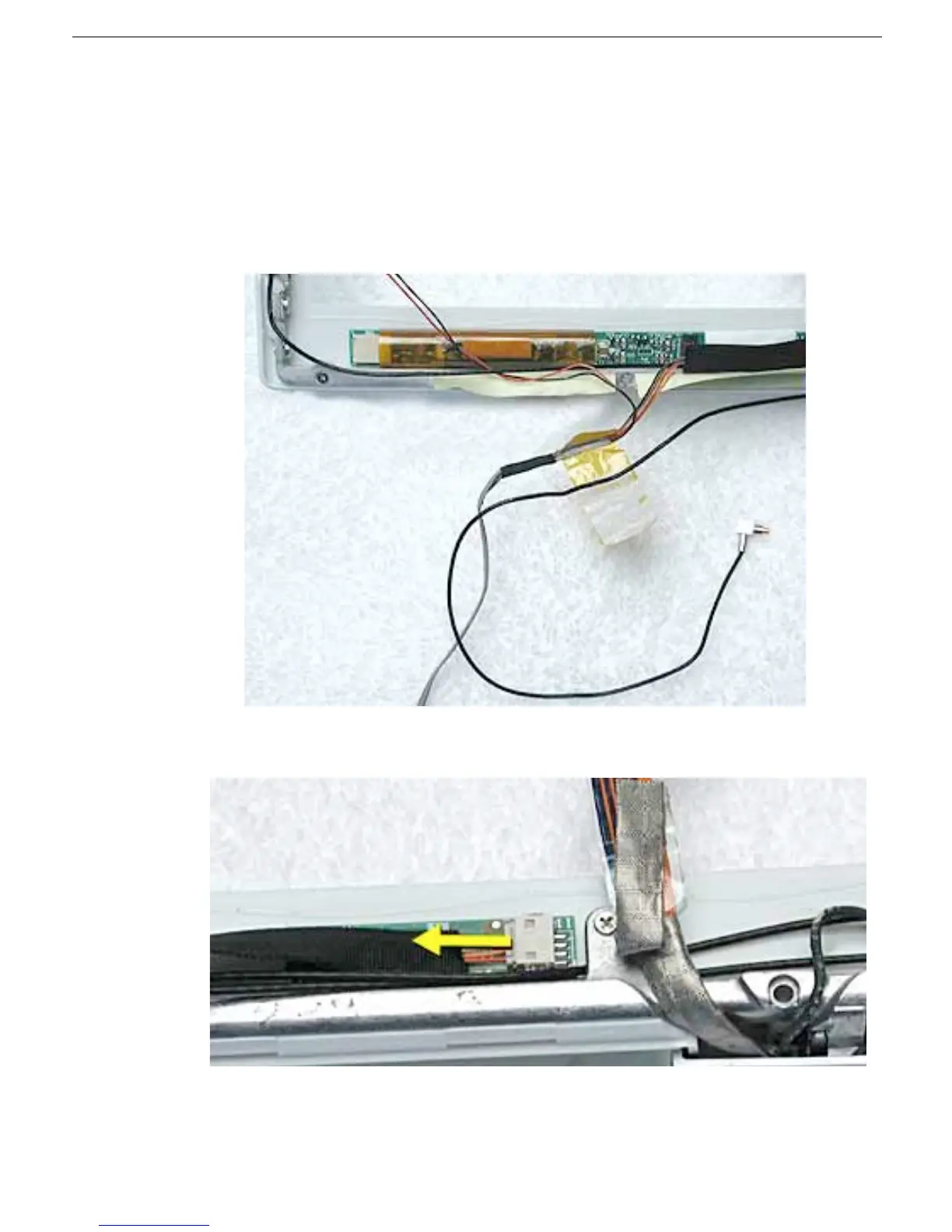

Remove the tape to free the AirPort Card antenna cable from the reed switch cable
assembly
5. Disconnect the data cable from the inverter board at CN1.
