iBook (14.1 LCD 16 VRAM) Take Apart - 36
Top Shield
Procedure

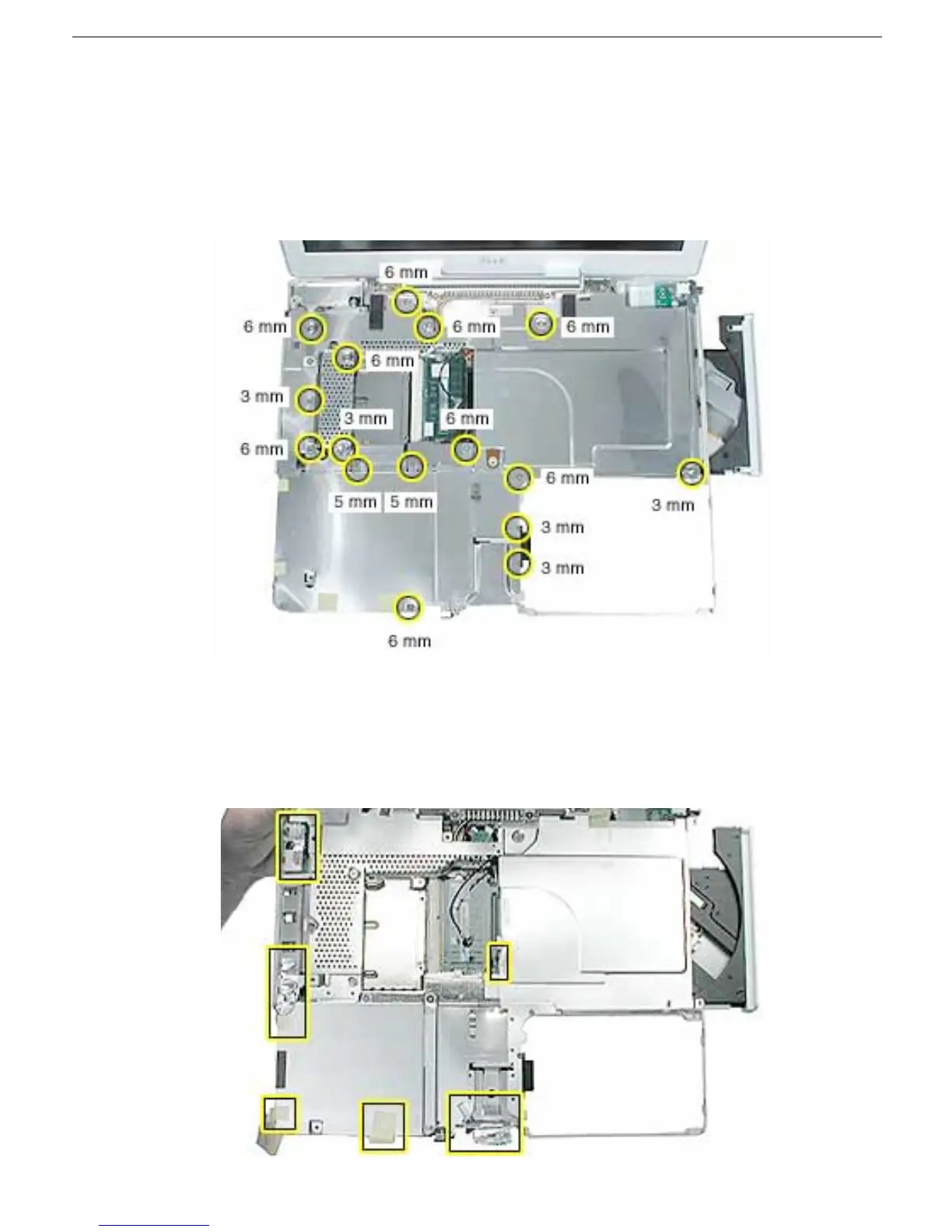

1. With the computer on a soft cloth, remove the 16 Phillips screws:
• nine 6-mm long screws
• two 5-mm long screws
• five 3-mm long screws
2. Using a black stick, carefully peel up, but do not remove, the foil strips and pieces of
tape.
Note: When reassembling the computer, reuse the foil and tape to secure the
replacement top shield.
