iBook (14.1 LCD 16 VRAM) Take Apart - 68
Logic Board

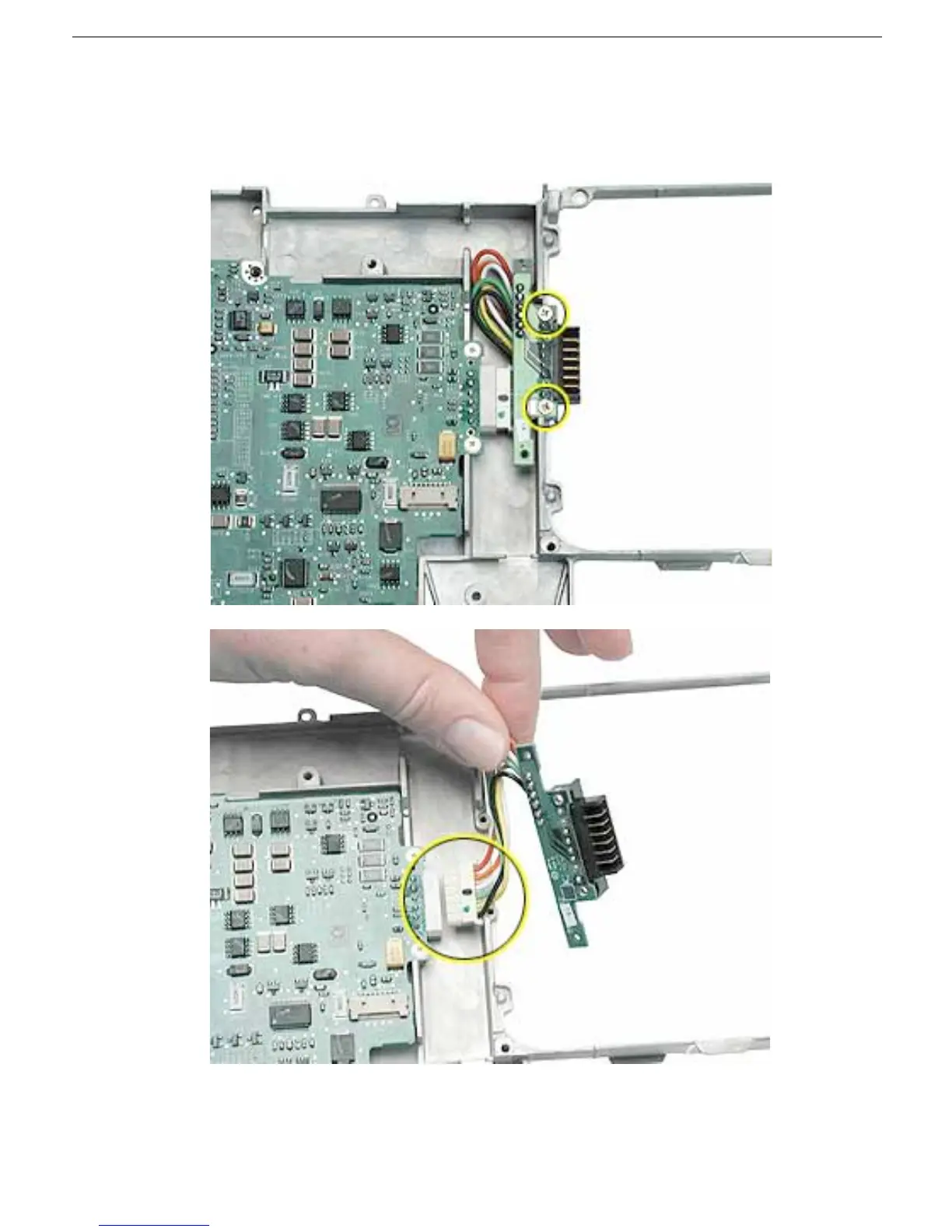

13. If replacing the battery transfer board, remove the two screws that connect the battery
transfer board to the rib frame. Then disconnect the battery transfer board from the
logic board.
