Logic Board
1. Release the thumb screw that secures the logic board to the chassis. (Figure 13)
2. Move the logic board forward and up slightly to release it from the four mounting pegs.
3. Tilt up the end of the logic board nearest the blowers so that the board ports clear the
chassis.
4. Remove the board from the server.

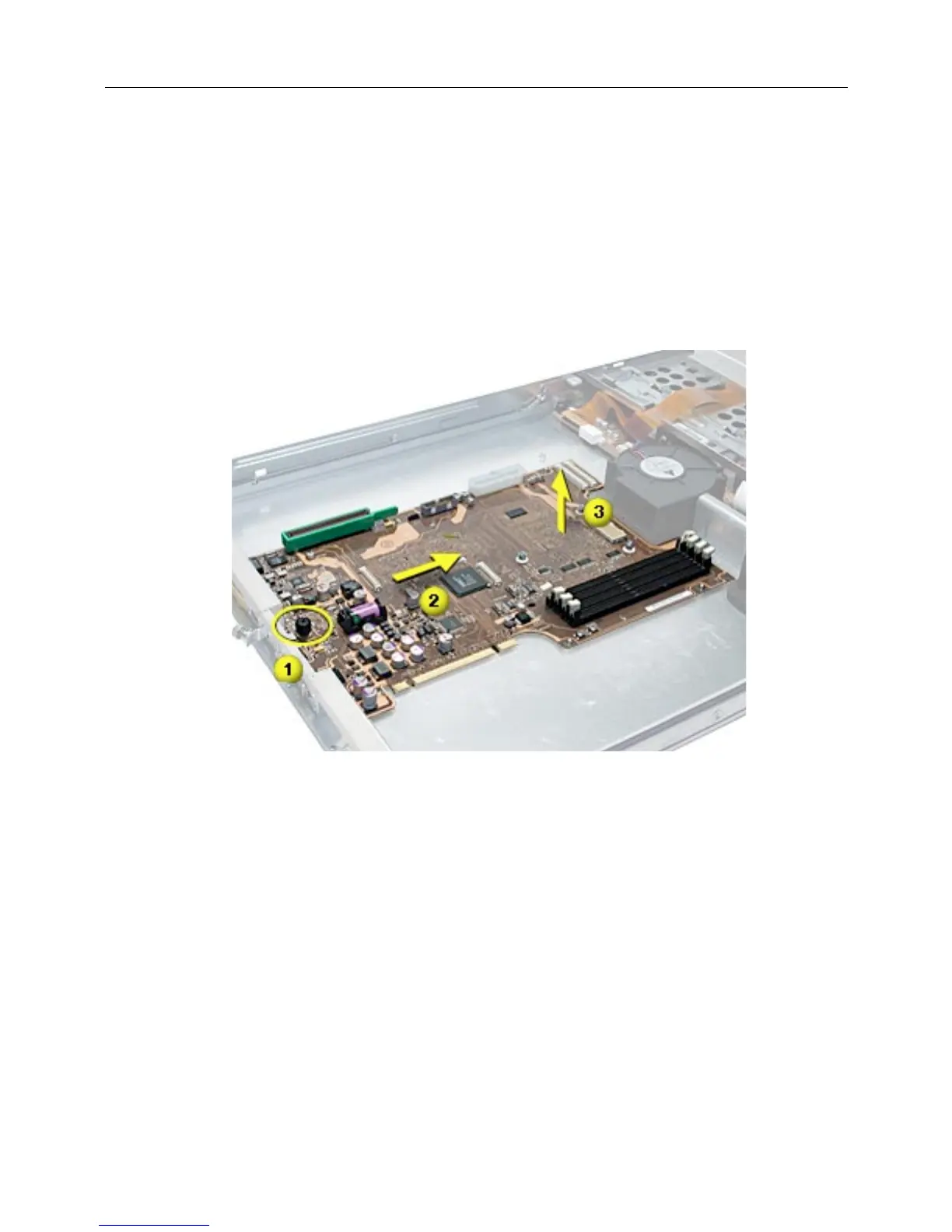

Figure 13
