Apple Logic Board - Heatsink and Processor, Version 2

Xserve Logic Board - 16
Heatsink and Processor, Version 2
1. Insert the threaded end of one of the processor installation guides into the logic board
standoff on the right side of the processor connector. Twist the guide until it screws
into place. (Figure 20)
2. Insert the second processor installation guide into the standoff on the left side of the
processor connector and twist until the guide screws into place.

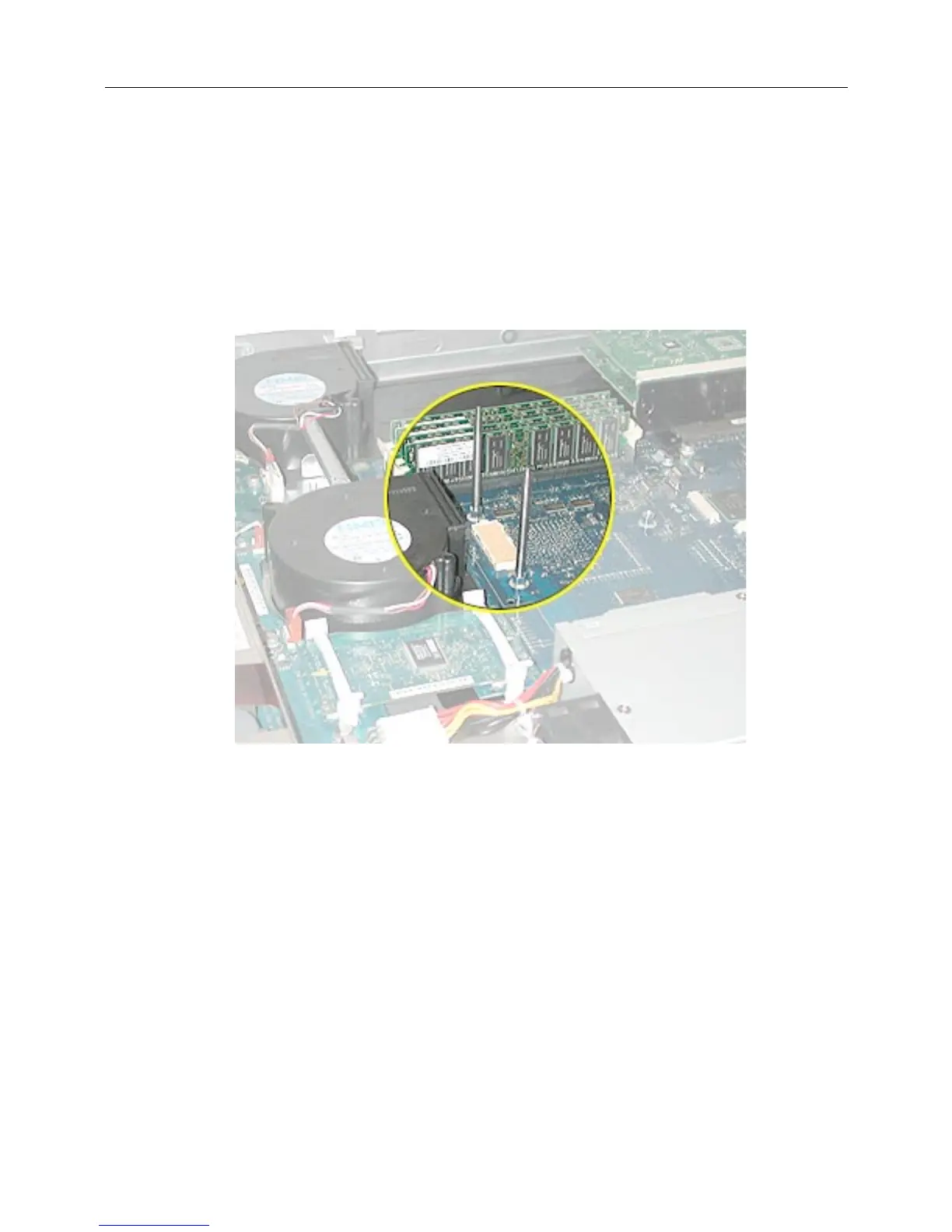

Figure 20
