MacBook Pro (13-inch) General Troubleshooting — Functional Overview 22
2010-09-14
Functional Overview

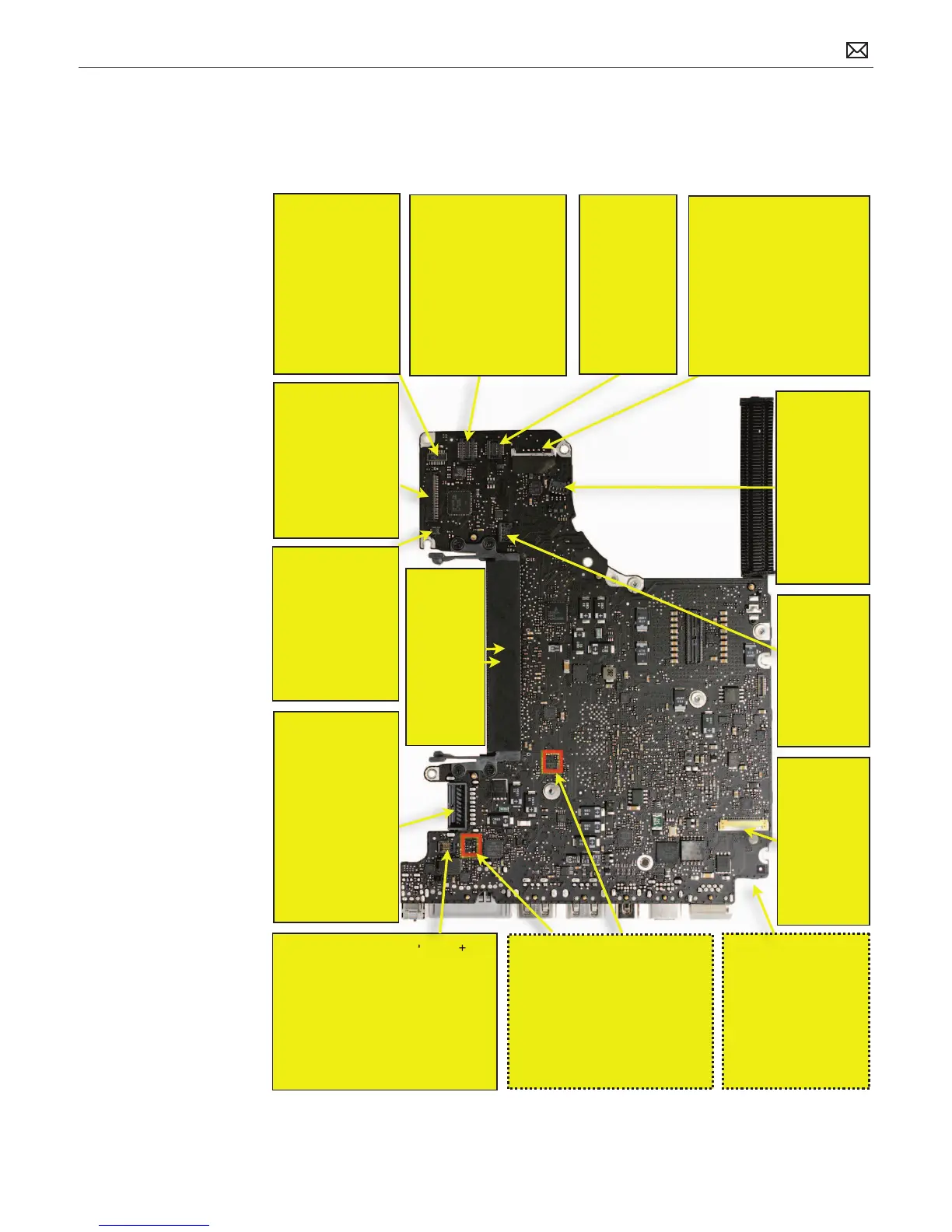

Refer to this diagram for symptoms related to logic board connectors.
To rotate this page in Preview for easier viewing, go to Tools menu and choose “Rotate Left”.
Battery Indicator LEDs
+ Battery Level button
+ Magnetic Sleep
Sensor:
- no battery level while
charging
no battery level shown
when button pressed
- no sleep when
clamshell closed,
- no video on internal
display (sleep sensor
stuck)
MagSafe Connector
(underneath logic
board):
- no Power ON
- no Battery charge
- no LED light from
MagSafe connector
Ram:
- no boot,
- freezes or kernel panic
- video artifacts
Right Speaker + Subwoofer:
- no sound from right speaker
or subwoofer
- distorted right or center sound
Fan :
- intermittent shutdown
- freezes
- fan running at full
speed
LCD + Backlight:
- no internal LCD video
- no internal LCD backlight
Right Clutch Camera
Cable, with connections to
AirPort, Bluetooth, Camera
and Ambient Light Sensor:
- failing to communicate with
any of these devices
- no keyboard backlight or
display not dimming in low
light while ALS is covered
- no startup (if shorted Airport
cable)
Sata Optical Drive:
- no Optical Drive seen in
System Profiler,
- no startup possible from
bootable optical media
Sata Hard Drive
+ Sleep LED
+ Infrared (IR) Sensor:
- no HDD visible in system
profiler
- no sleep led status
- no infrared reception
- no power on (if shorting
SMC)
Trackpad + Trackpad
Button + Trackpad Thermal
Sensor:
- no cursor movement,
- no click action
- unit running slow (missing
trackpad sensor input)
Keyboard
+ Power ON Button:
- no power on with
keyboard
- dead keys
Keyboard Backlight:
- no keyboard backlight
Battery:
- not running from battery only
- no power on (if incorrect power
adapter is used)
- no battery seen in menubar
- fan running faster (high
temperature from battery sensor)
Connectors located on
the other side of the
logic board:
Left Speaker
- no left sound,
- distorted left sound
Microphone
- no input level from
Internal Microphone
sound input
