MacBook (13-inch) Take Apart — AirPort Extreme Card 50

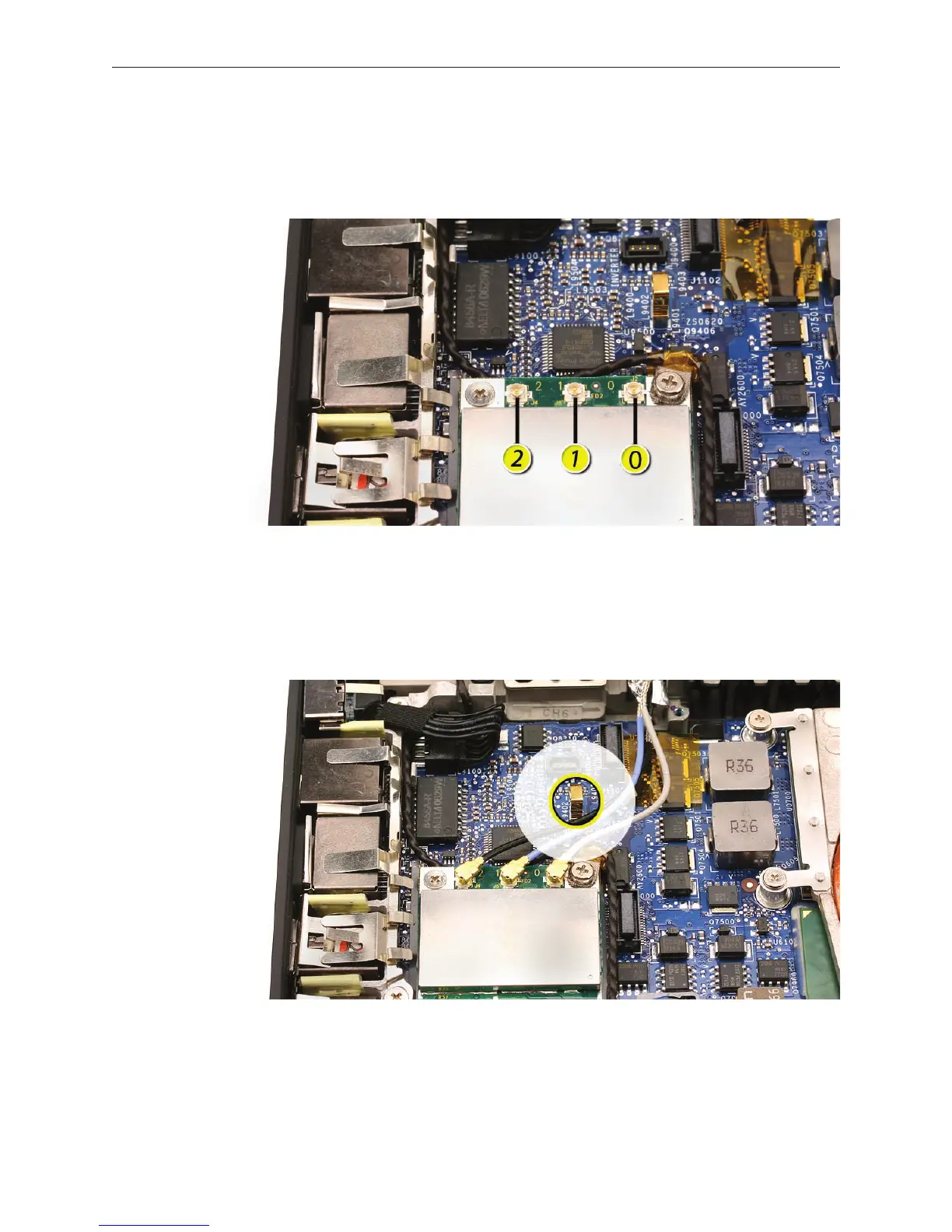

Late 2006 Model Replacement Note: Notice that the AirPort Card has numbers 2, 1, and 0
printed on the card. The numbers correspond to the antenna cable colors where 2 = black,
1 = blue, and 0 = gray.
Replacement Caution: When connecting the AirPort antenna cables, make sure the cables
do not obstruct the gold-colored spring on the logic board. If one of the cables were caught
in the folds of the spring, the cable or spring could be damaged when the top case was
installed.
