Pos. Description Type Quantity Torque Notes
9 TSPEI screw fixing bearing stop
plates
M6x16 2 10 Nm (7.38 lb ft) Loct. 243
10 Stud bolt M6 1 Bring to 33mm from the
surface
Loct. 648
11 SHC screw M6x40 1 10 Nm (7.38 lb ft) Lubricate the head
and under the head.
12 Special nut - 1 10 Nm (7.38 lb ft) -
13 Flanged nut M10 6 15 + 20 Nm (11.06 +
14.75 lb ft) + 60° + 60°
Lubricate the head
and under the head.
Use the sequence:
1) Pre-tighten to 15
Nm (11.06 lb ft); 2)
Tighten to 20 Nm
(14.75 lb ft); 3)
Tighten applying an
angle of 60° +/- 2; 4)
Repeat the opera-
tion for another 60°
+/- 2
- Screw fastening ground cable to the
engine
M6 2 6 Nm (4.43 lb ft) -

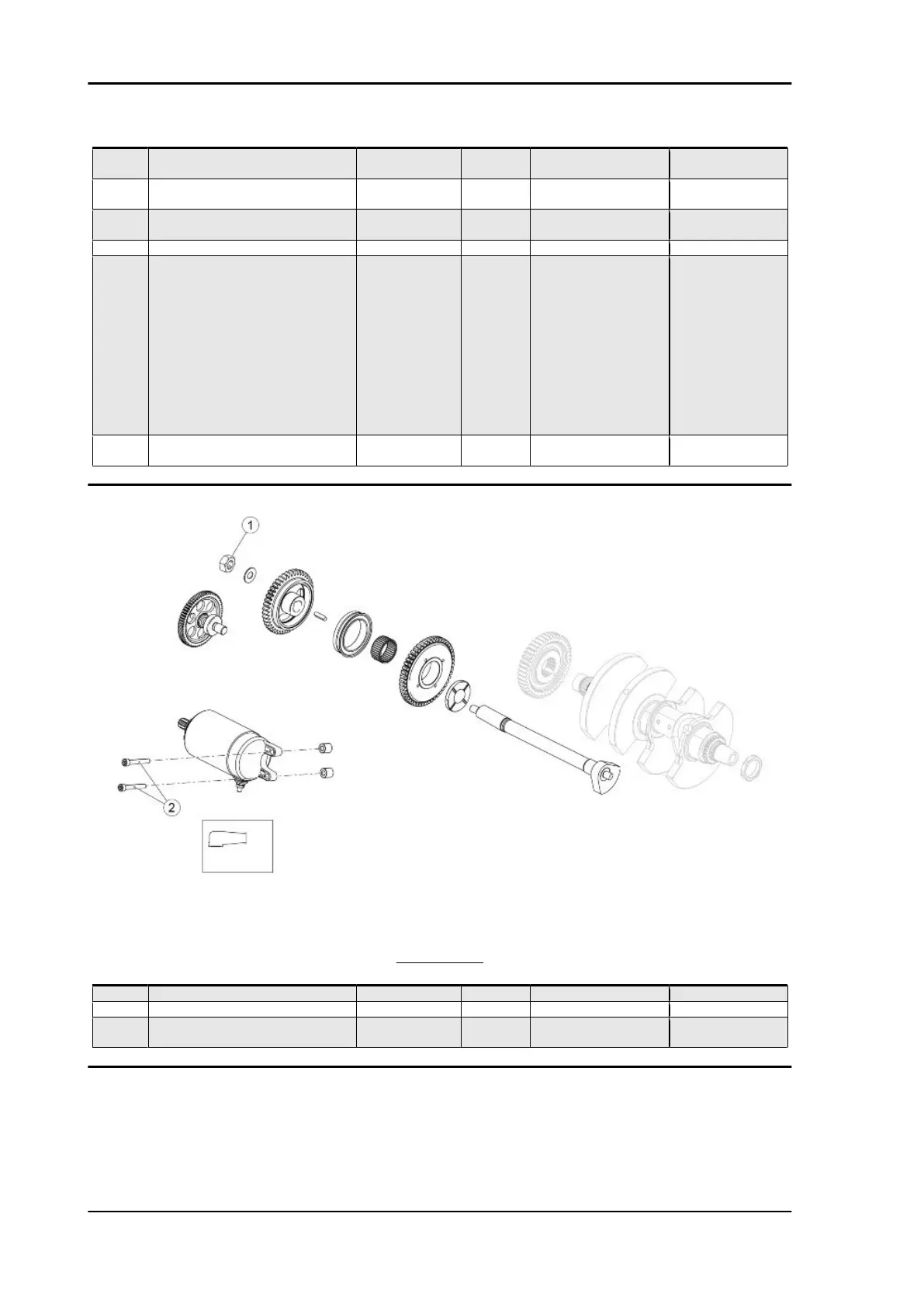

IGNITION UNIT
Pos. Description Type Quantity Torque Notes
1 Hex headed nut cl.10 type 2 iso 8674 M10x1 1 50 Nm (36.88 lb ft) Loct. 243
2 Starter motor SHC fastener screw M6x40 2 10 Nm (7.38 lb ft) -
- Screw fastening cables to the starter
motor
M6 1 6 Nm (4.43 lb ft) -
Engine RSV4 RR-RF
ENG - 346
